Ignition and Start Switch Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

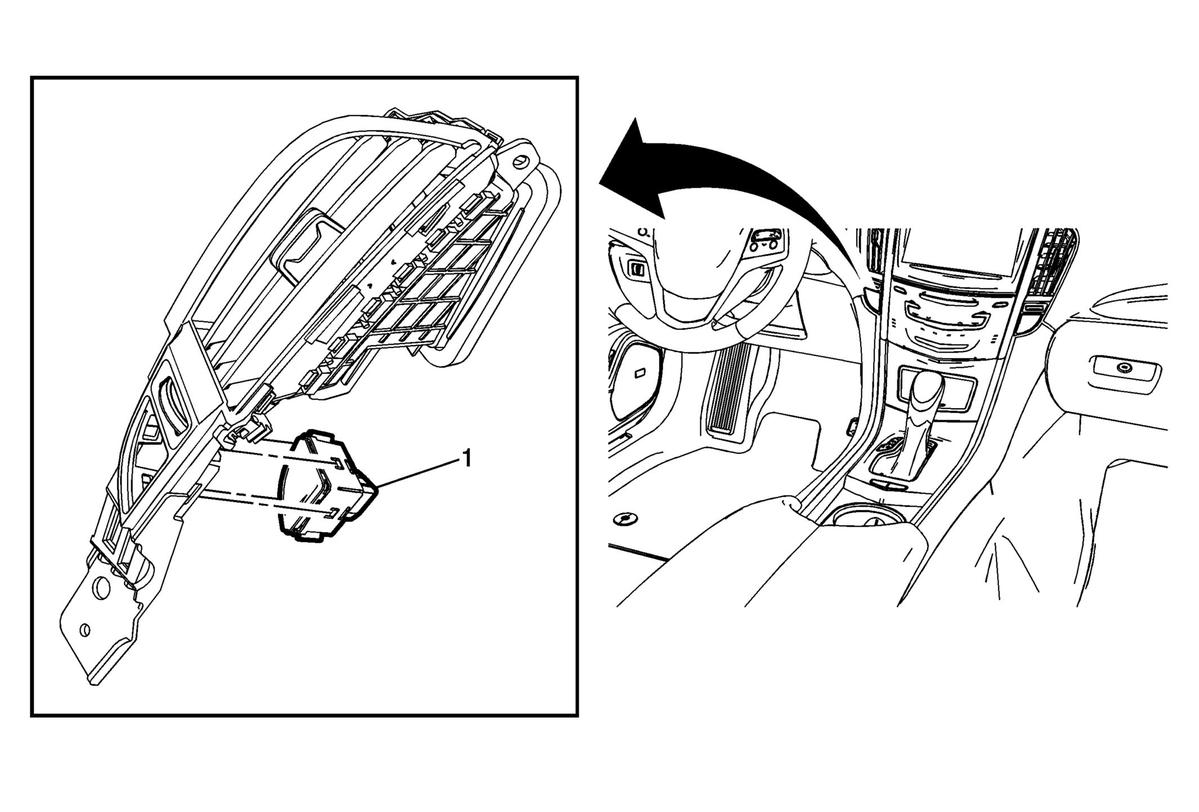

Fig 1: Ignition and Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Center Air Outlet Replacement - Left Side
1	Ignition and Start Switch Procedure Disconnect the electrical connector. Release the retaining tabs and remove the ignition and start switch from the trim piece.

Callout

Component Name

Preliminary Procedure
Instrument Panel Center Air Outlet Replacement - Left Side

Ignition and Start Switch

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the ignition and start switch from the trim piece.
