Sun Load Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

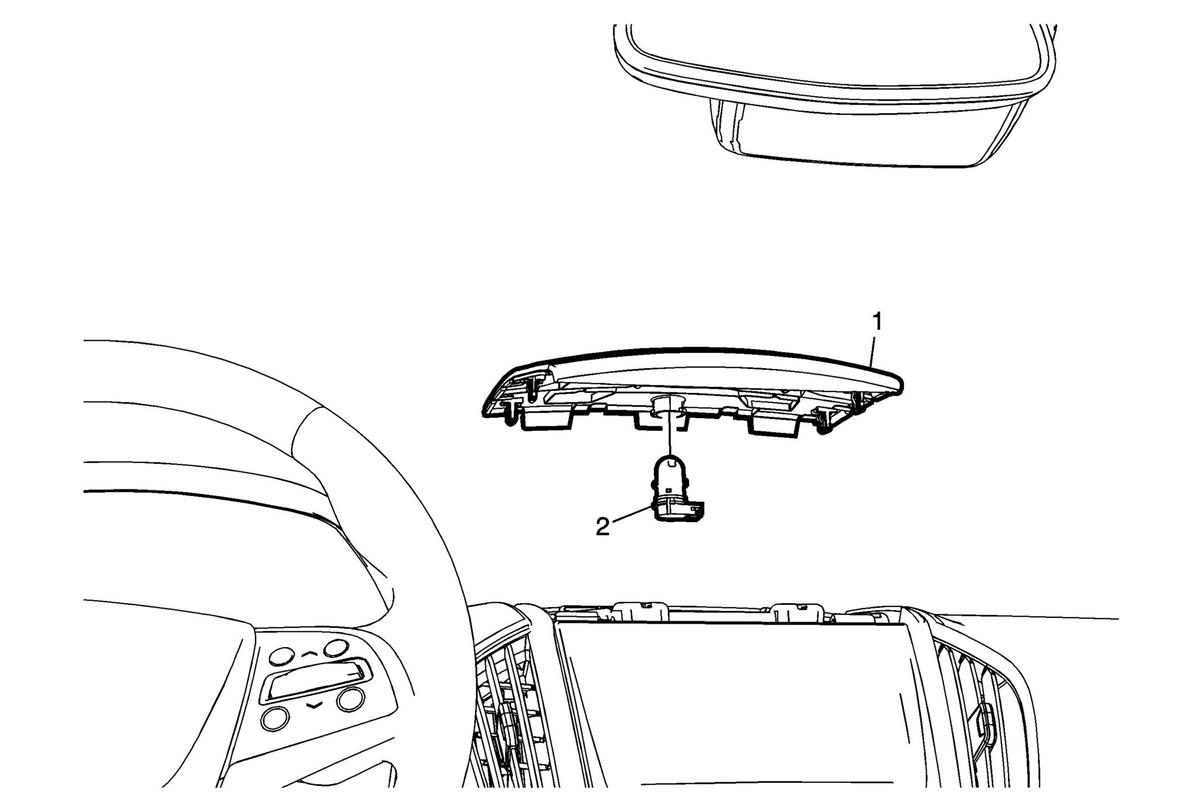

Fig 1: Sun Load Temperature Sensor & Speaker Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Front Center Speaker Grille Procedure Refer to Radio Front Center Speaker Grille Replacement .
2	Sun Load Temperature Sensor Procedure Disconnect the electrical sun load temperature sensor connector. Turn the sun load temperature sensor quarter of a turn counter clockwise to remove.

Callout

Component Name

Radio Front Center Speaker Grille
Procedure
Refer to Radio Front Center Speaker Grille Replacement .

Sun Load Temperature Sensor

Procedure

Disconnect the electrical sun load temperature sensor connector.
Turn the sun load temperature sensor quarter of a turn counter clockwise to remove.
