3rd Row Seat Belt Buckle Replacement

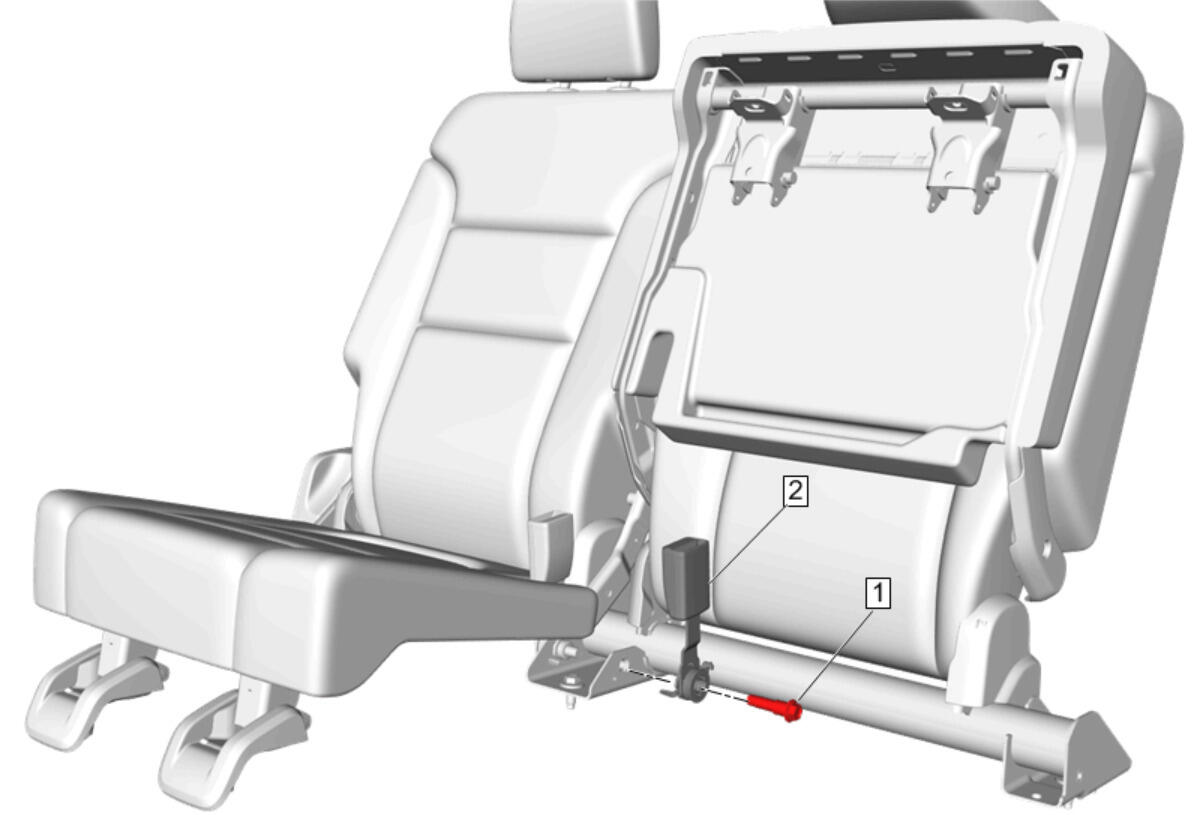

Fig 1: 3rd Row Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the 3rd row seat front bolts and lift the seat cushion. 3rd Row Seat Removal and Installation
1	3rd Row Seat Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	3rd Row Seat Belt Buckle
