Installation Procedure

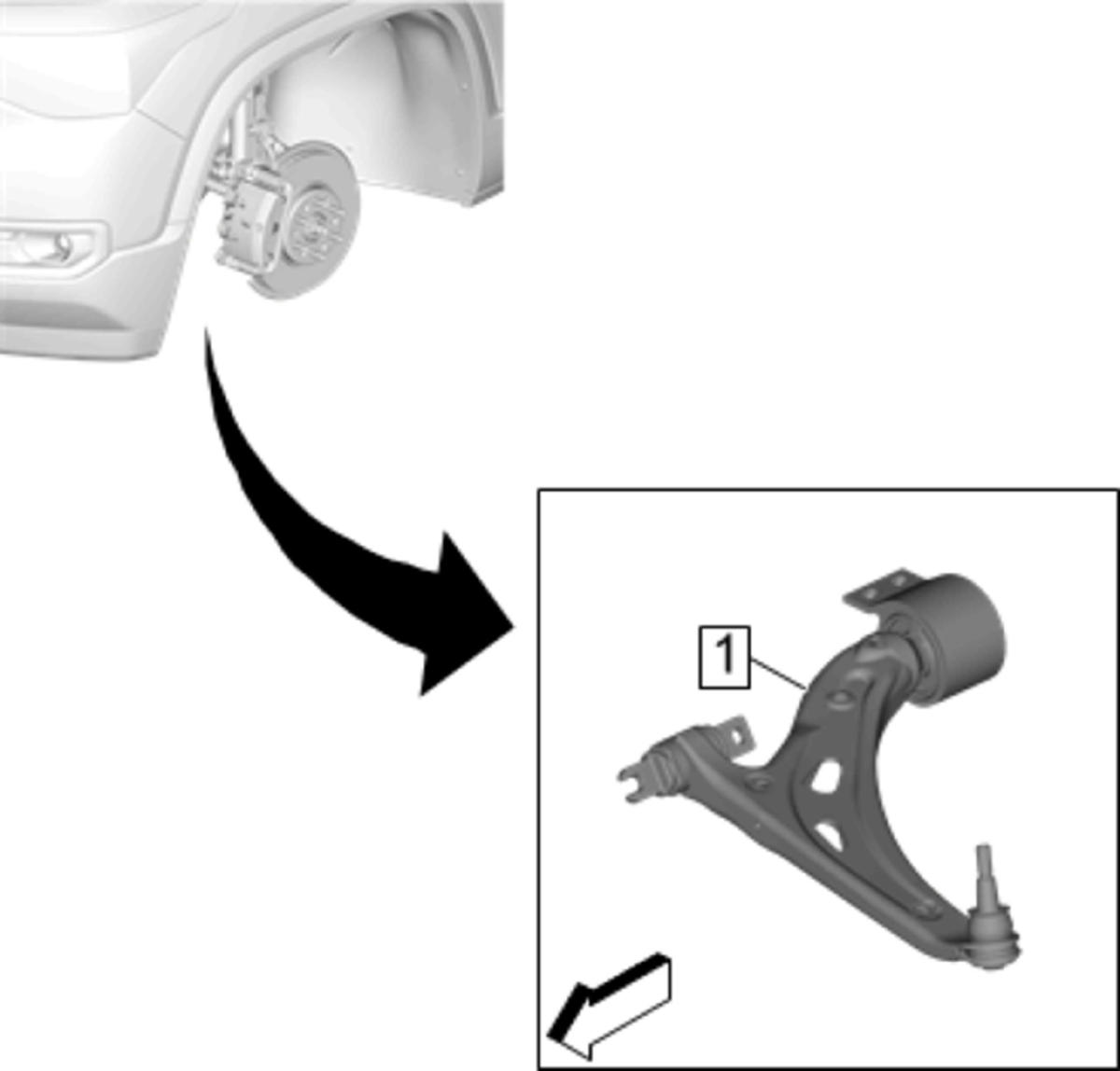

Fig 1: Front Lower Control Arm

Courtesy of GENERAL MOTORS COMPANY

Position the front lower control arm (1) on the vehicle.

Fig 2: Front Lower Control Arm Rear Nuts And Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

Install Front Lower Control Arm Rear Bolts (2) (Qty: 2)
Install NEW bolts.
Install, but do NOT tighten Front Lower Control Arm Rear Nuts (1) (Qty: 2)

Fig 3: Front Lower Control Arm Front Bolts

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install and tighten Front Lower Control Arm Front Bolts (1) (Qty: 4) to:
Install NEW bolts.

Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90-105 degrees)

Fig 4: Front Lower Control Arm Rear Nuts And Bolts

Courtesy of GENERAL MOTORS COMPANY

Tighten Front Lower Control Arm Rear Bolts (2) (Qty: 2) to:
Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90-105 degrees)

Fig 5: Front Lower Control Arm Ball Stud Nut

Courtesy of GENERAL MOTORS COMPANY

Install and tighten Front Lower Control Arm Ball Stud Nut (1)
Tighten
1. First Pass: 40 N.m (30 lb ft)
2. Final Pass: (100-115 degrees)

Fig 6: Front Suspension 4 Corner Leveling System Position Sensor

Courtesy of GENERAL MOTORS COMPANY

{If equipped}, Install Front Suspension 4 Corner Leveling System Position Sensor (1) @ Front Lower Control Arm. Refer to Front Suspension 4 Corner Leveling System Position Sensor Replacement
Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
Measure and adjust the wheel alignment. Refer to Wheel Alignment Measurement
