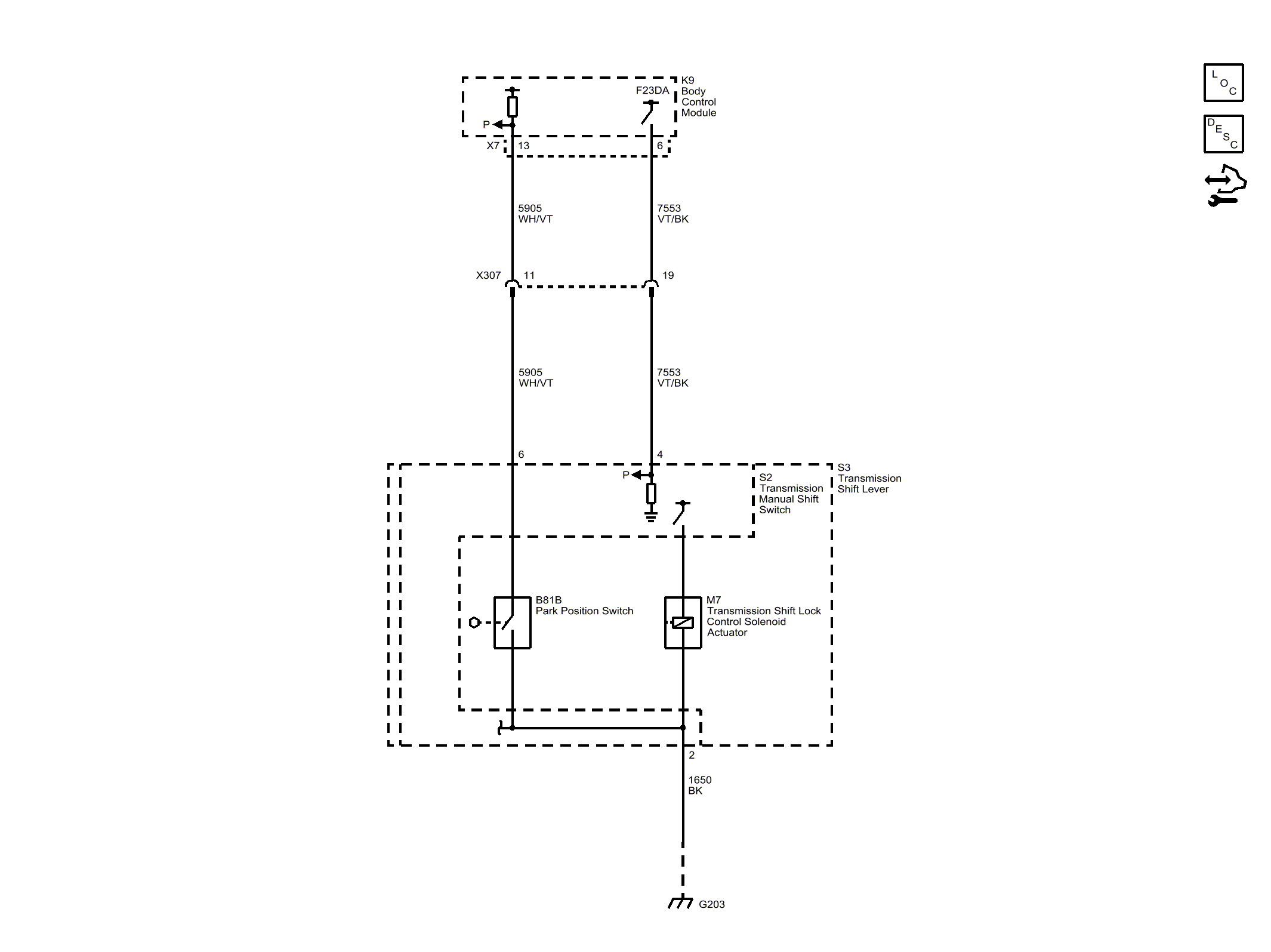

Home › GMC › 2017 › Acadia SL › Repair and Diagnosis › Transmission › Automatic Trans › Shift Lock Control System › Schematic Wiring Diagrams › Shift Lock Control Wiring Schematics › Shift Lock Control
