Installation Procedure

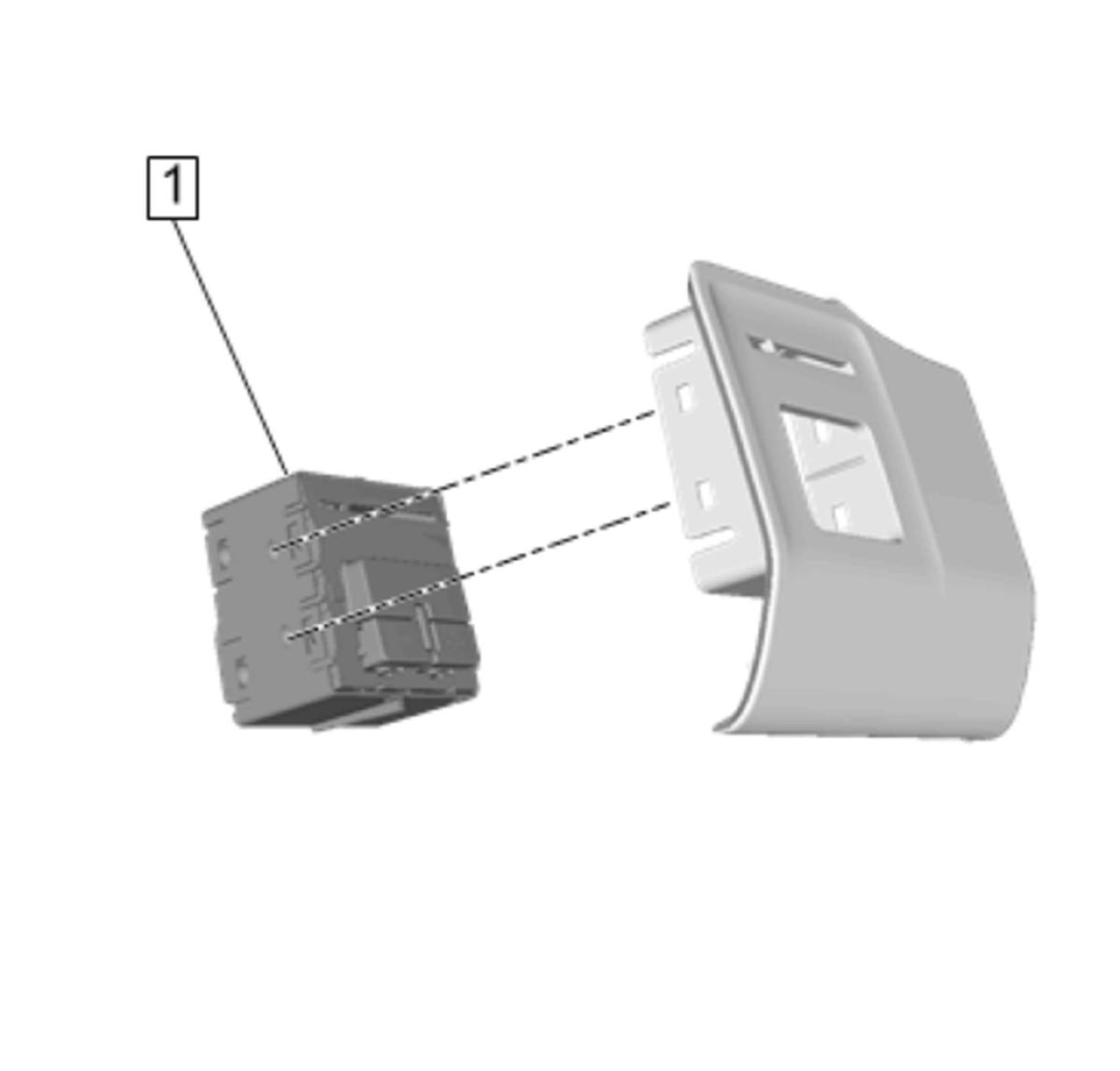

    Fig 1: Trailer Brake Control Switch
    GM4500356Courtesy of GENERAL MOTORS COMPANY
  1. Install Trailer Brake Control Switch (1)

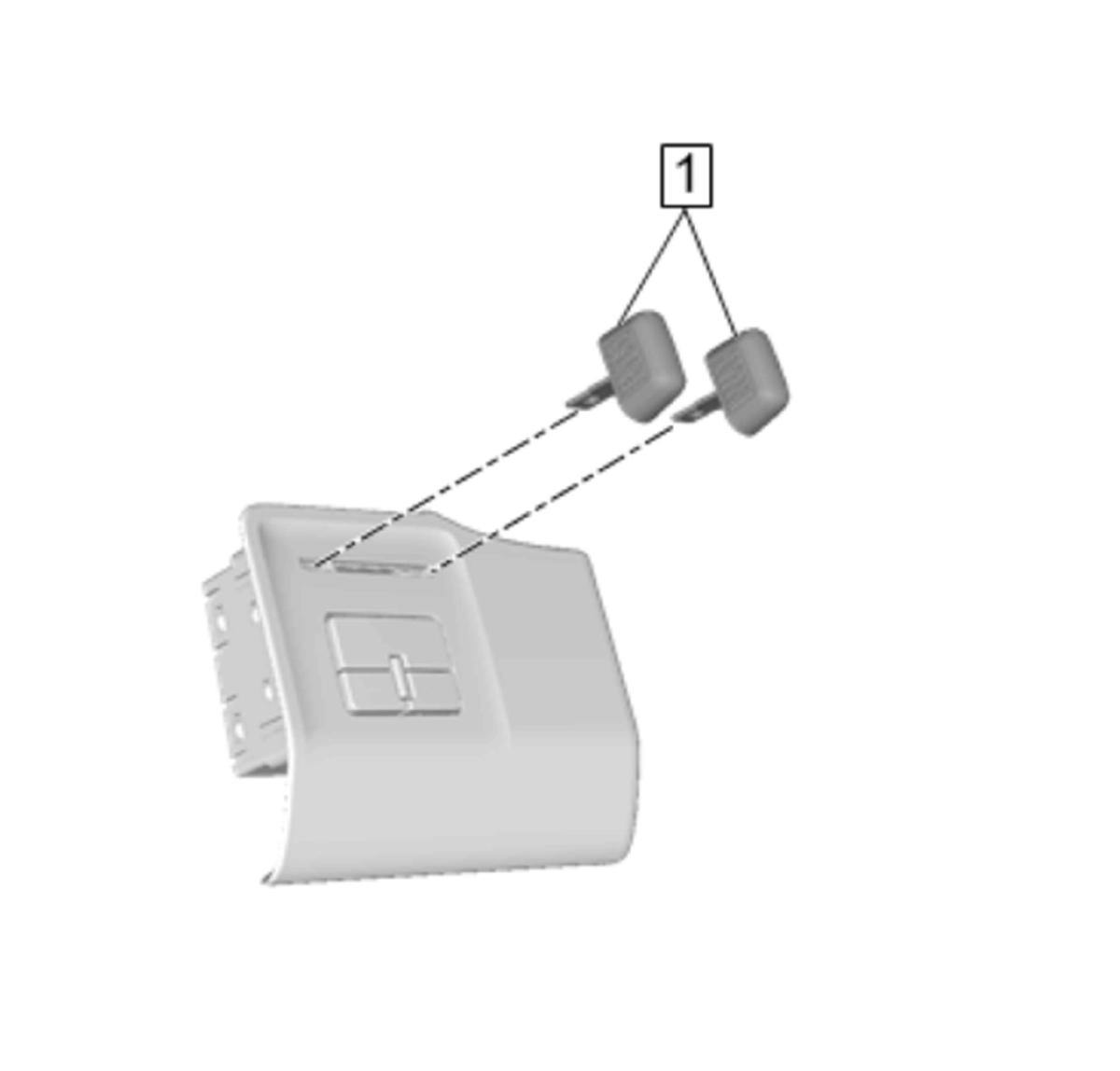

    2. Fig 2: Trailer Brake Control Switch Lever
    GM4500355Courtesy of GENERAL MOTORS COMPANY
  2. Install Trailer Brake Control Switch Lever (1)
  3. Connect Electrical Connector
    4. Fig 3: Instrument Panel Compartment Toll Card Holder
    GM4500354Courtesy of GENERAL MOTORS COMPANY
  4. Install Instrument Panel Compartment Toll Card Holder (1)
