Rear Side Door Window Regulator Replacement

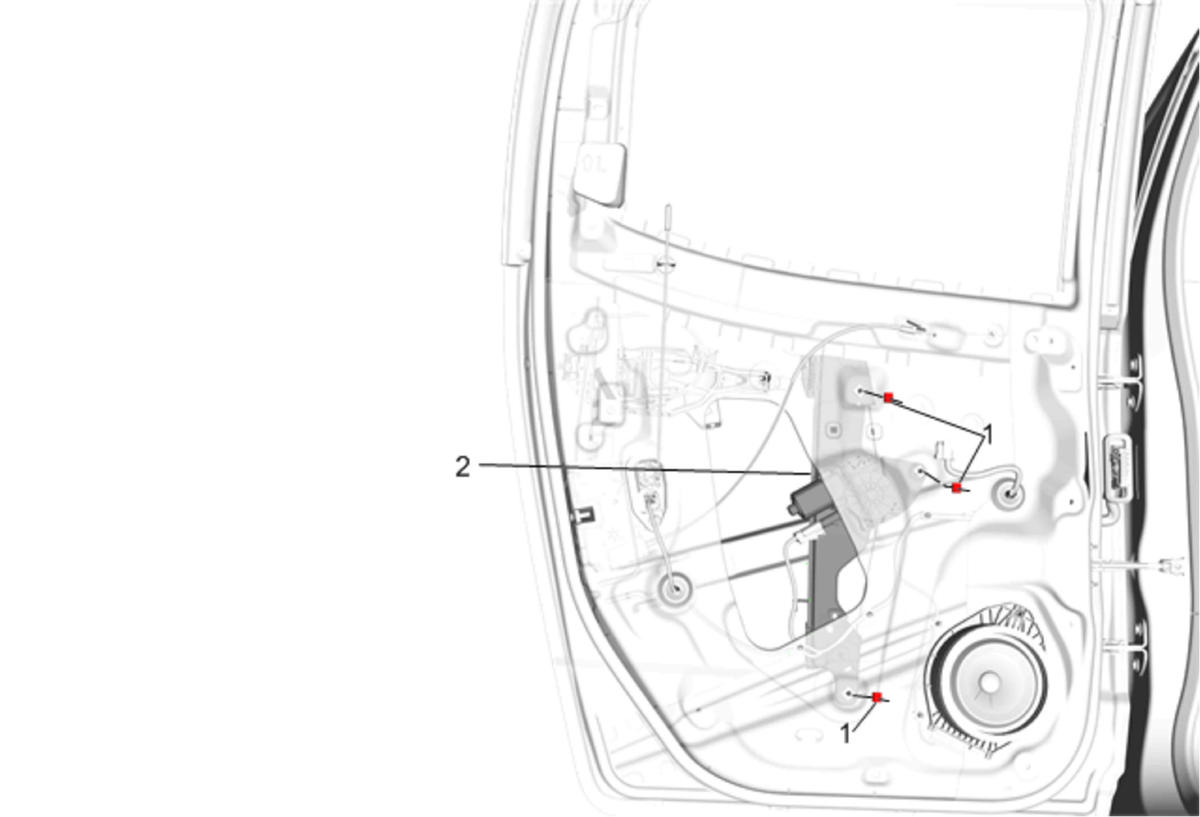

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement (Crew Cab)Rear Side Door Trim Replacement (Extended Cab) . Remove the water deflector.
1	Rear Side Door Window Regulator Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Release the rear side door window retainer clip. Refer to Rear Side Door Window Replacement (Crew Cab) Rear Side Door Window Replacement (Extended Cab) . After detaching the window from the regulator, manually move the window to the full up position and tape to the frame. Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Procedures Disconnect the electrical connector. Transfer all necessary components. NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Regulator Fastener (Qty: 3)

CAUTION:

Procedures

Release the rear side door window retainer clip. Refer to Rear Side Door Window Replacement (Crew Cab) Rear Side Door Window Replacement (Extended Cab) .
After detaching the window from the regulator, manually move the window to the full up position and tape to the frame.

Tighten
11 N.m (97 lb in)

Rear Side Door Window Regulator

Procedures

NOTE:

Inspect the door window for proper operation before installing the door trim.
