Installation Procedure

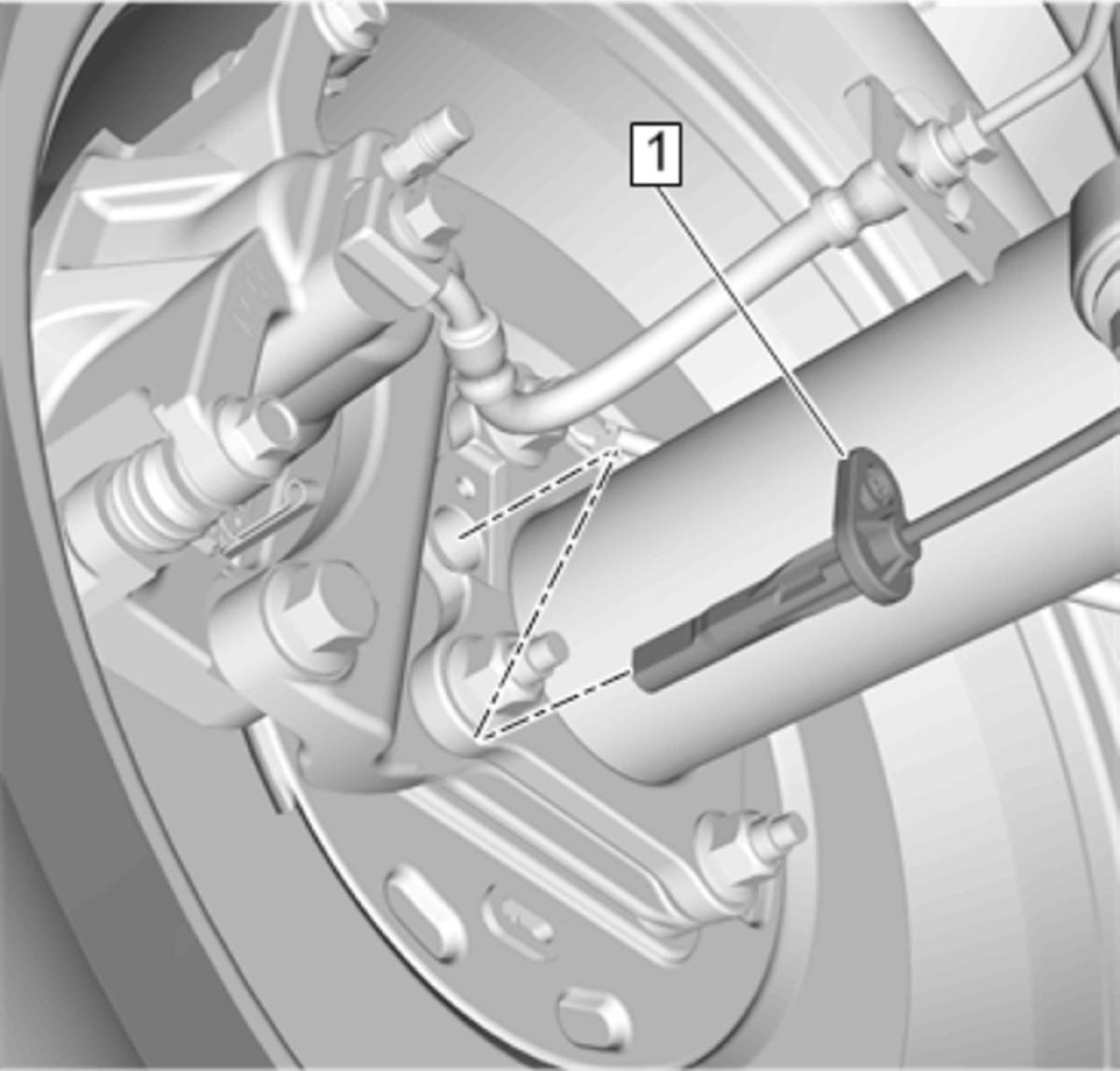

    Fig 1: Rear Wheel Speed Sensor
    GM4774727Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Wheel Speed Sensor (1)

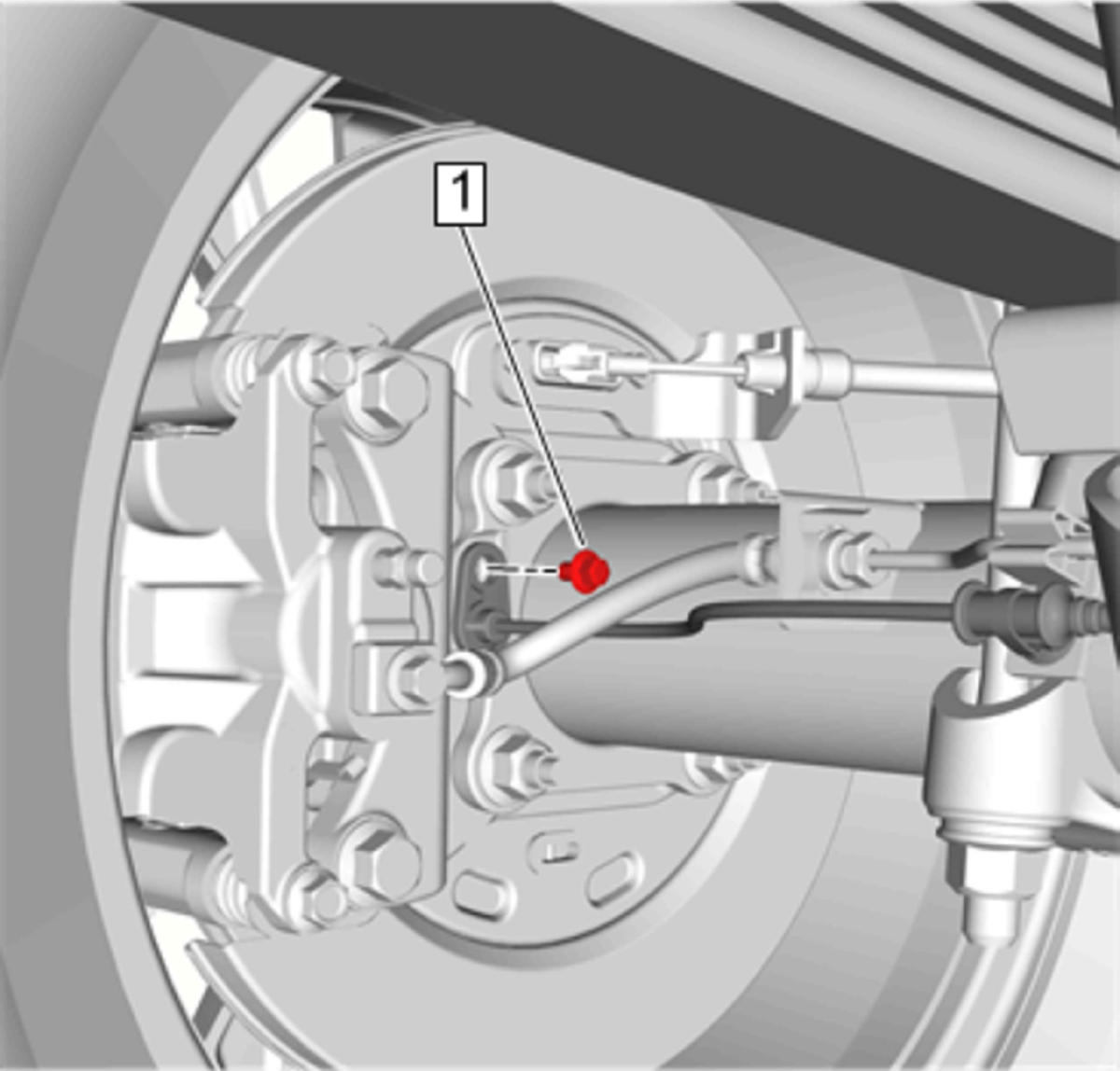

    2. Fig 2: Rear Wheel Speed Sensor Bolt
    GM4774723Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Rear Wheel Speed Sensor Bolt (1) and tighten 9 N.m (80 lb in)

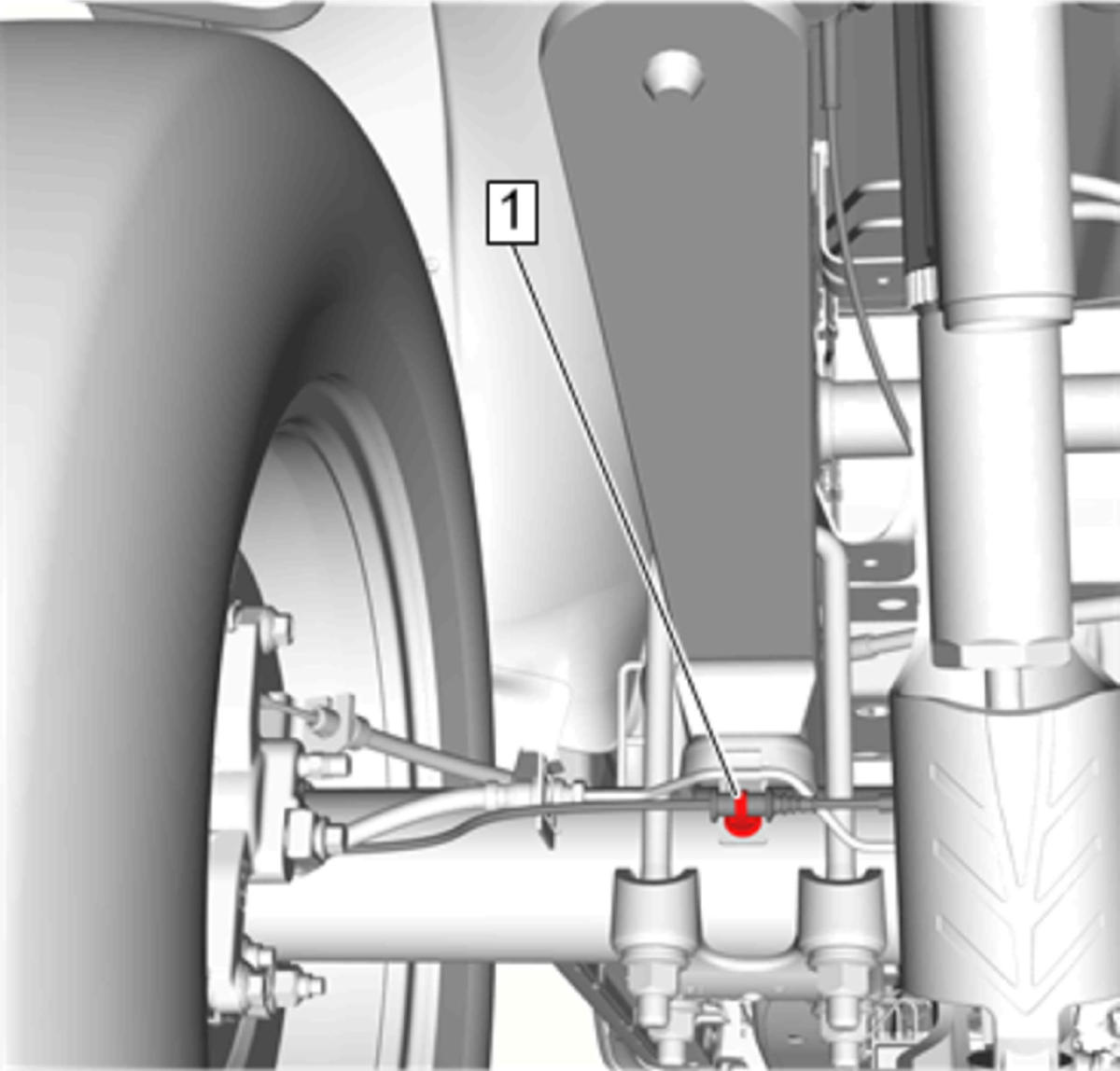

    3. Fig 3: Retainer
    GM4774718Courtesy of GENERAL MOTORS COMPANY
  3. Secure Retainer (1)

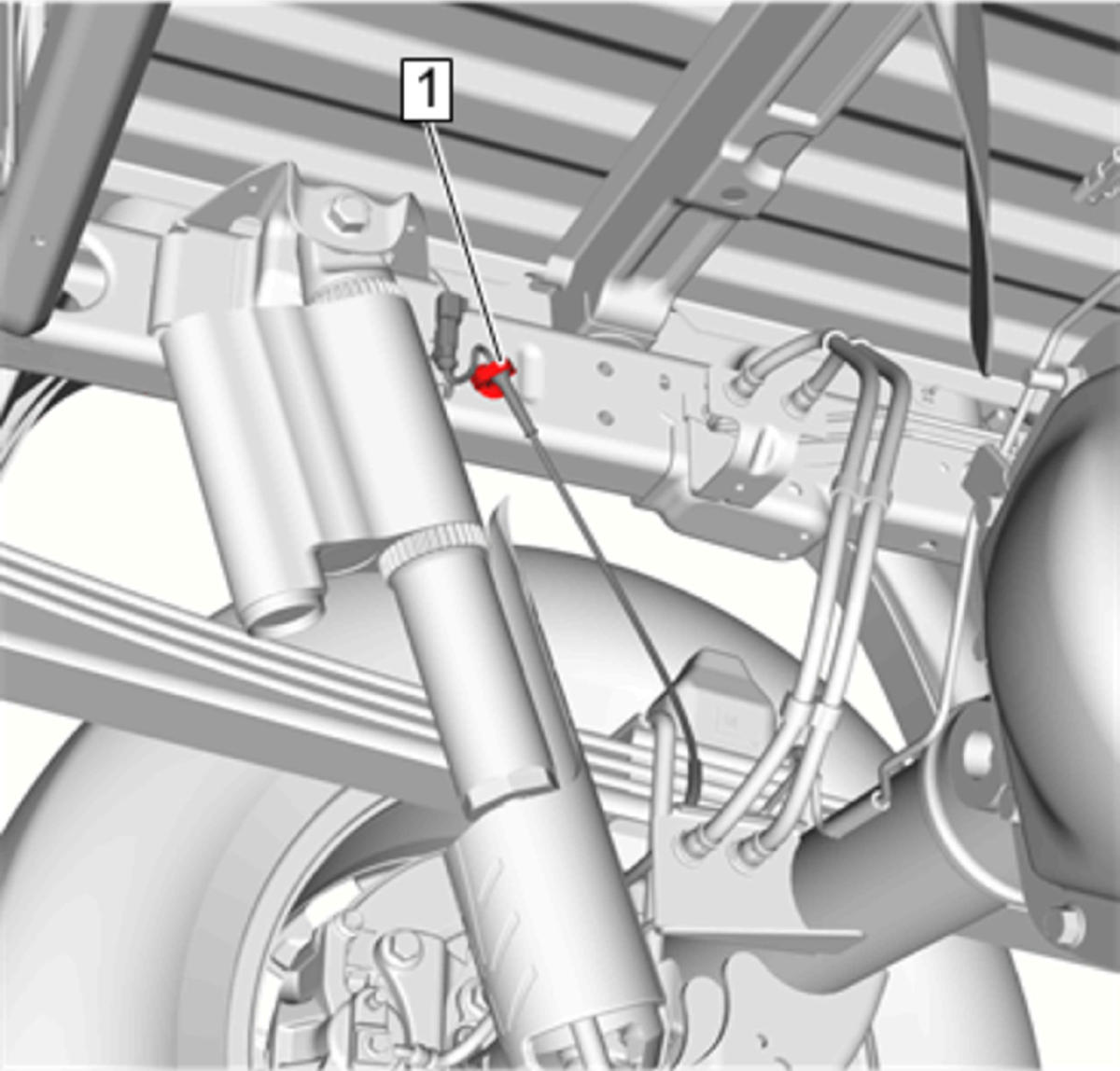

    4. Fig 4: Retainer
    GM4774713Courtesy of GENERAL MOTORS COMPANY
  4. Secure Retainer (1)

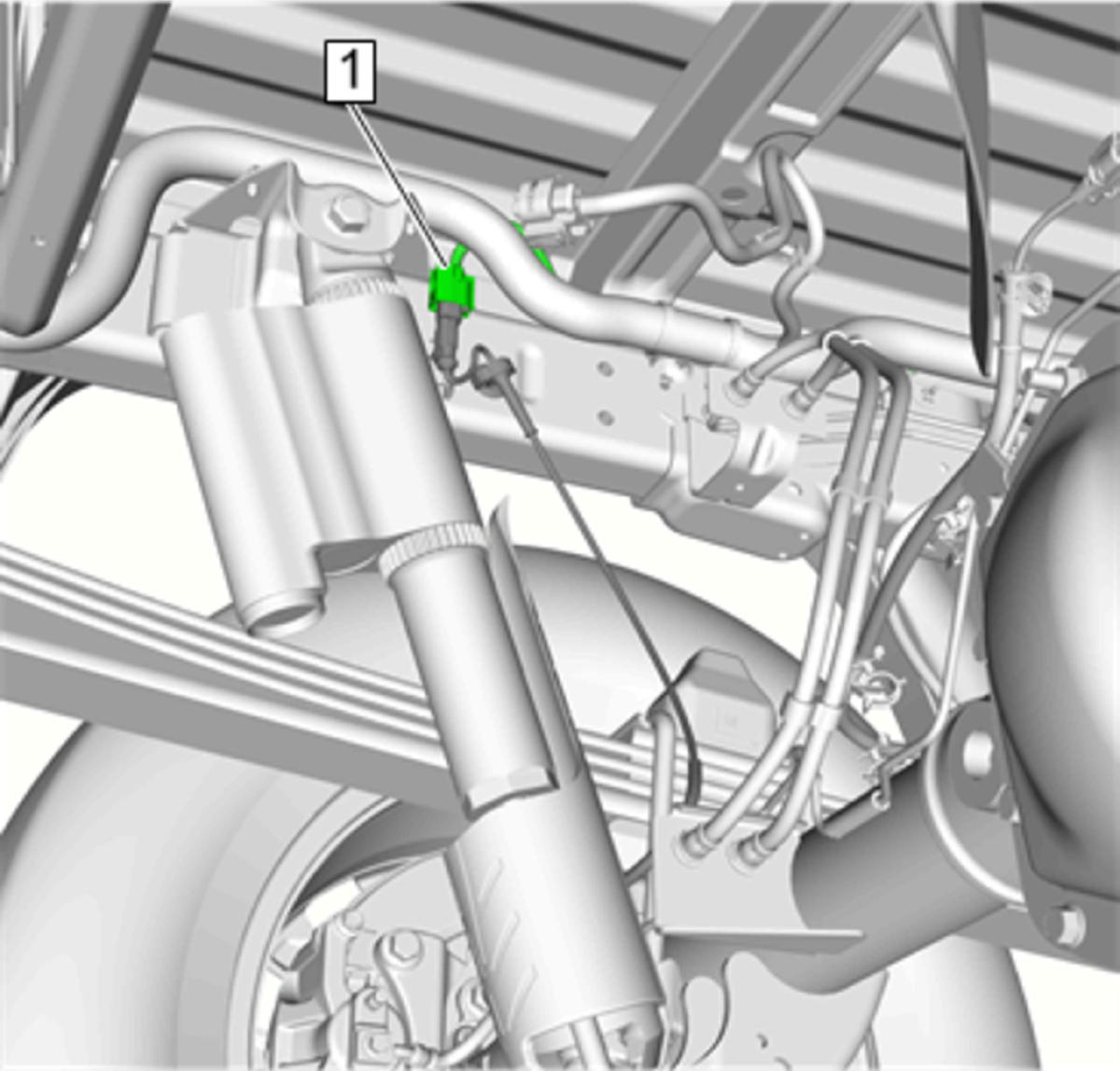

    5. Fig 5: Electrical Connector
    GM4774708Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connector (1) - Connector Reconnection - Wheel Speed Sensor
