Radiator Assembly Components

Radiator Assembly Components

Items
1: K22 Cooling Fan Control Module (LCV/LGZ) K22 Cooling Fan Control Module
2: B203 Radiator Coolant Temperature Sensor (LCV) B203 Radiator Coolant Temperature Sensor

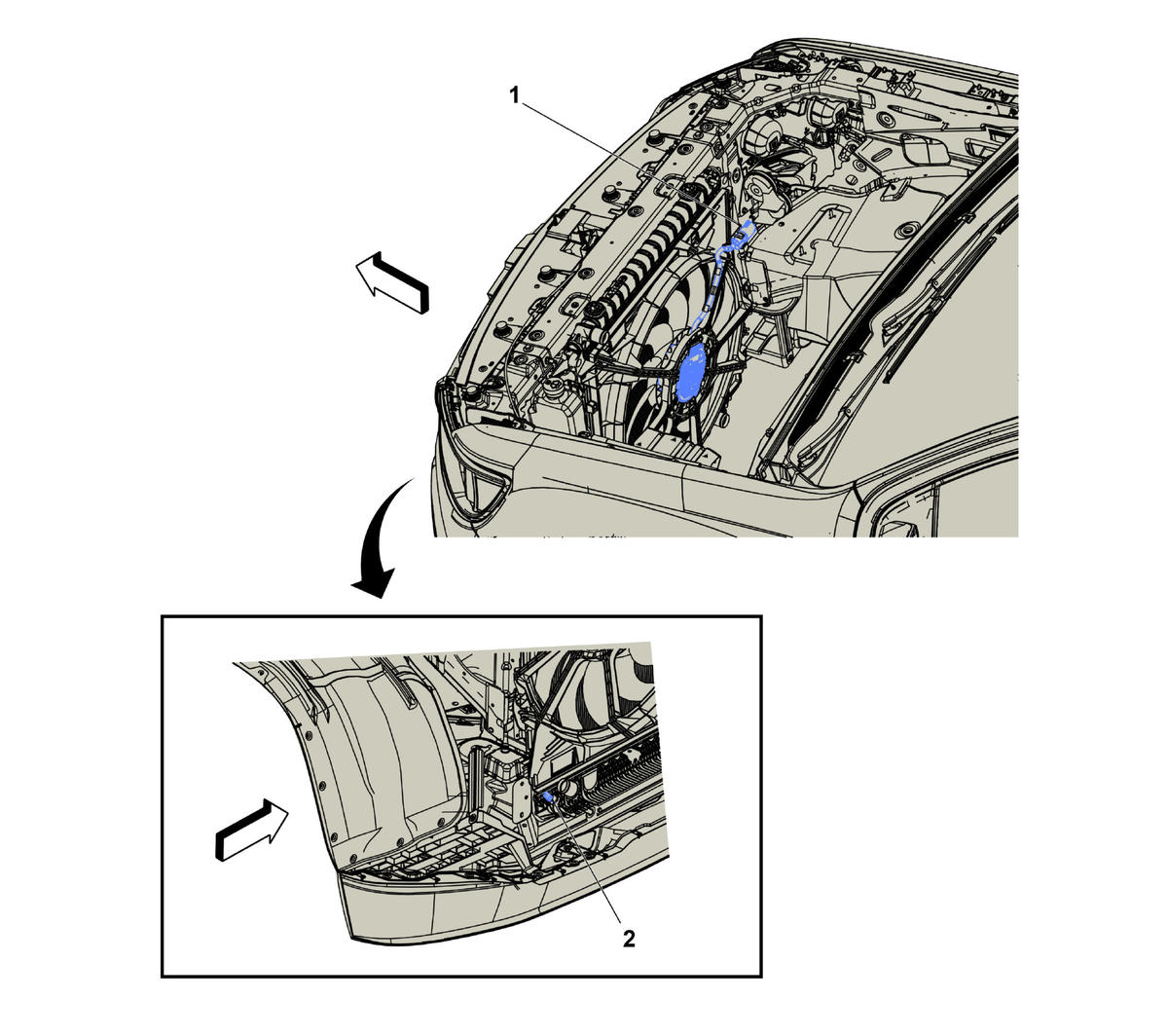

Fig 1: Radiator Assembly Components
GM3924201Courtesy of GENERAL MOTORS COMPANY
