Air Cleaner Element Replacement

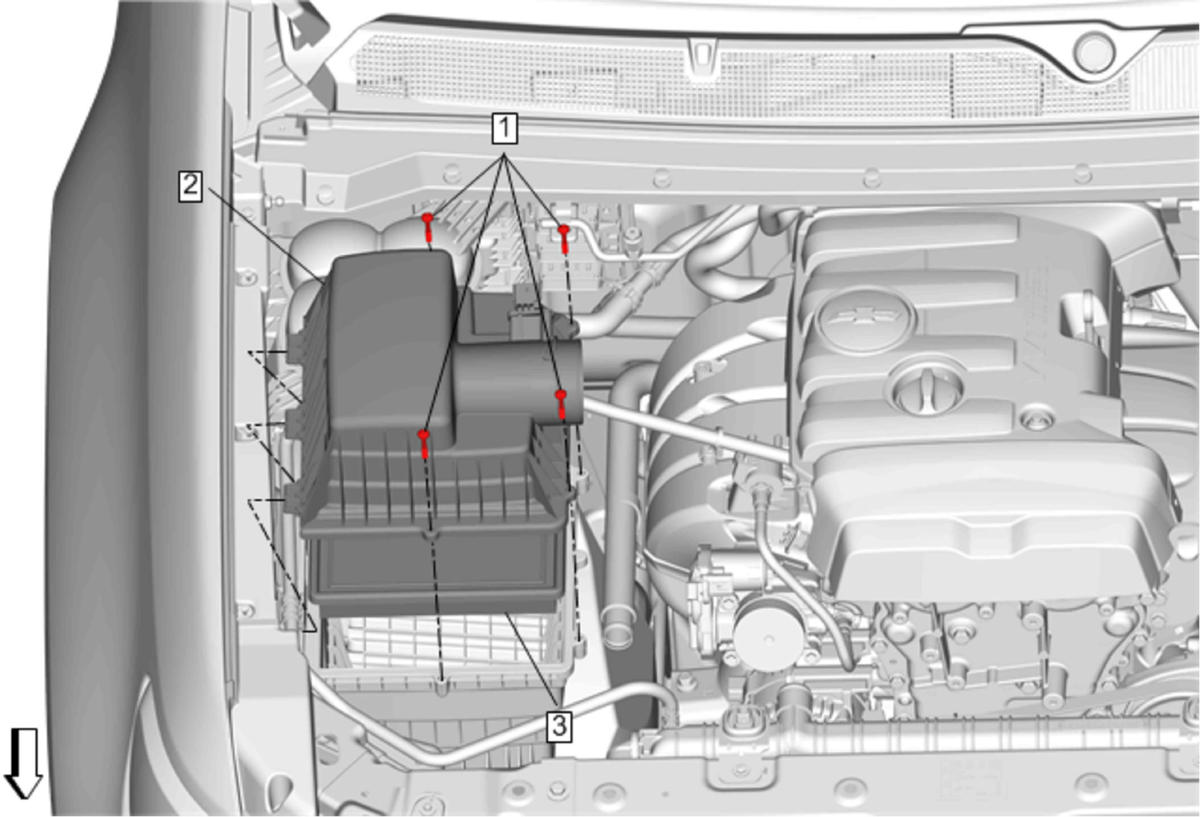

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the mass airflow sensor connector.
1	Air Cleaner Assembly Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Cover
3	Air Cleaner Element
