Fuel Tank Shield Replacement

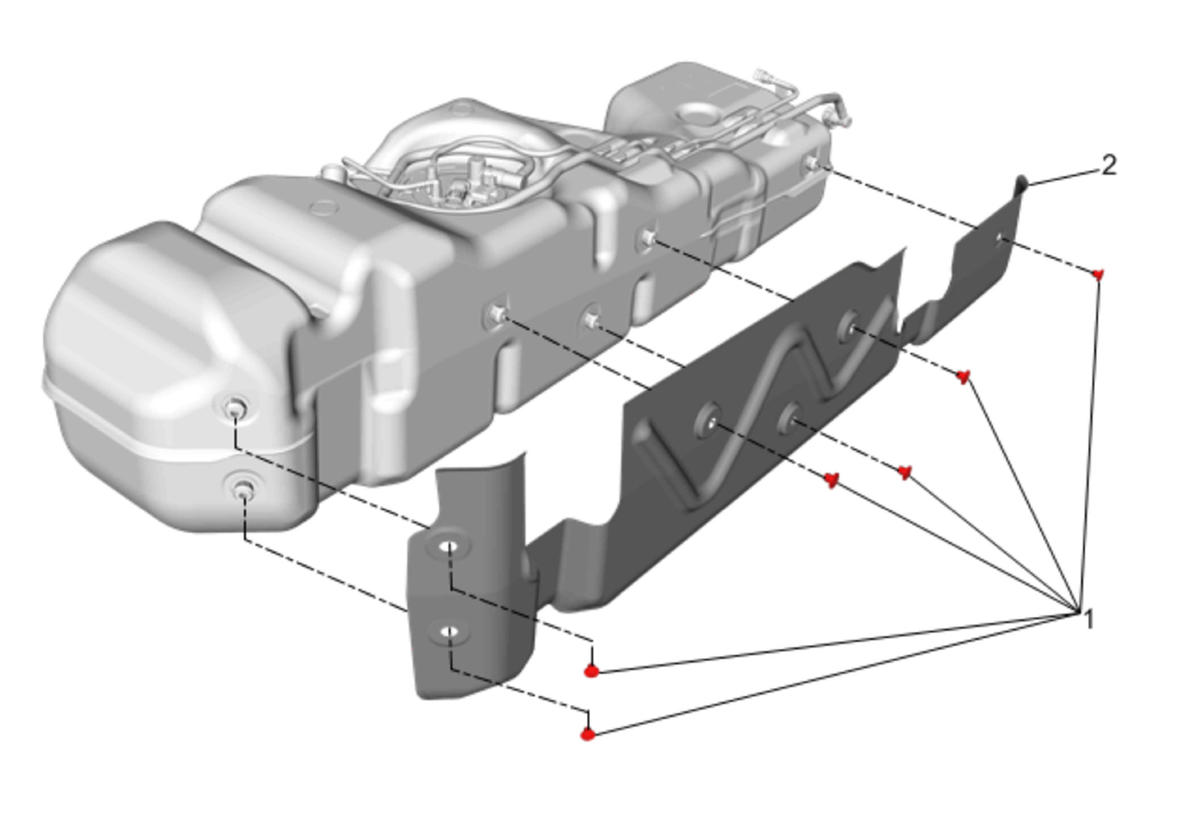

Fig 1: Fuel Tank Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the fuel tank. Refer to Fuel Tank Replacement .
1	Fuel Tank Shield Retainers (Qty: 6) CAUTION: Refer to Fastener Caution .
2	Fuel Tank Shield
