Accessory Wakeup and Communications Enable

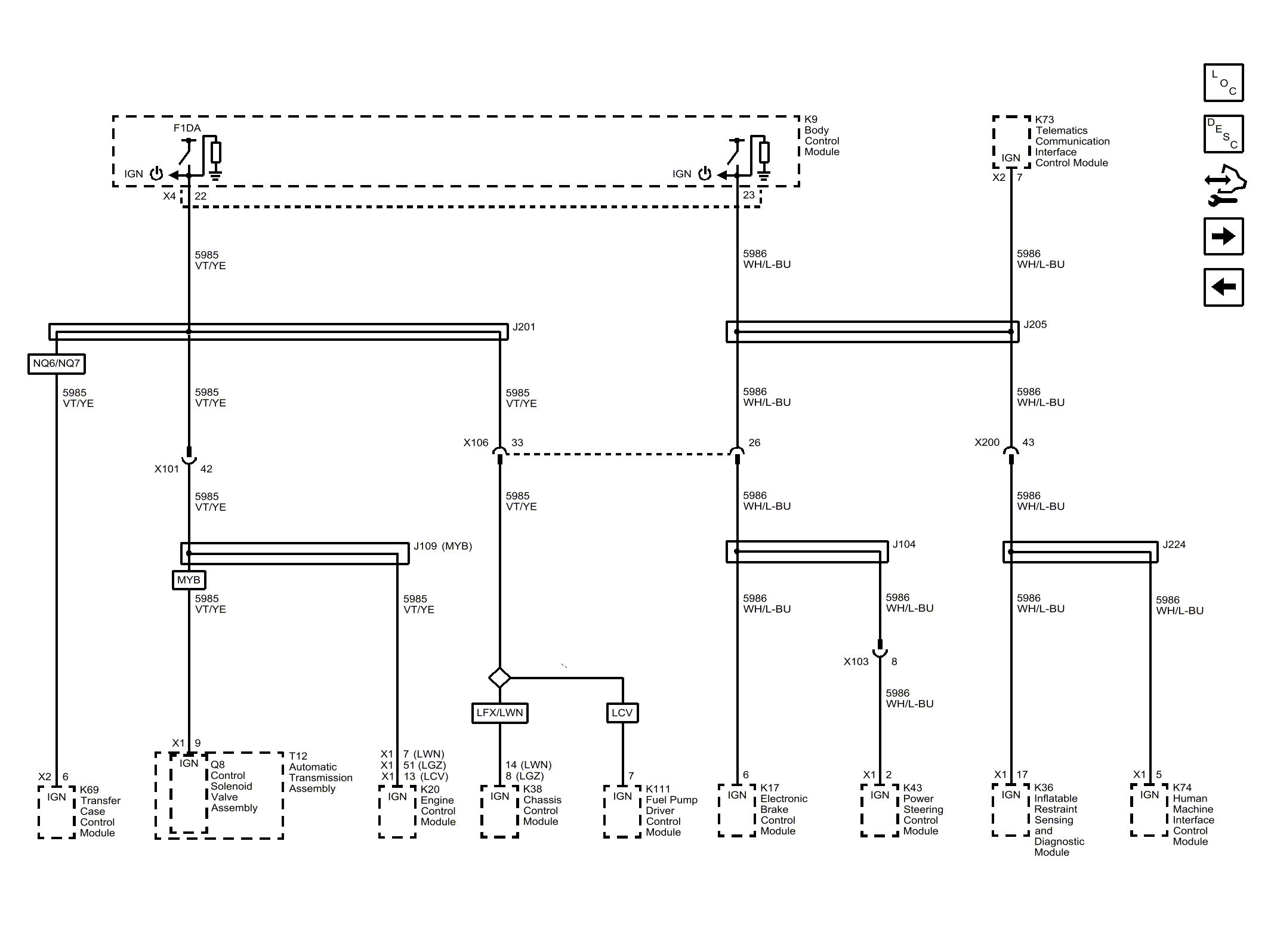

Fig 1: Accessory Wakeup and Communications Enable
GM4507595Courtesy of GENERAL MOTORS COMPANY
