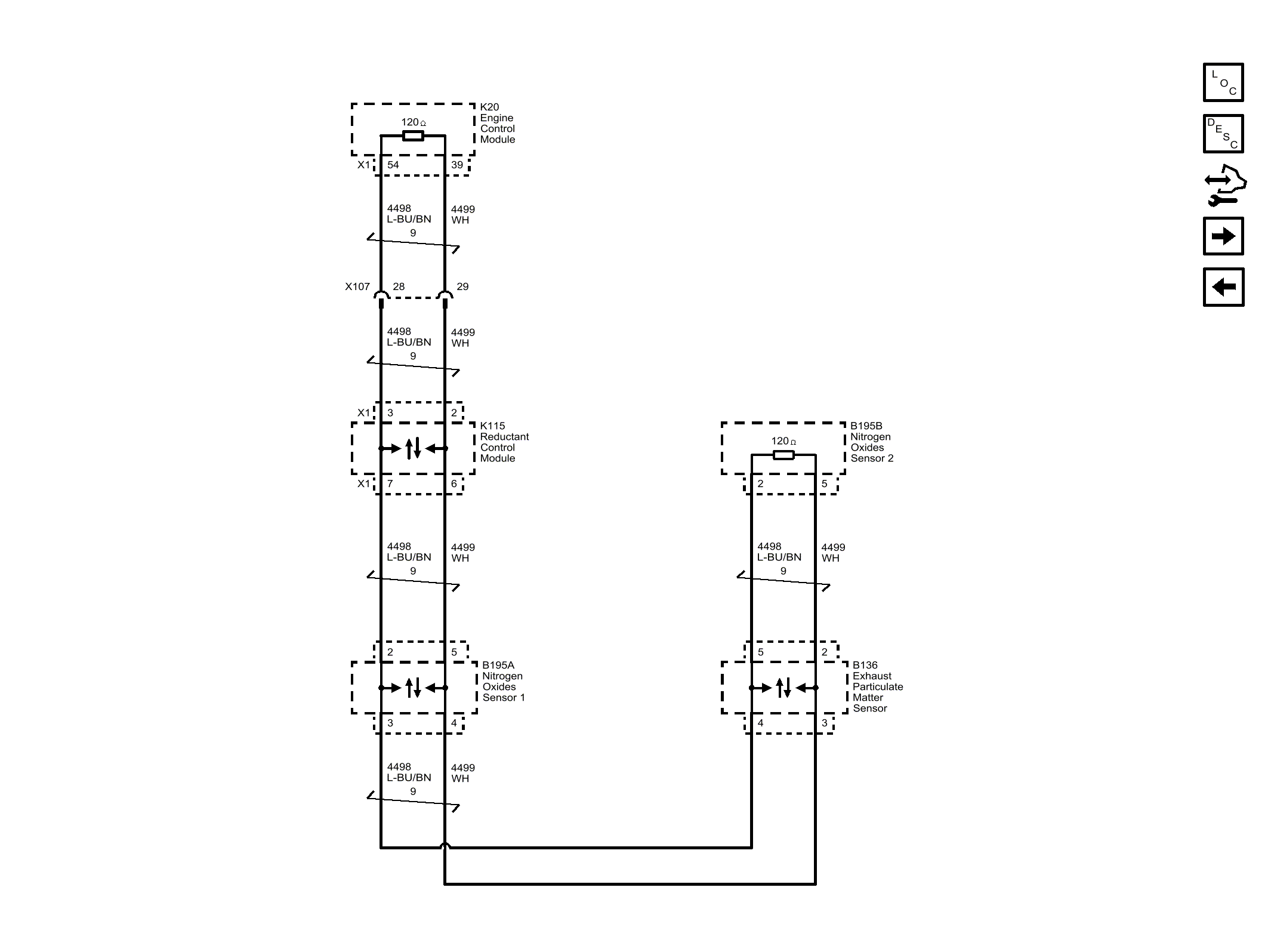

Home › GMC › 2017 › Canyon SL › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Powertrain NOX Bus (LWN)
