Canyon SL
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Data Communication System
›
Schematic Wiring Diagrams
›
Data Communication Wiring Schematics
›
Serial Data Gateway Module and Data Link Connector Power and Ground
Serial Data Gateway Module and Data Link Connector Power and Ground

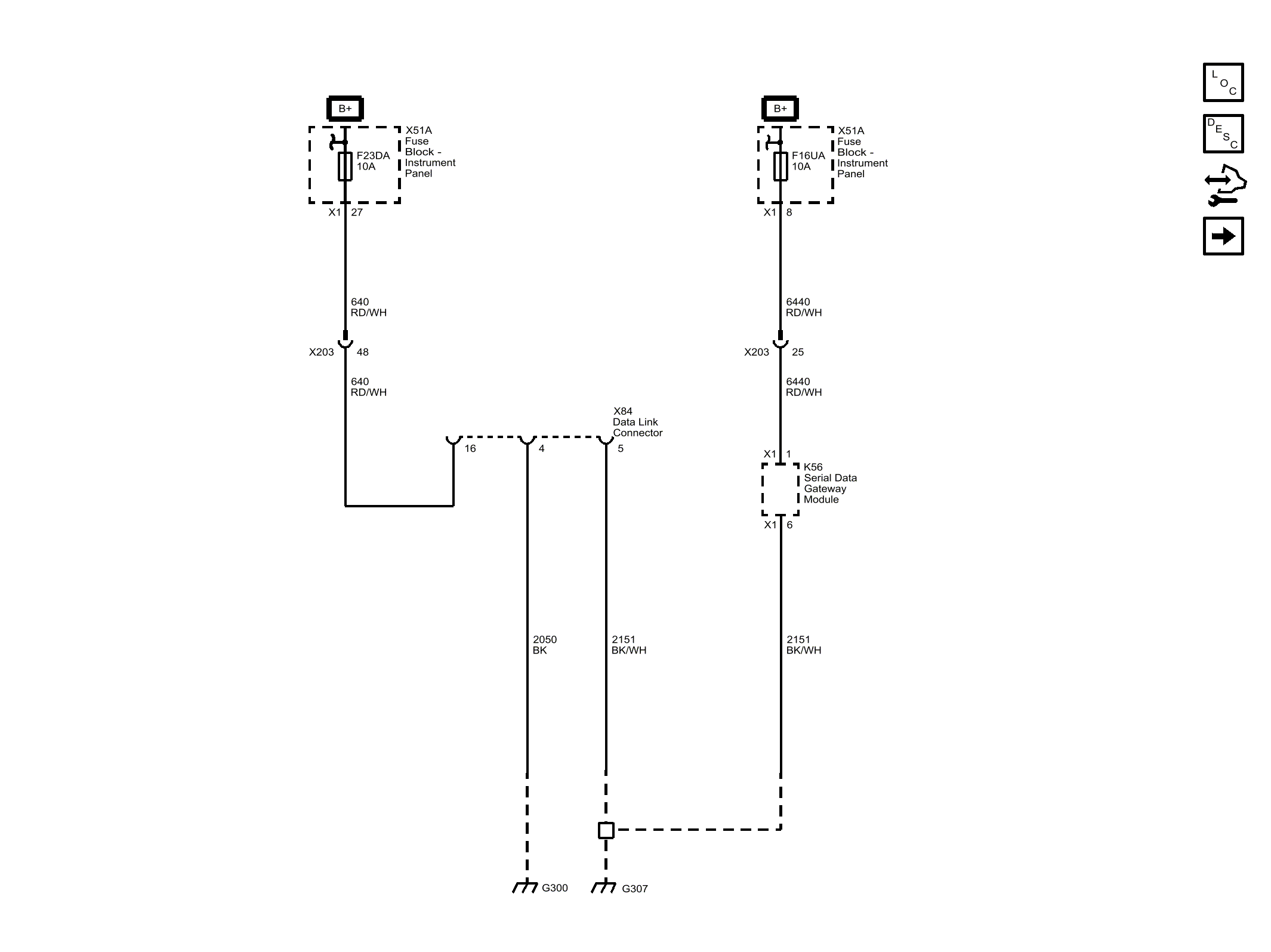

Fig 1: Serial Data Gateway Module and Data Link Connector Power and Ground
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
