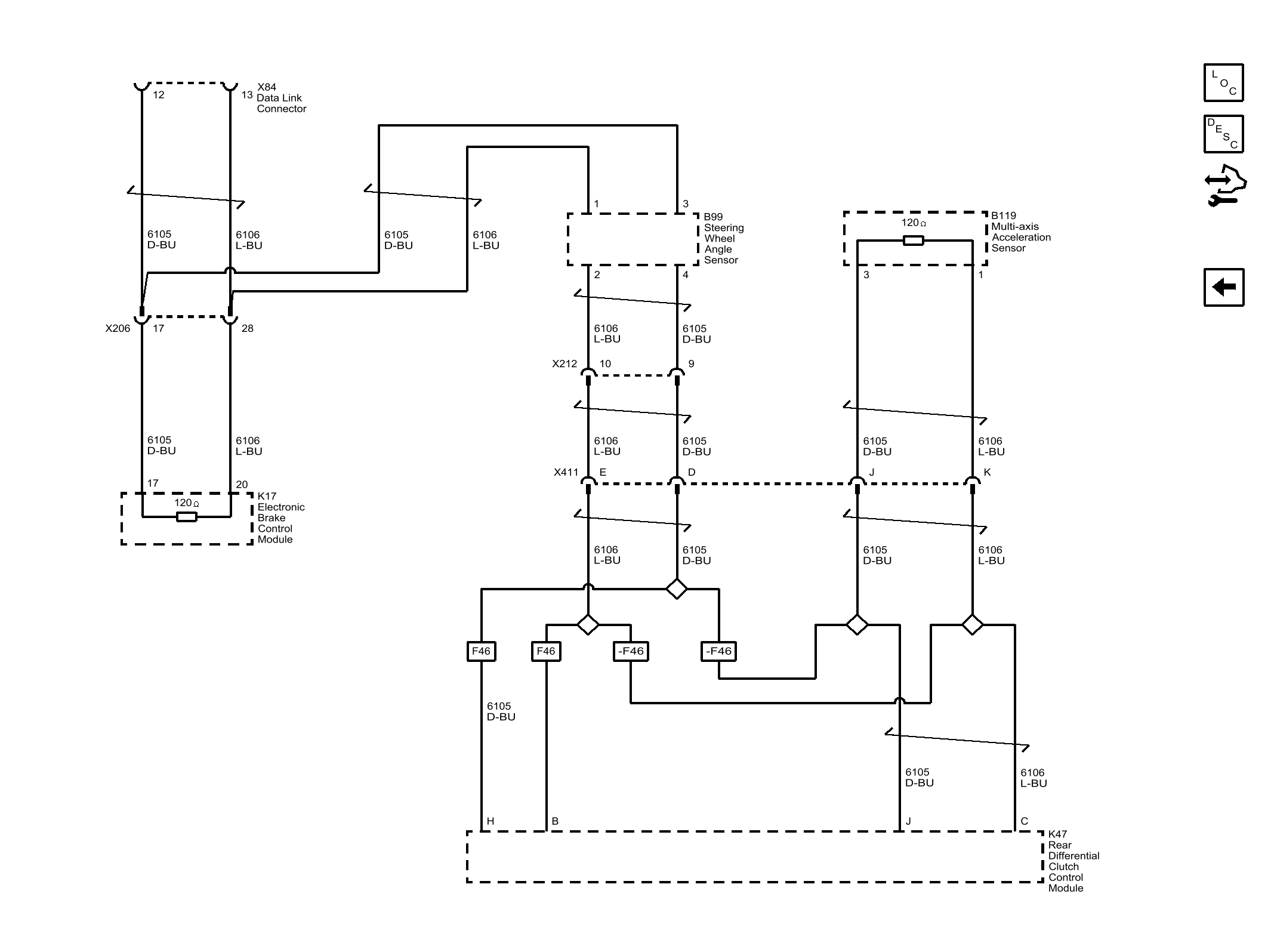

Home › GMC › 2017 › Terrain SL, Gas/Ethanol › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Chassis Expansion Bus
