Forward Collision and Lane Departure

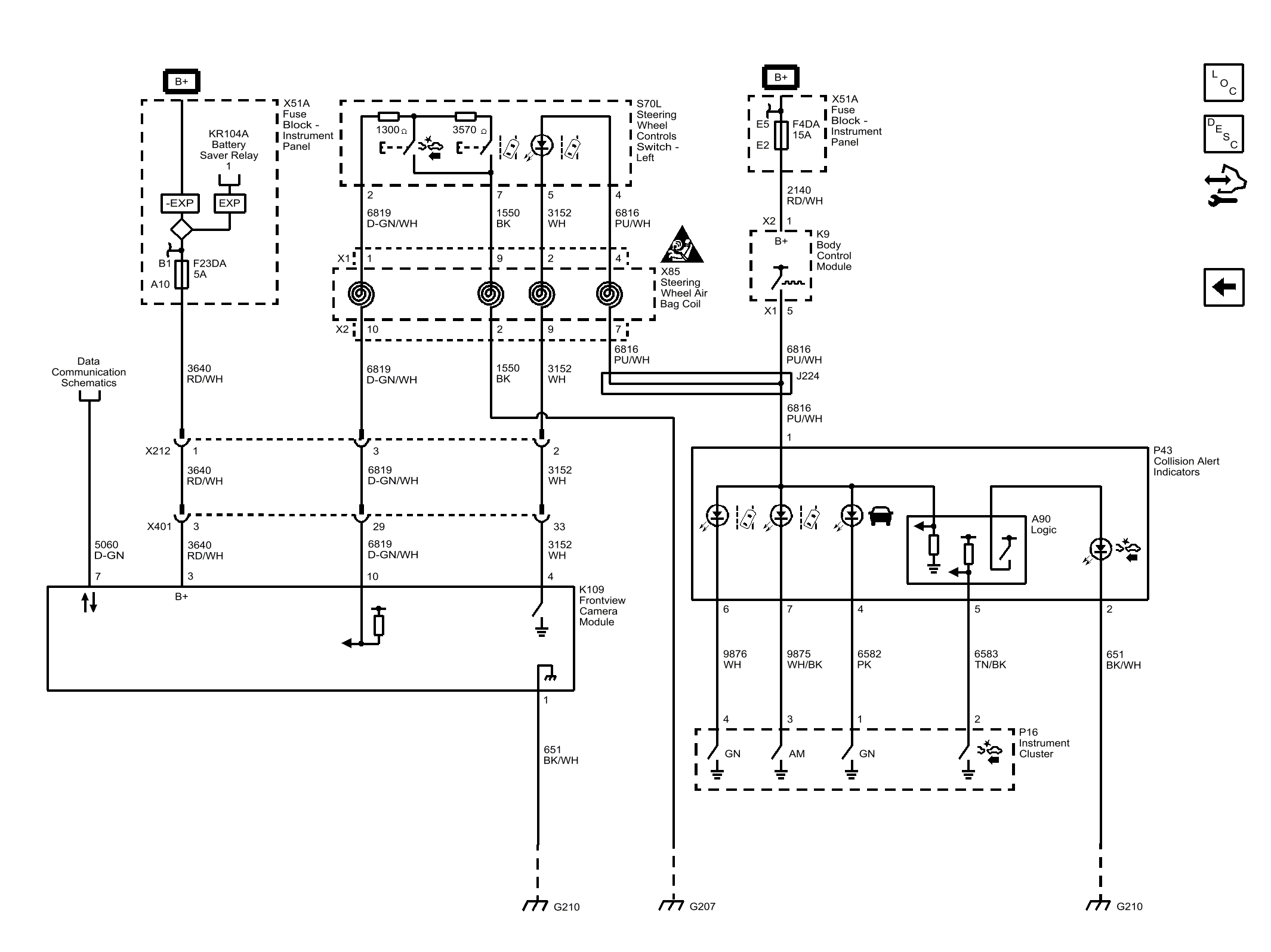

Fig 1: Forward Collision and Lane Departure
GM4404484Courtesy of GENERAL MOTORS COMPANY
