Intake Air Duct Replacement

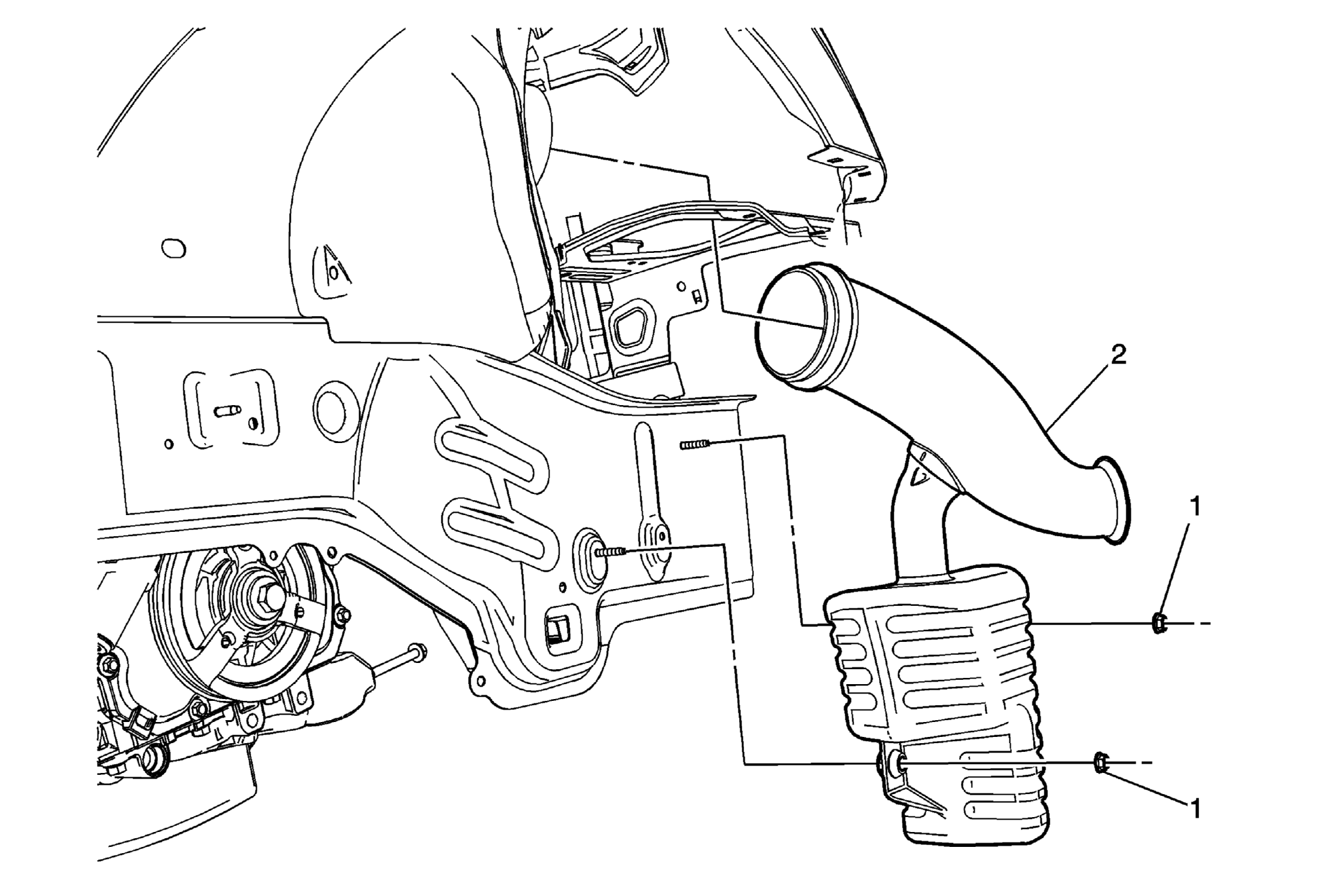

Fig 1: Intake Air Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front wheelhouse panel. Refer to Front Wheelhouse Liner Replacement (Equinox)Front Wheelhouse Liner Replacement (Terrain) .
1	Front Intake Air Duct Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Front Intake Air Duct Procedure  Disconnect the electrical connector.
