Module Power, Grounds, and Subsystem References (1 of 4)

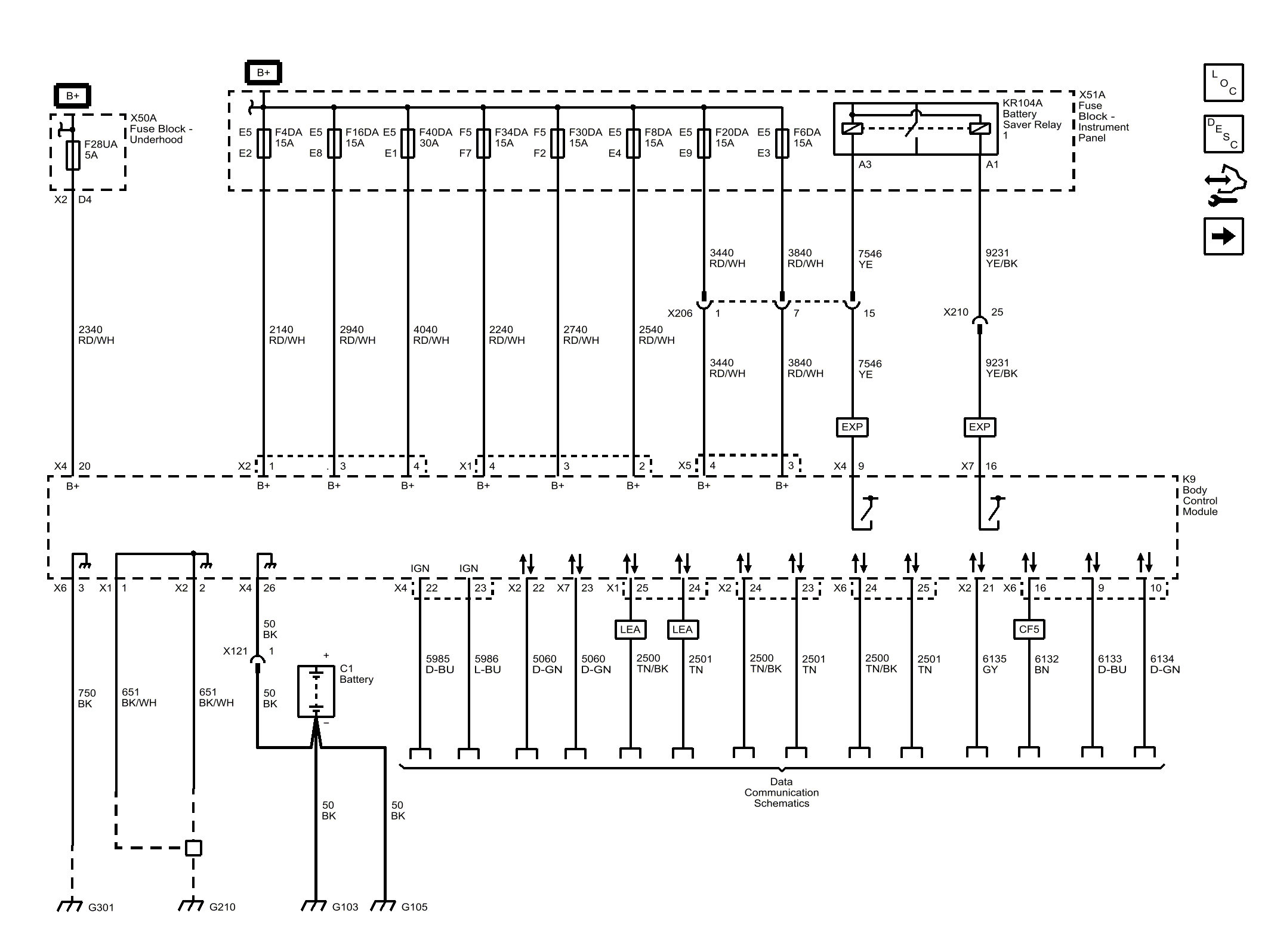

Fig 1: Module Power, Grounds, and Subsystem References (1 of 4)
GM4404260Courtesy of GENERAL MOTORS COMPANY
