Data Communication Wiring Schematics
›
Enable Serial Data
Enable Serial Data

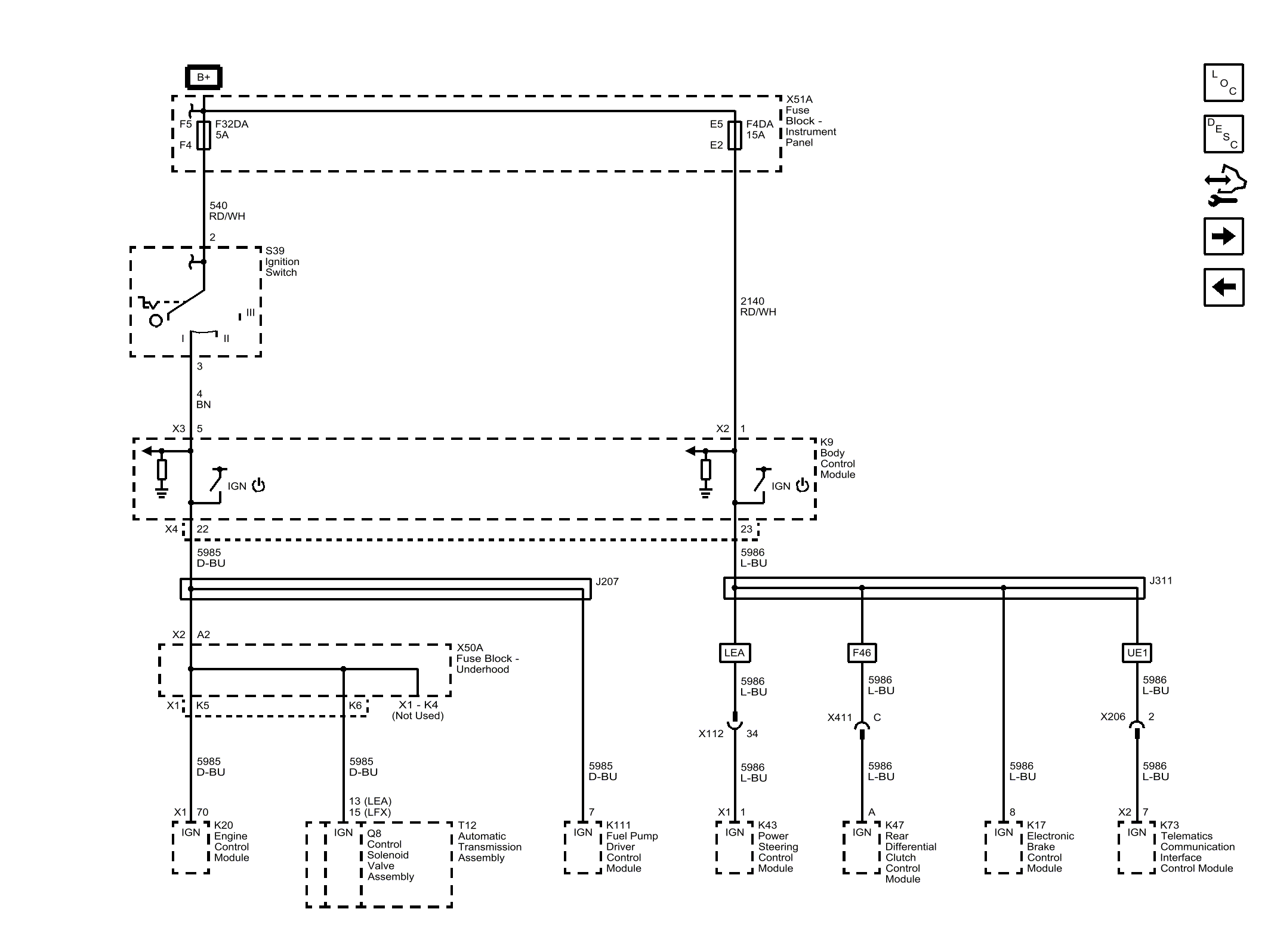

Fig 1: Enable Serial Data
Courtesy of GENERAL MOTORS COMPANY
