Radio/HVAC Linear Interconnect Network (LIN) Bus and CAN Graphical Interface

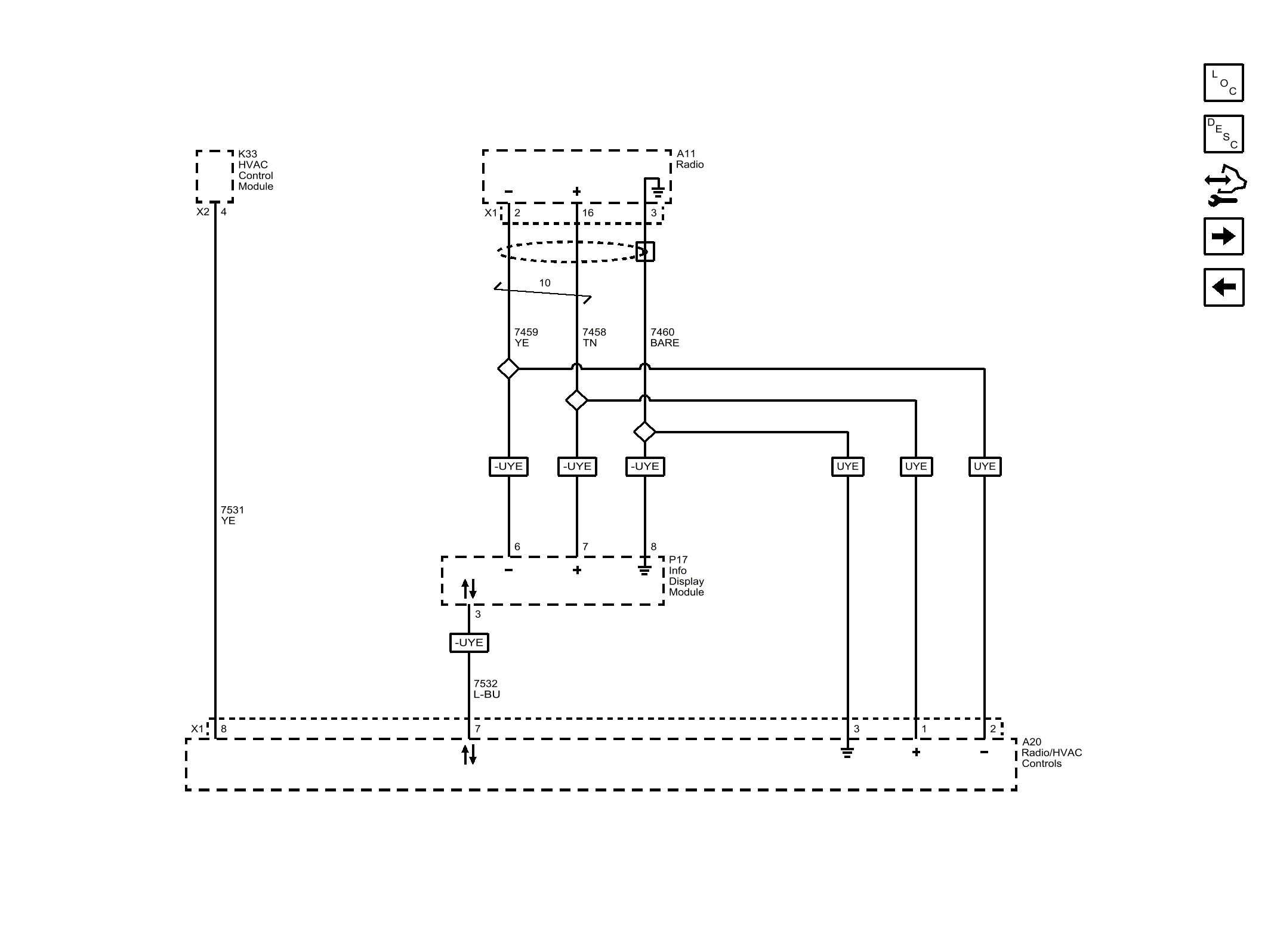

Fig 1: Radio/HVAC Linear Interconnect Network (LIN) Bus and CAN Graphical Interface
GM4404255Courtesy of GENERAL MOTORS COMPANY
