Power Steering Pump Pulley Replacement

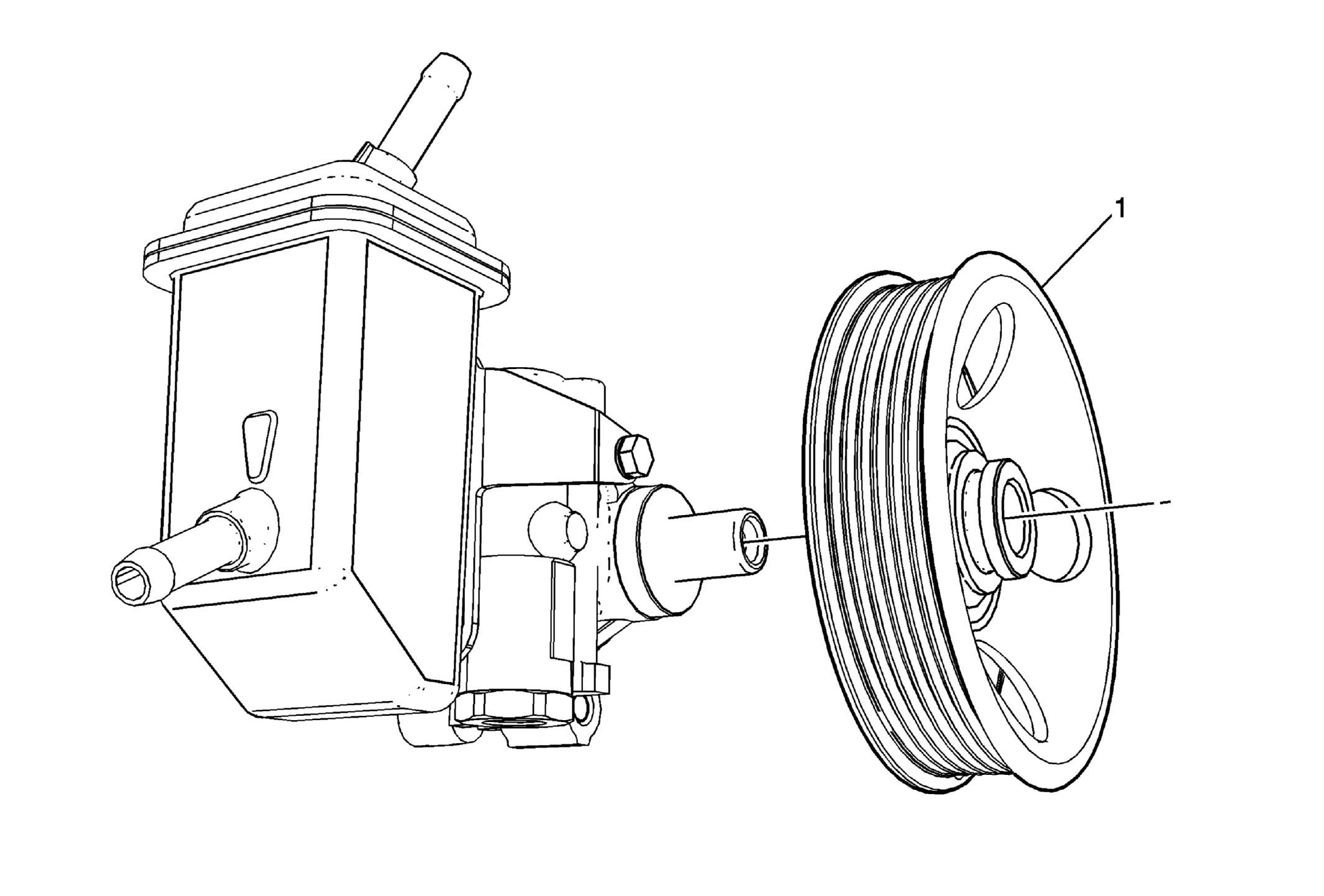

Fig 1: Power Steering Pump Pulley

GM2259588

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove Power Steering Pump. Refer to Power Steering Pump Replacement (FWD) Power Steering Pump Replacement (AWD)

1

Power Steering Pump Pulley

Procedure

Use the CH-25034 - C remover to remove the power steering pump pulley.
Use the CH-25033 - C installer to install the power steering pump pulley.
Ensure the axial tolerance of the power steering pump pulley on the power steering pump shaft is within 0.25 mm (0.010 in).

Special Tools

CH-25033 - C Pulley Installer
CH-25034 - C Pulley Remover

Equivalent regional tools: Special Tools
