Home › GMC › 2018 › Acadia SL › Repair and Diagnosis › Body & Frame › Fixed And MOVEABLE Windows System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

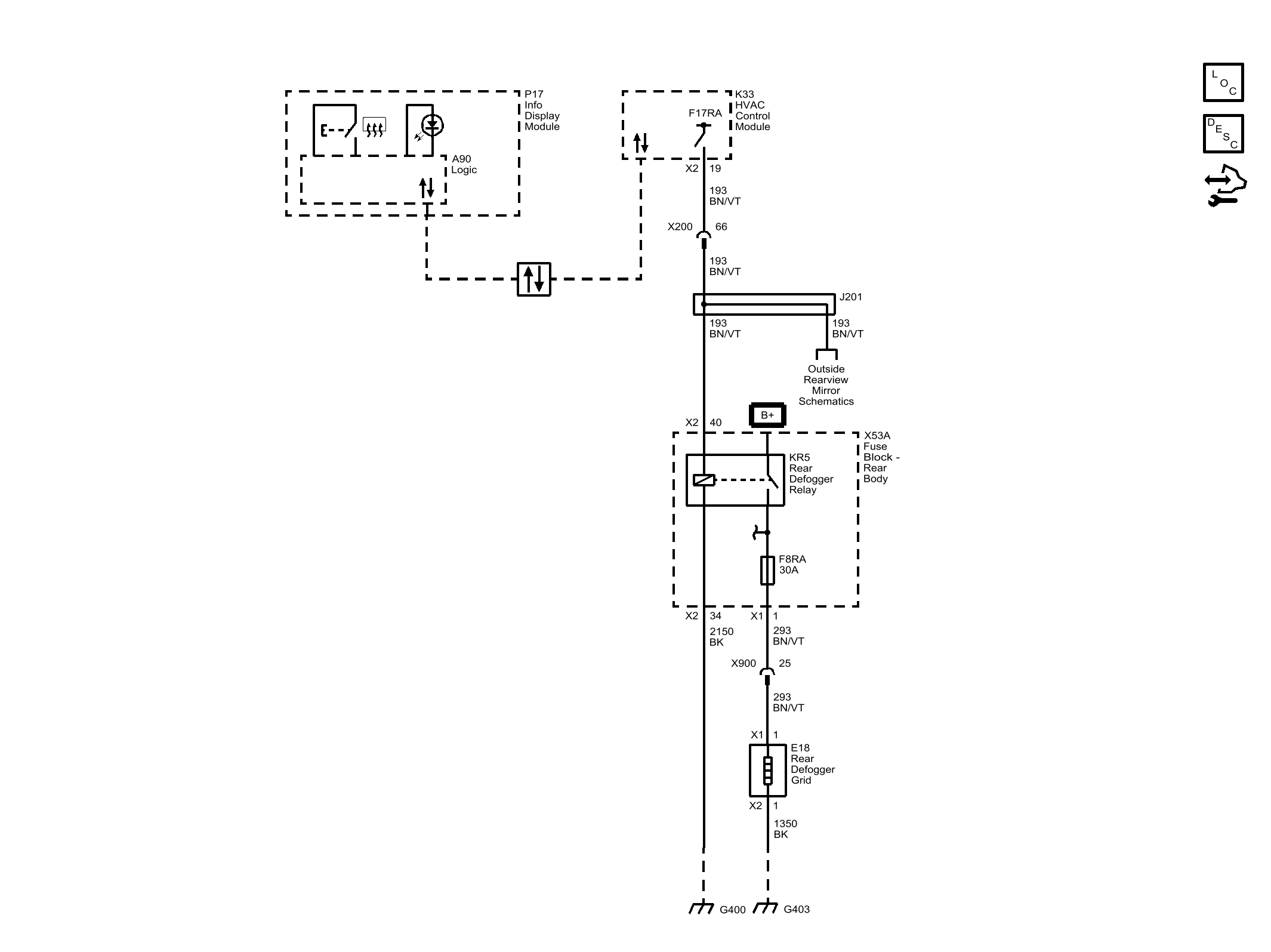

Defogger Wiring Schematics: Defogger

GM4698691Courtesy of GENERAL MOTORS COMPANY
