Memory Seats Description And Operation: Notes
The memory seat system consists of the following components:
- K40 Seat memory control module
- S64 Seat adjuster switch
- S47 Seat memory switch
- M51 Seat horizontal motor
- M50 Seat front vertical motor
- M55 Seat rear vertical motor
- M56 Seat recline motor

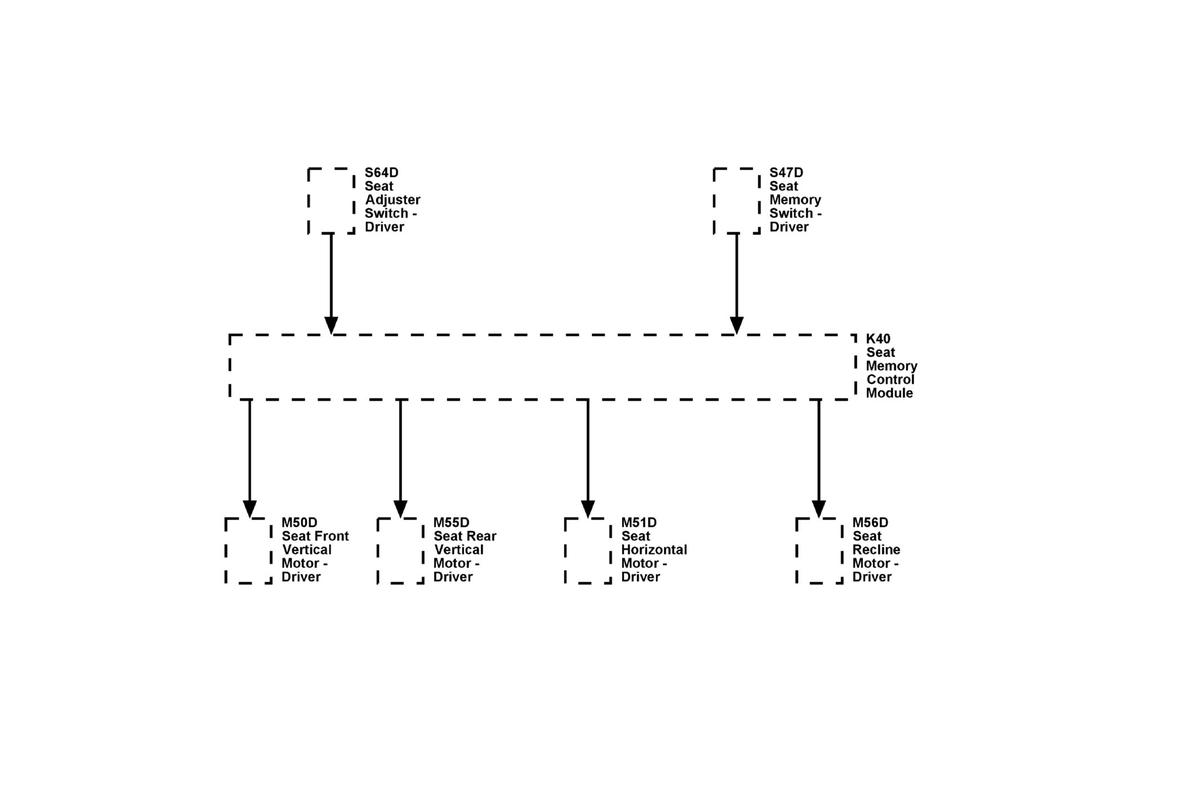

| Callout | Component Name |
|---|---|
| S64D | S64D Seat Adjuster Switch - Driver |
| S47D | S47D Seat Memory Switch - Driver |
| K40 | K40 Seat Memory Control Module |
| M56D | M56D Seat Recline Motor - Driver |
| M51D | M51D Seat Horizontal Motor - Driver |
| M55D | M55D Seat Rear Vertical Motor - Driver |
| M50D | M50D Seat Front Vertical Motor - Driver |
