Power Seats System Description And Operation: Notes
The driver and passenger power seat systems each consist of the following components:
- Seat adjuster switch
- Seat horizontal motor
- Seat front vertical motor (If Equipped)
- Seat rear vertical motor
- Seat recline motor

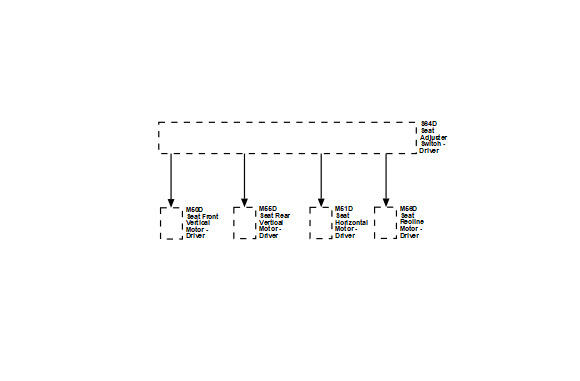

| Callout | Component Name |
|---|---|
| S64D | S64D Seat Adjuster Switch - Driver |
| M56D | M56D Seat Recline Motor - Driver |
| M51D | M51D Seat Horizontal Motor - Driver |
| M55D | M55D Seat Rear Vertical Motor - Driver |
| M50D | M50D Seat Front Vertical Motor - Driver |
