Installation Procedure

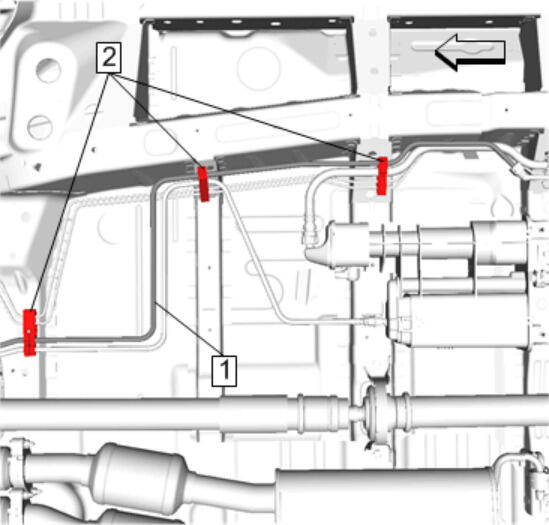

  1. GM4311735

    Fuel Feed Pipe (1) @ Retainer (2) - Install (Qty: 3)

  2. Fuel Feed Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
  3. GM4339616

    Fuel Feed Pipe (1) @ Retainer (2) - Install

  4. Fuel Feed Front Pipe - Install - Fuel Feed Front Pipe Replacement
