Installation Procedure

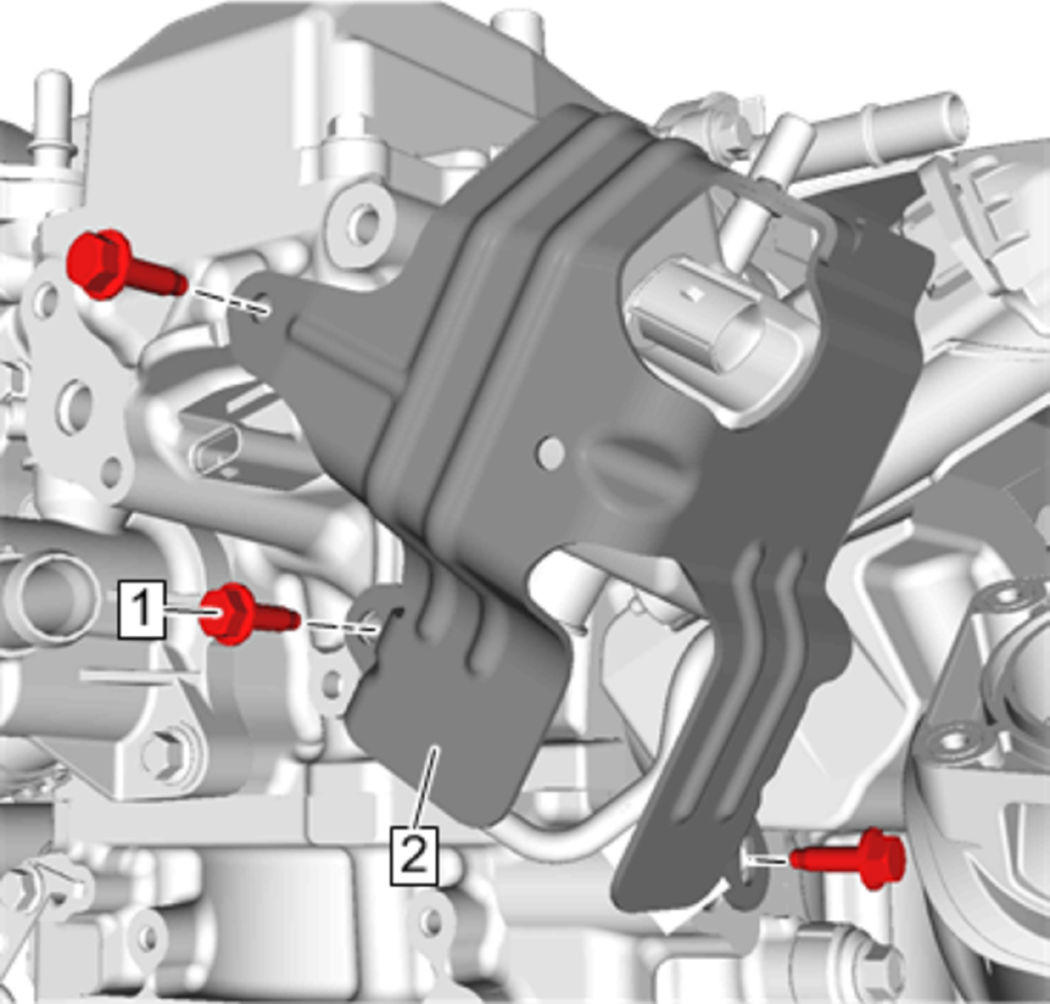

  1. GM4376576

    Fuel Pump Cover (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Pump Shield Bolt (1) - Install and tighten (Qty: 3) 10 N.m (89 lb in)

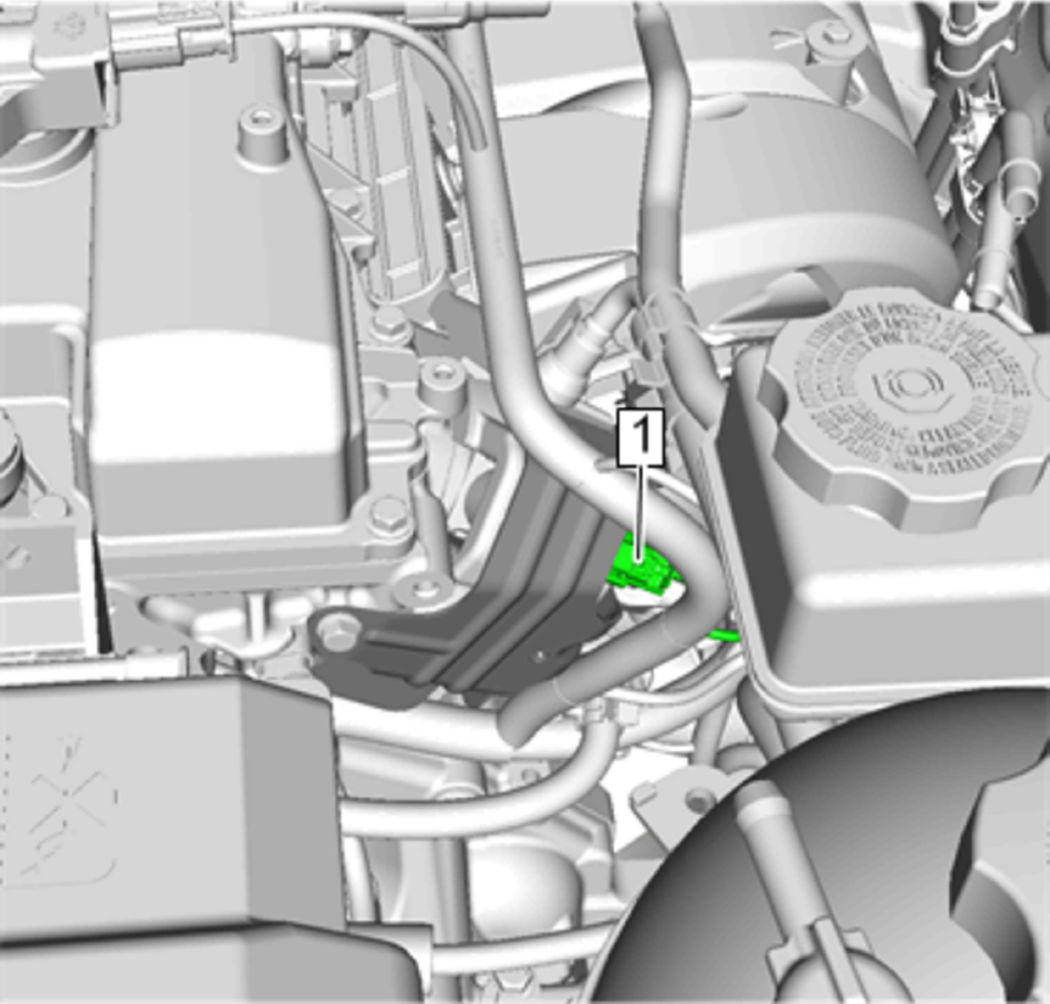

  3. GM4376536

    Electrical Connector (1) - Connect

  4. Heater Outlet Pipe - Install - Heater Outlet Pipe Replacement (LCV)
  5. Throttle Body Assembly - Install - Throttle Body Assembly Replacement
