Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: 6 Fuse Block Retaining Tabs

Courtesy of GENERAL MOTORS COMPANY

Install Fuse Block (1)

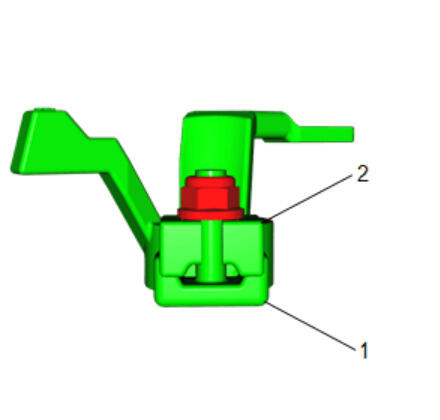

Fig 2: Battery Positive Cable Clamp And Battery Positive Post

Courtesy of GENERAL MOTORS COMPANY

When installing the battery positive cable clamp to the battery positive post, make sure the clamp is seated correctly on the post.

Fig 3: Battery Positive Post Clamp Nut

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install Battery Positive Post Clamp Nut (1) and tighten 9 N.m (80 lb in)

Fig 4: Battery Positive Junction Block Cable Nut And Positive Battery Cable Terminal Nut-Large

Courtesy of GENERAL MOTORS COMPANY

Install Battery Positive Junction Block Cable Nut (3) and tighten 16 N.m (12 lb in)
Install Positive Battery Cable Terminal Nut-Large (2) and tighten 16 N.m (12 lb ft)
Install Positive Battery Cable Terminal Nut-Small (1) and tighten 9 N.m (80 lb in)

Fig 5: Body Wiring Harness Terminal Nut And Body Wiring Harness Connector

Courtesy of GENERAL MOTORS COMPANY

Install Body Wiring Harness Terminal Nut (2) and tighten 9 N.m (80 lb in)
Connect Body Wiring Harness Connector (1)

Fig 6: Battery Fuse Block Cover

Courtesy of GENERAL MOTORS COMPANY

Install Battery Fuse Block Cover (1)
Connect the battery negative cable.Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9)
