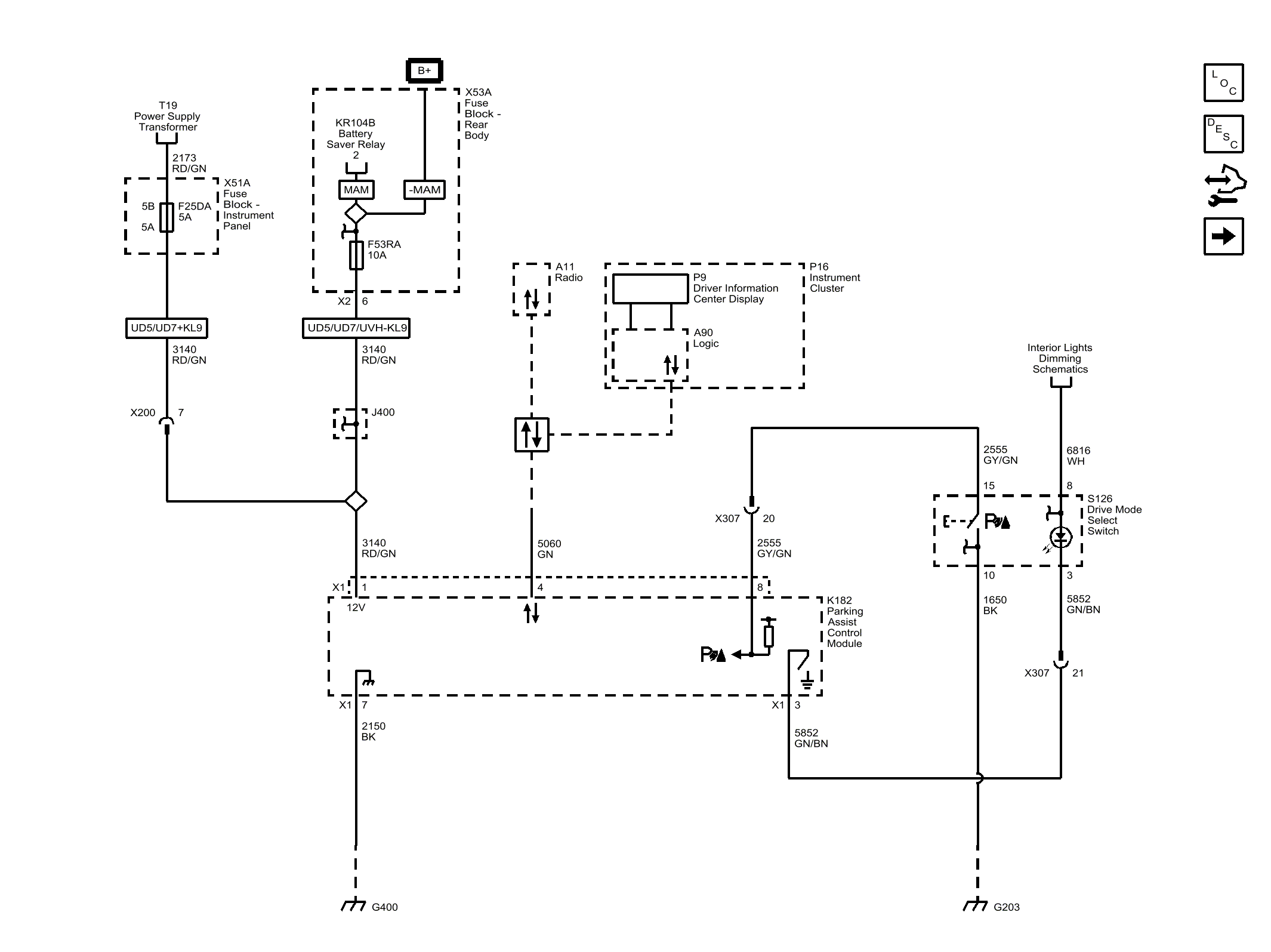

Park Assist - Module Power, Ground, Serial Data and Controls (UD5 or UD7)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
