Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

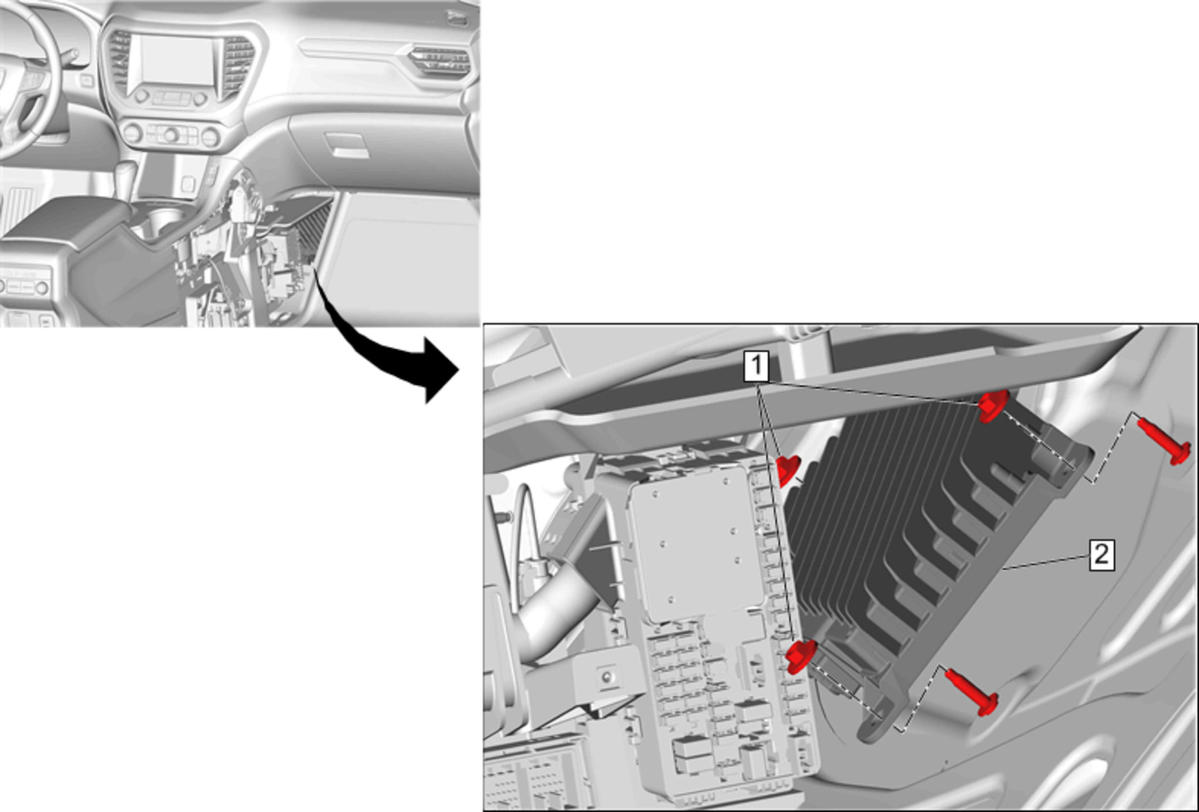

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Front Floor Console Extension Panel - Left Side. Refer to Front Floor Console Extension Panel Replacement - Left Side Remove Front Floor Console Extension Panel - Right Side. Refer to Front Floor Console Extension Panel Replacement - Right Side
1	Radio Speaker Amplifier Nut (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 6 N.m (53 lb in)
2	Radio Speaker Amplifier Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedures

Remove Front Floor Console Extension Panel - Left Side. Refer to Front Floor Console Extension Panel Replacement - Left Side
Remove Front Floor Console Extension Panel - Right Side. Refer to Front Floor Console Extension Panel Replacement - Right Side

Radio Speaker Amplifier Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution

Tighten
6 N.m (53 lb in)

Radio Speaker Amplifier

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
