Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

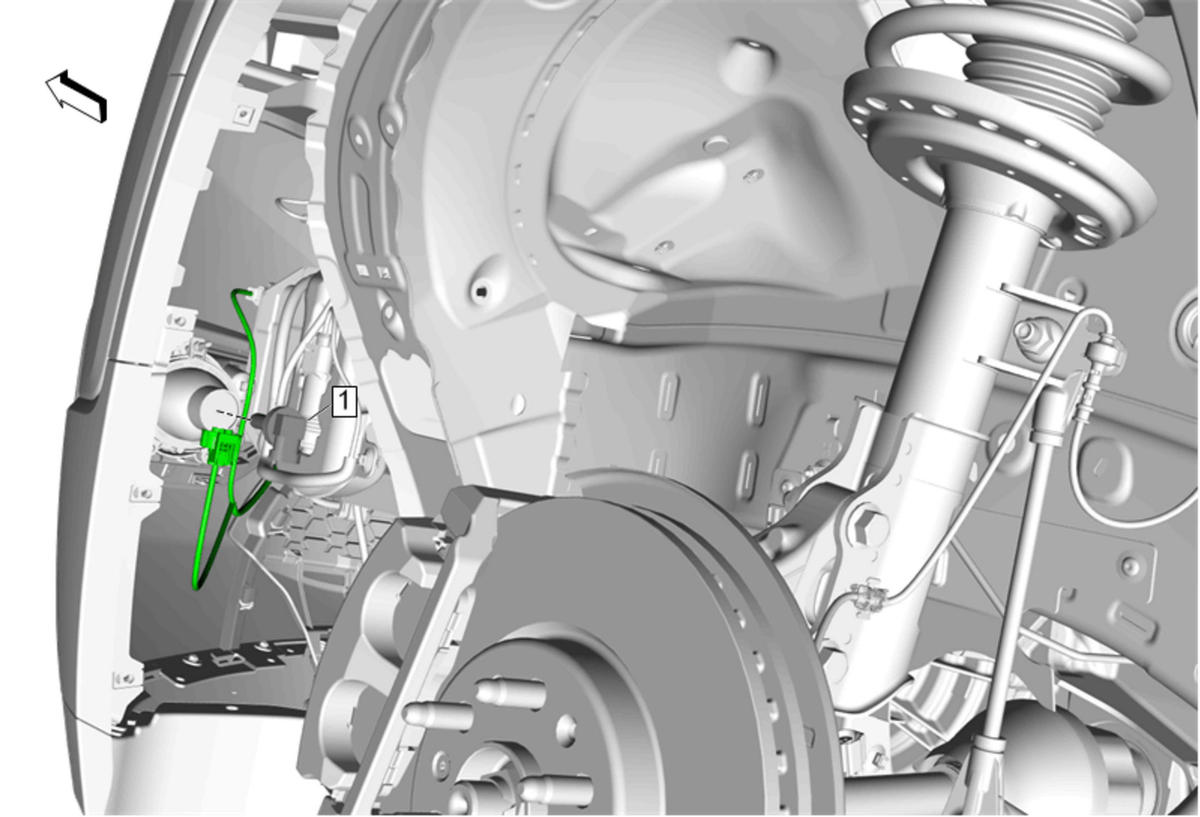

Fig 1: Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Front Wheelhouse Liner Replacement
1	Front Fog Lamp Bulb Procedure Disconnect the electrical connector. Rotate the bulb a quarter turn counterclockwise and remove.

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure Front Wheelhouse Liner Replacement

Front Fog Lamp Bulb

Procedure

Disconnect the electrical connector.
Rotate the bulb a quarter turn counterclockwise and remove.
