Sunroof Module Assembly Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

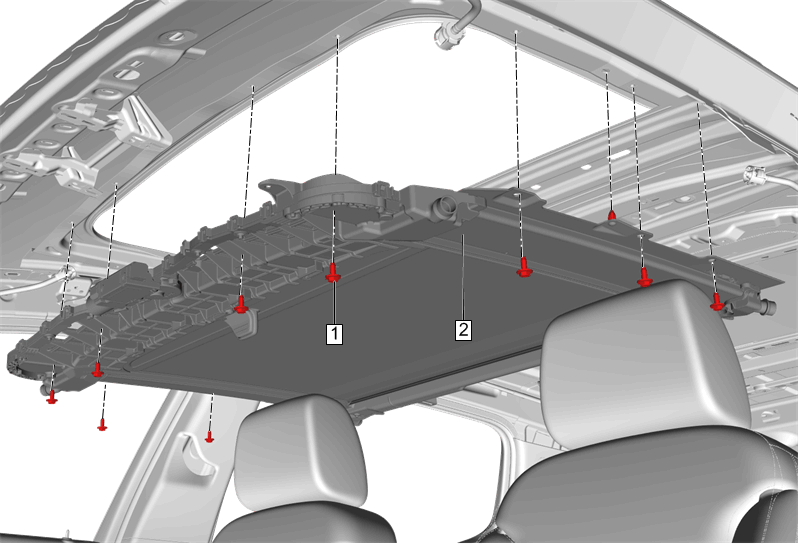

Fig 1: Sunroof Module Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Sunroof Window Replacement - Front Do not remove the drain hoses from the vehicle, disconnect the drain hoses from all corners of the sunroof frame spigot only. Sunroof Housing Front Drain Hose Replacement (Left Front) Sunroof Housing Front Drain Hose Replacement (Right Front) , and Sunroof Housing Rear Drain Hose Replacement (Right Rear) Sunroof Housing Rear Drain Hose Replacement (Left Rear) Disconnect the electrical connectors.
1	Sunroof Module Bolt (Qty: 12) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Sunroof Module Assembly Procedure With aid of assistant, remove the sunroof housing from the vehicle and place it on a clean dry prepared surface. Transfer components as necessary. Water test and inspect sunroof for proper operation.

Callout

Component Name

Preliminary Procedures

Sunroof Window Replacement - Front
Do not remove the drain hoses from the vehicle, disconnect the drain hoses from all corners of the sunroof frame spigot only. Sunroof Housing Front Drain Hose Replacement (Left Front) Sunroof Housing Front Drain Hose Replacement (Right Front) , and Sunroof Housing Rear Drain Hose Replacement (Right Rear) Sunroof Housing Rear Drain Hose Replacement (Left Rear)
Disconnect the electrical connectors.

Sunroof Module Bolt (Qty: 12)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Sunroof Module Assembly

Procedure

With aid of assistant, remove the sunroof housing from the vehicle and place it on a clean dry prepared surface.
Transfer components as necessary.
Water test and inspect sunroof for proper operation.
