Front Intake Air Duct Replacement

Courtesy of GENERAL MOTORS COMPANY

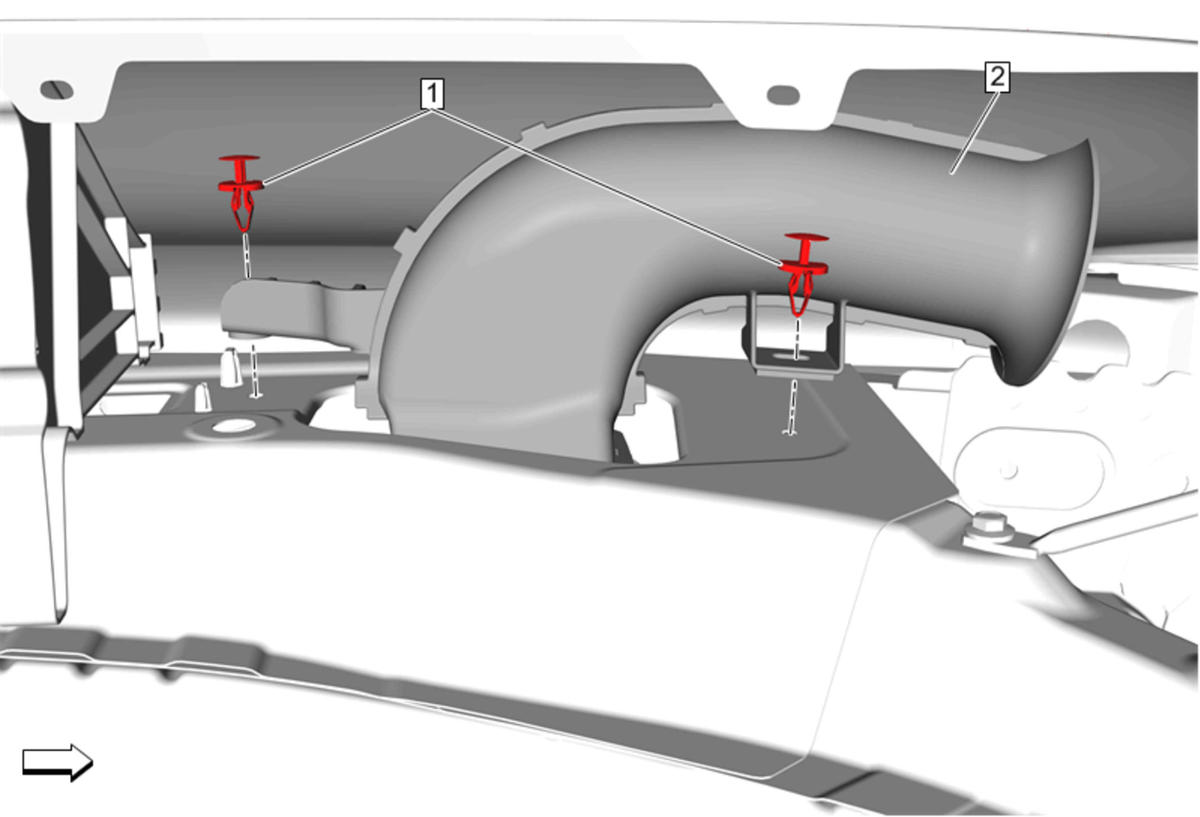

Callout	Component Name
Preliminary Procedure  Front Wheelhouse Liner-Right Side - Remove - Front Wheelhouse Liner Replacement
1	Retainer[2x] CAUTION: Refer to Fastener Caution .
2	Front Intake Air Duct Procedure  Pull out on front intake air duct to remove from air cleaner assembly.
