Manifold Absolute Pressure Sensor Replacement

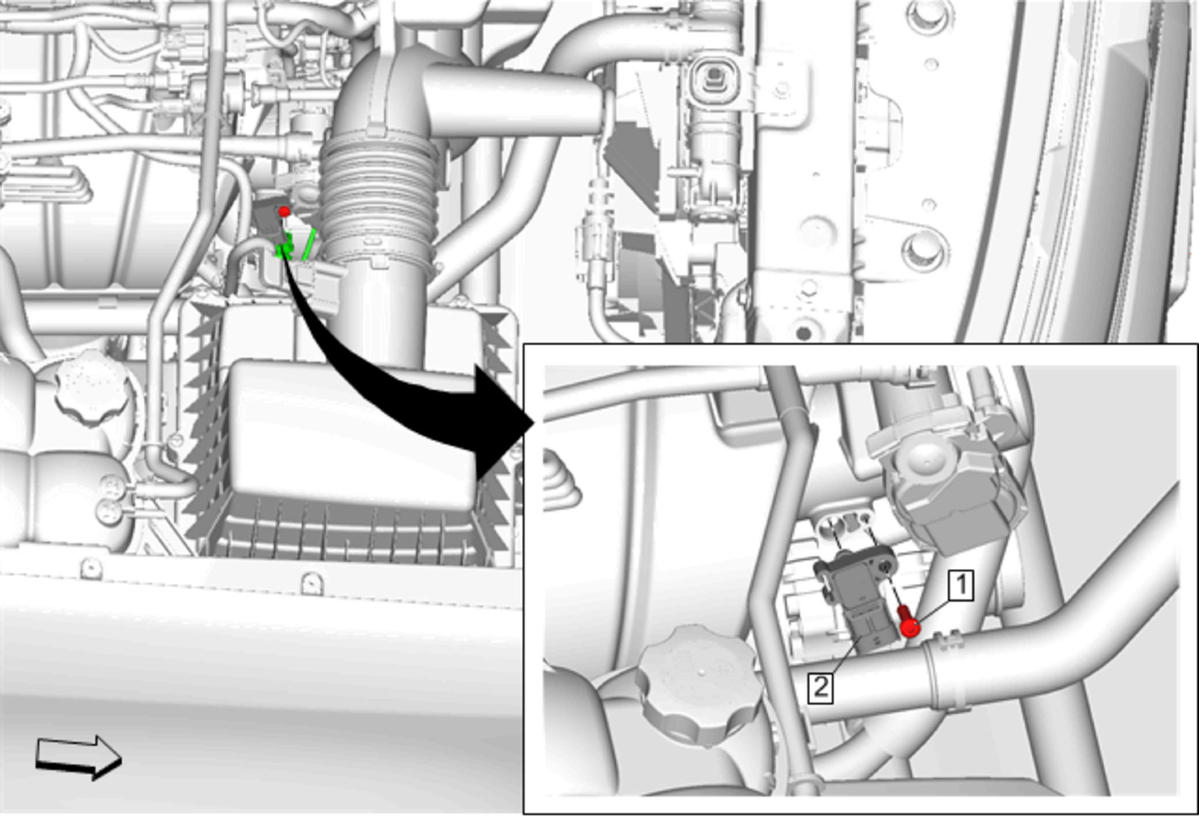

GM3958737Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Manifold Absolute Pressure Sensor Retaining Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Manifold Absolute Pressure Sensor

Procedure

  1. Disconnect the engine wiring harness electrical connector from the manifold absolute pressure sensor.
  2. Remove the manifold absolute pressure sensor from the intake manifold.
  3. Install a NEW seal if reusing the manifold absolute pressure sensor.
