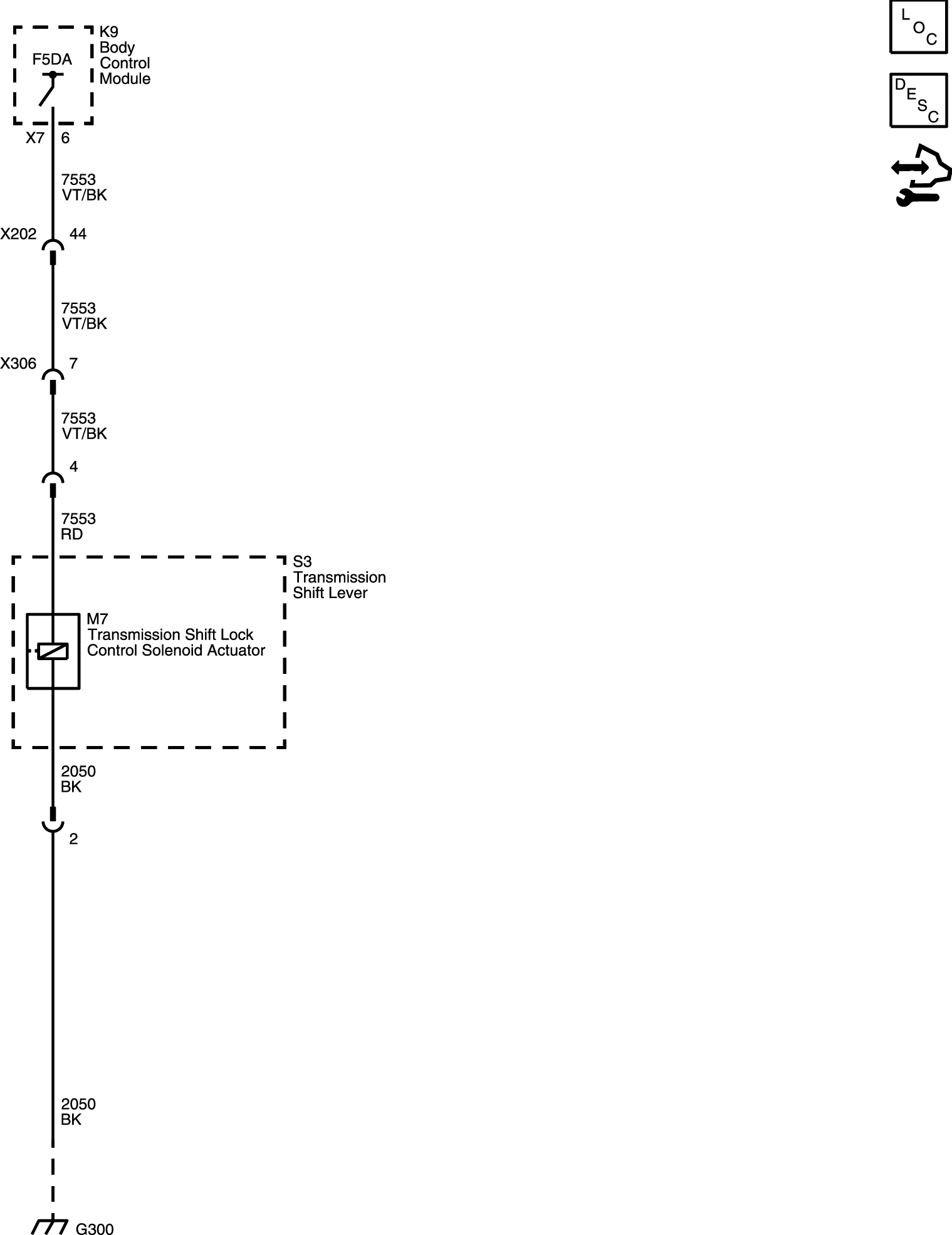

Shift Lock Control Wiring Schematics: MYB

WARNING: This page is about a different variant/trim than selected.
GM4699313
