Installation Procedure

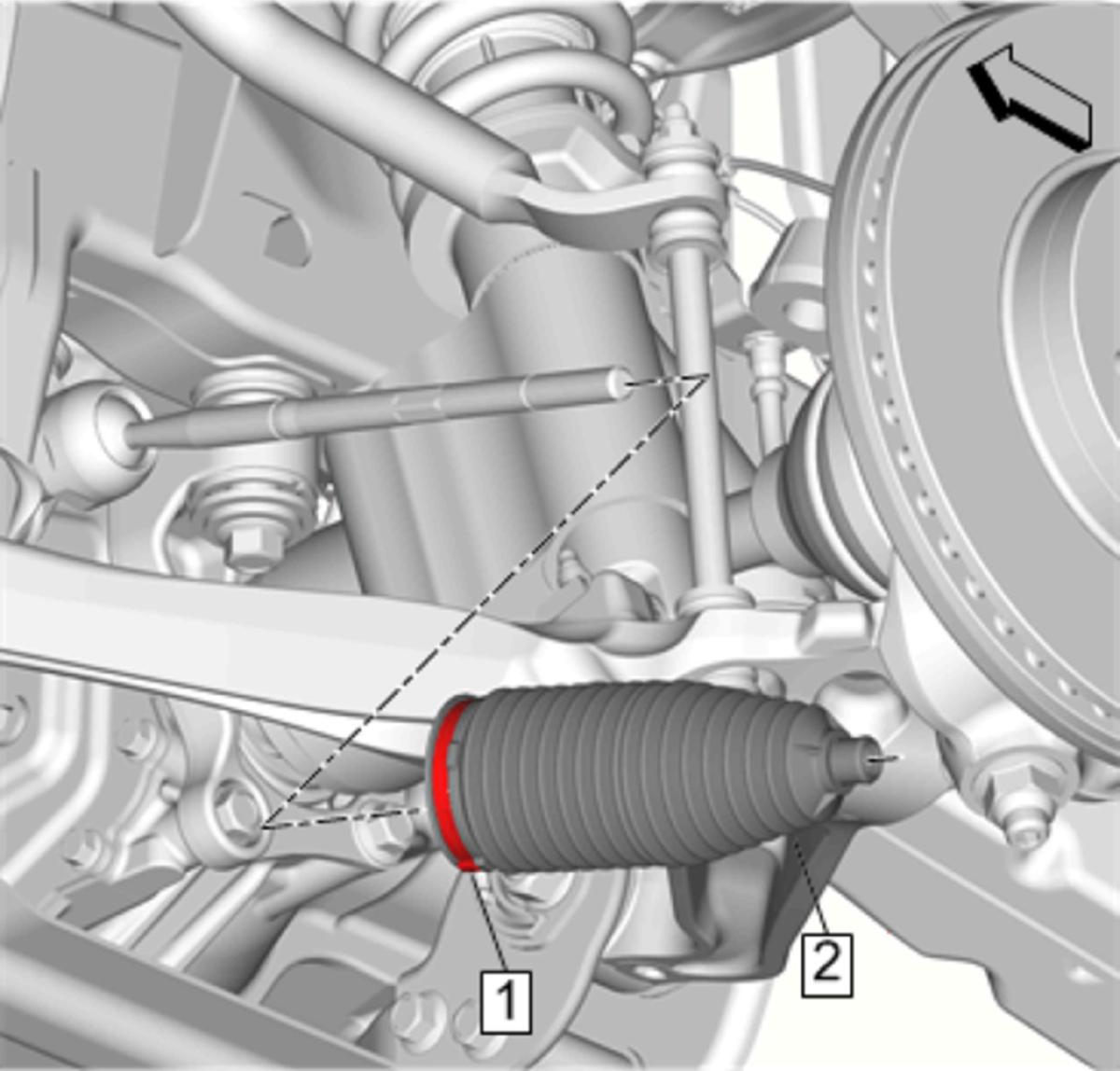

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
- Position the steering gear boot (2) on the steering gear.

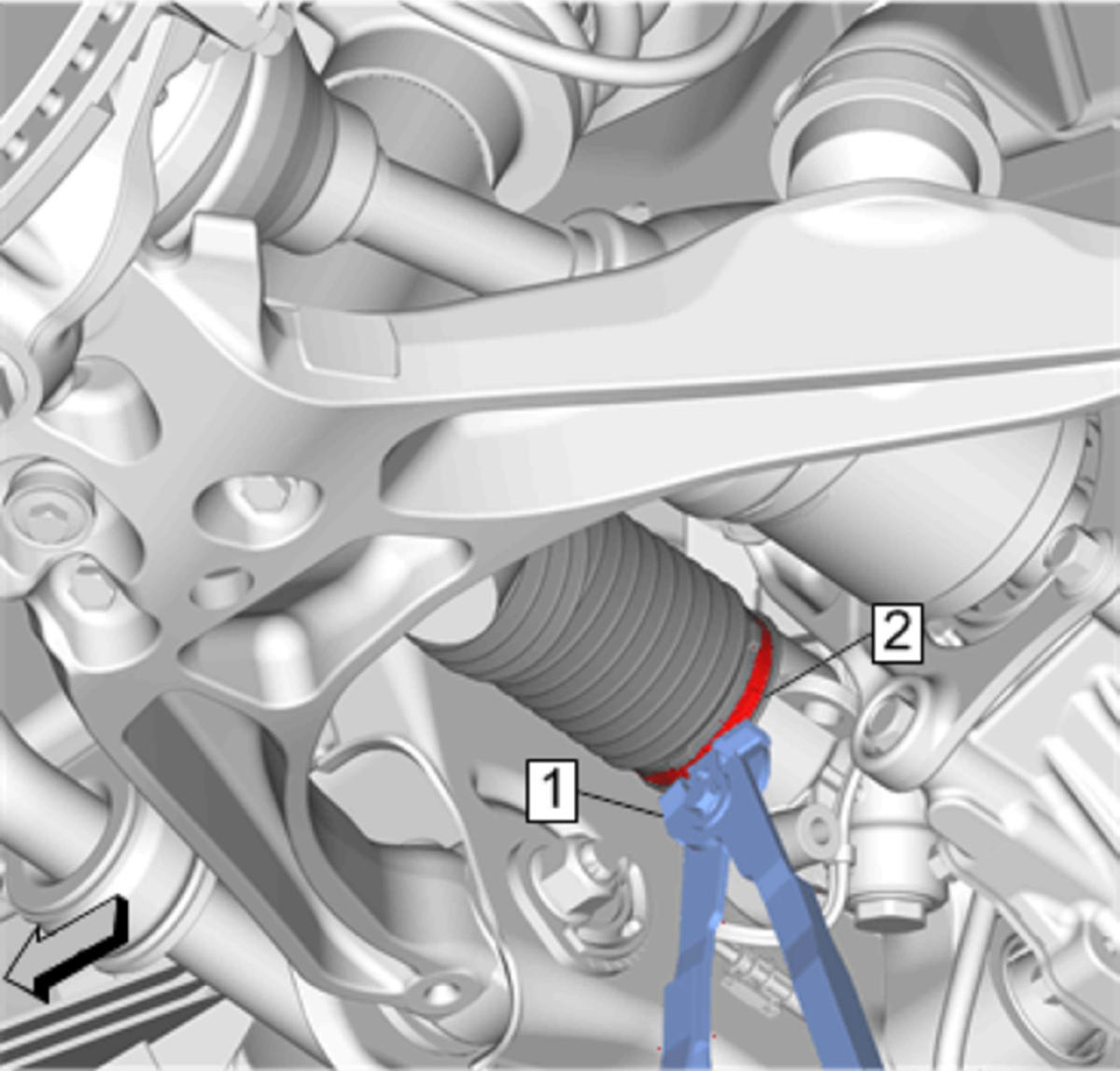

Use the CH-22610 pliers (1) to tighten the steering gear boot inner clamp (2).
Steering Gear Boot Outer Clamp (2) - Install
- Steering Linkage Inner Tie Rod Nut (1) - Install
- Steering Linkage Outer Tie Rod - Install - Steering Linkage Outer Tie Rod Replacement (With ZR2)
- Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
