Camshaft Position Sensor Replacement - Intake

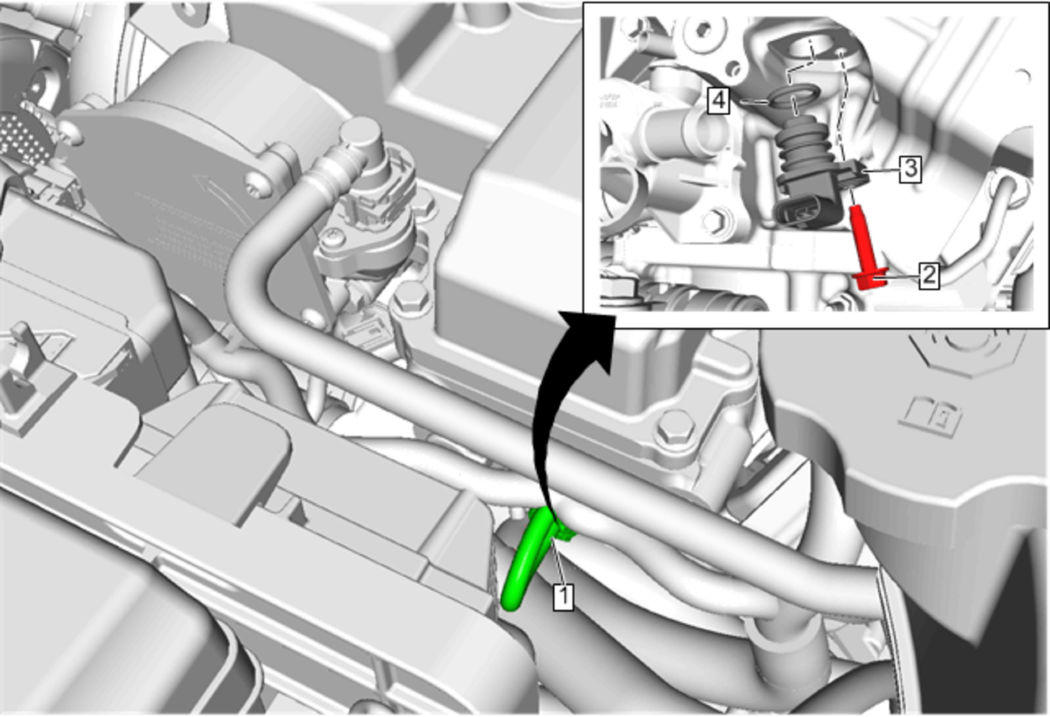

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Charge Air Cooler Outlet Air Tube Replacement Reposition Heater Inlet Hose @ Water Outlet - Water Outlet Replacement (LTG)
1	Electrical Connector
2	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Camshaft Position Sensor
4	Camshaft Position Sensor Seal Procedure Install a NEW seal.
