Installation Procedure

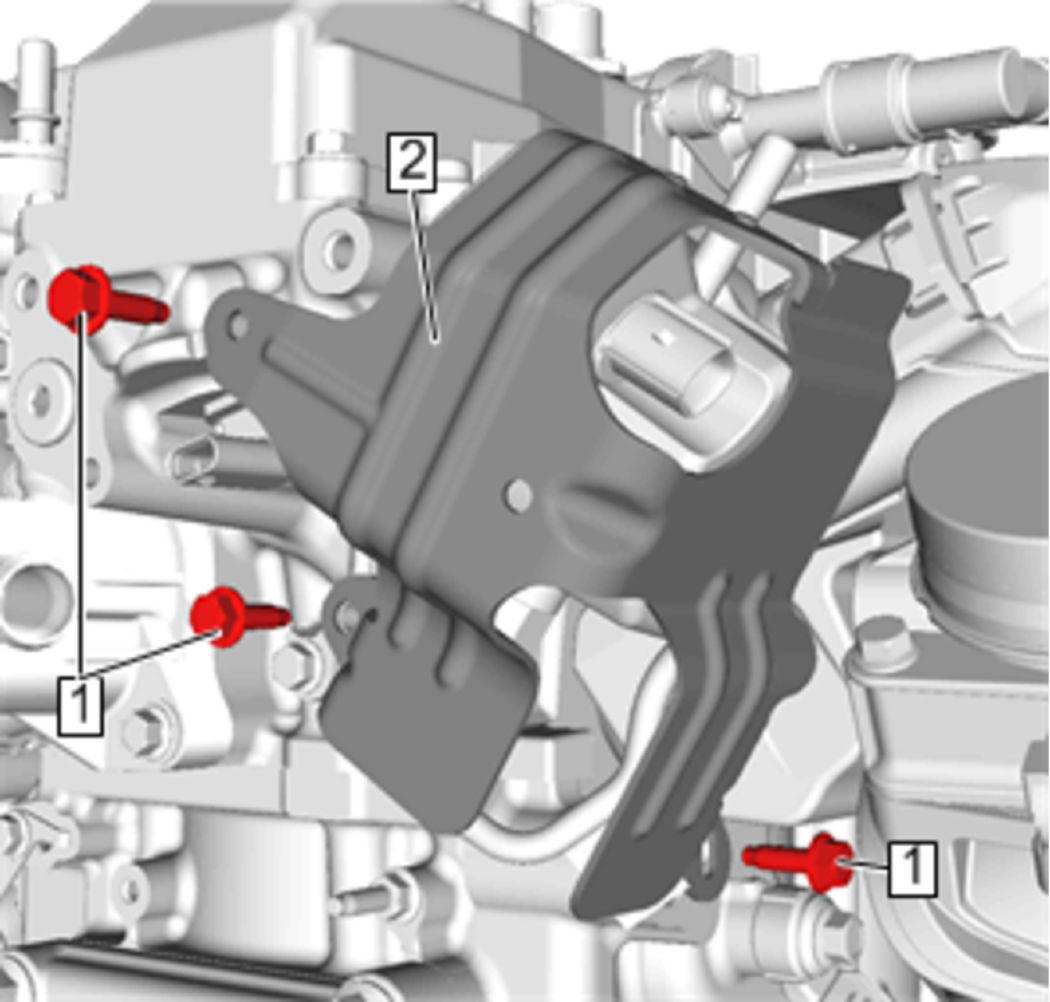

    Fig 1: Fuel Pump Shield Bolt
    GM4676116Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Pump Cover (2)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install Fuel Pump Shield Bolt (1) and tighten [3x] 10 N.m (89 lb in)

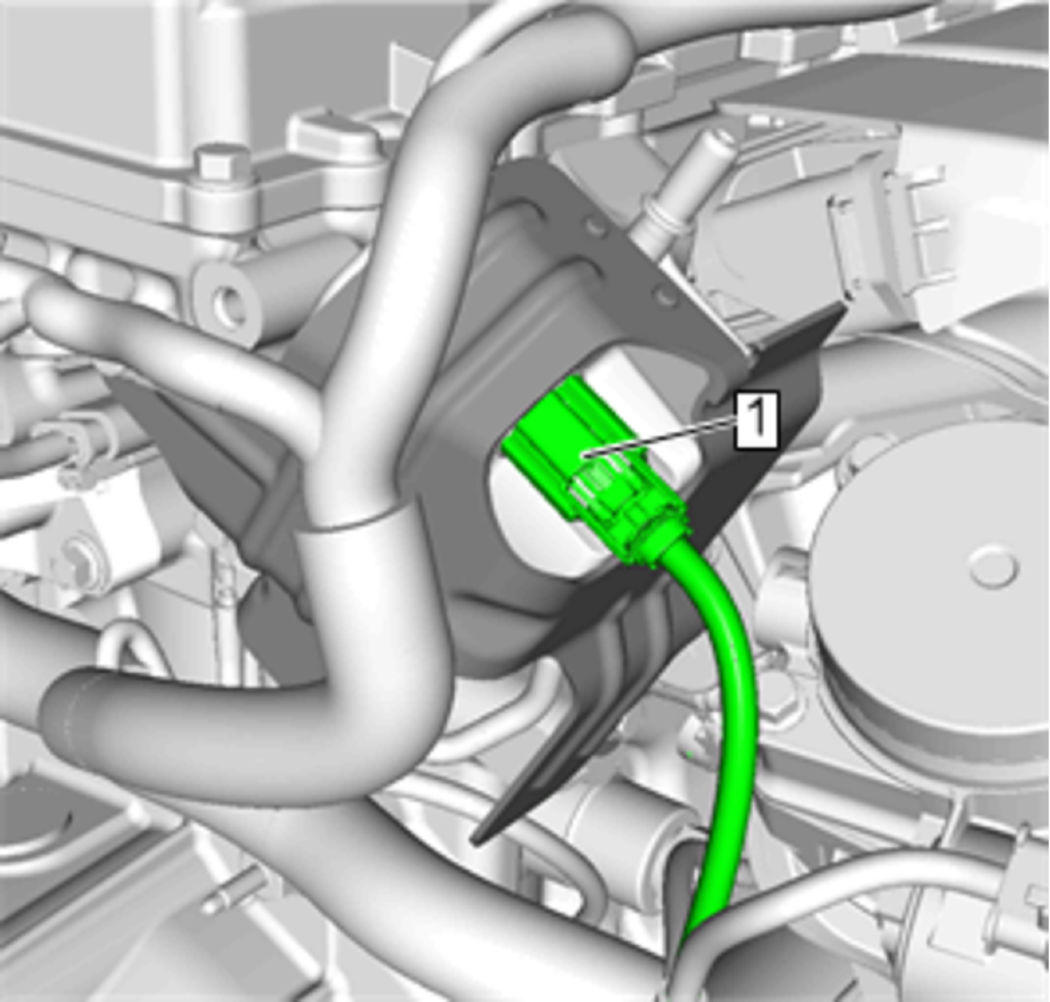

    3. Fig 2: Electrical Connector
    GM4676113Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (1) @ Fuel Pump.

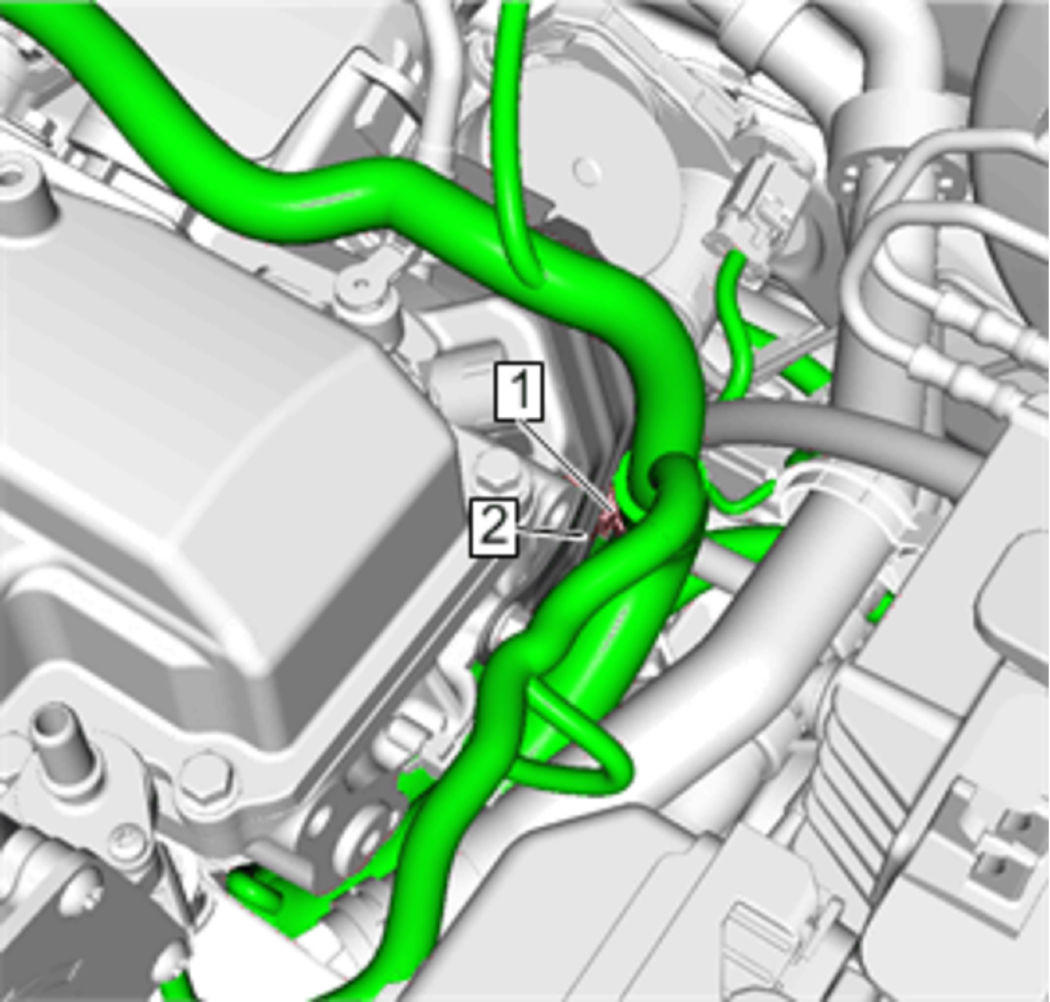

    4. Fig 3: Engine Wiring Harness Retainer And Fuel Pump Cover
    GM4676100Courtesy of GENERAL MOTORS COMPANY
  4. Install Engine Wiring Harness Retainer (1) @ Fuel Pump Cover (2)
  5. Install Intake Manifold Cover Intake Manifold Cover Replacement
  6. Install Install Charge Air Cooler Outlet Air Tube - Charge Air Cooler Outlet Air Tube Replacement
