Engine Oil Pressure Sensor Replacement

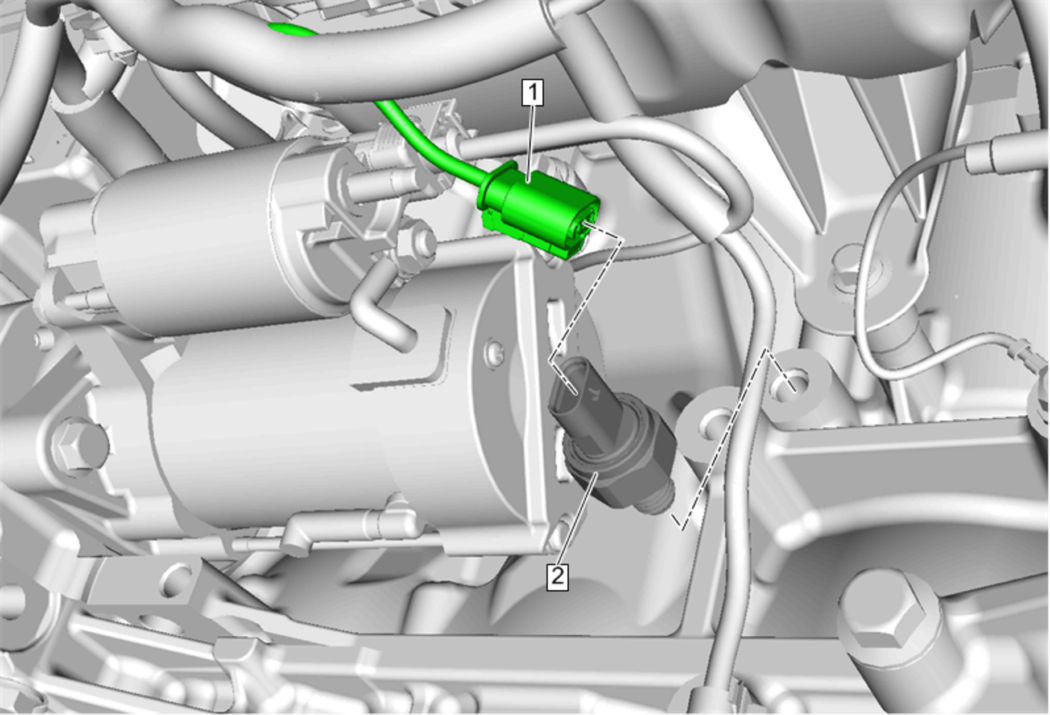

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Power Transfer Unit Case Replacement (M3D Transmission with LTG Engine)
1	Electrical Connector
2	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten  35 N.m (26 lb ft)
