Manifold Absolute Pressure Sensor Replacement

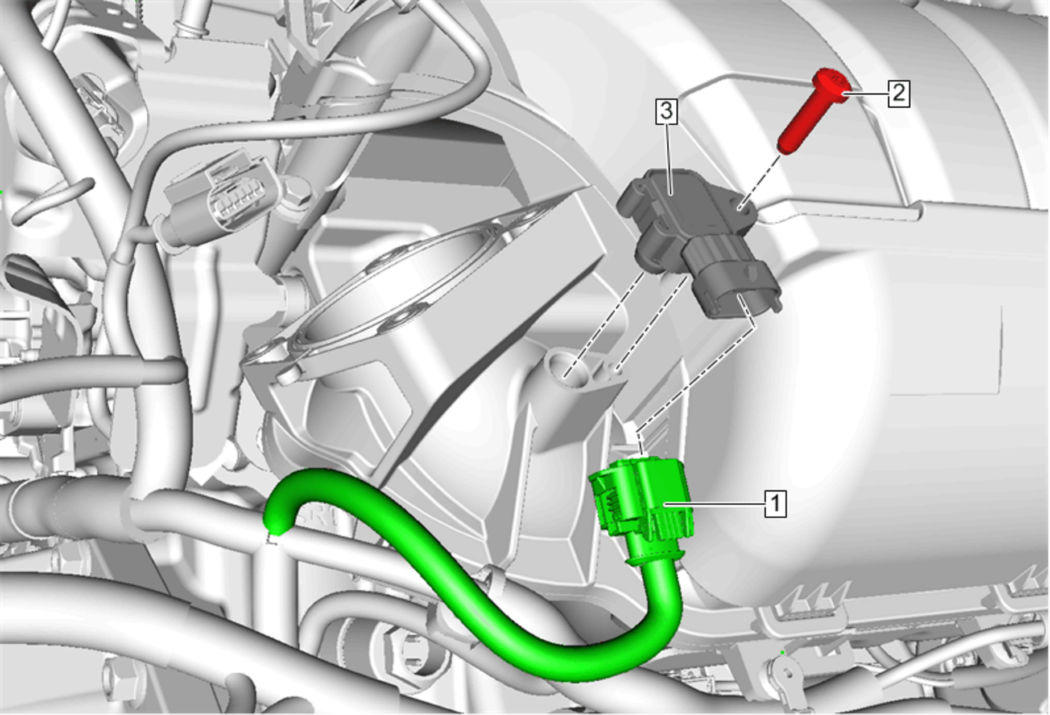

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Throttle Body Assembly Replacement
1	Electrical Connector
2	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Manifold Absolute Pressure Sensor Procedure The seal is reusable, inspect the seal and replace if damaged. Perform the intake system learned values reset. Intake System Learned Values Reset
