Steering Wheel Secondary/Configurable Control Wiring Schematics
›
Cruise Control Steering Wheel Controls
Cruise Control Steering Wheel Controls

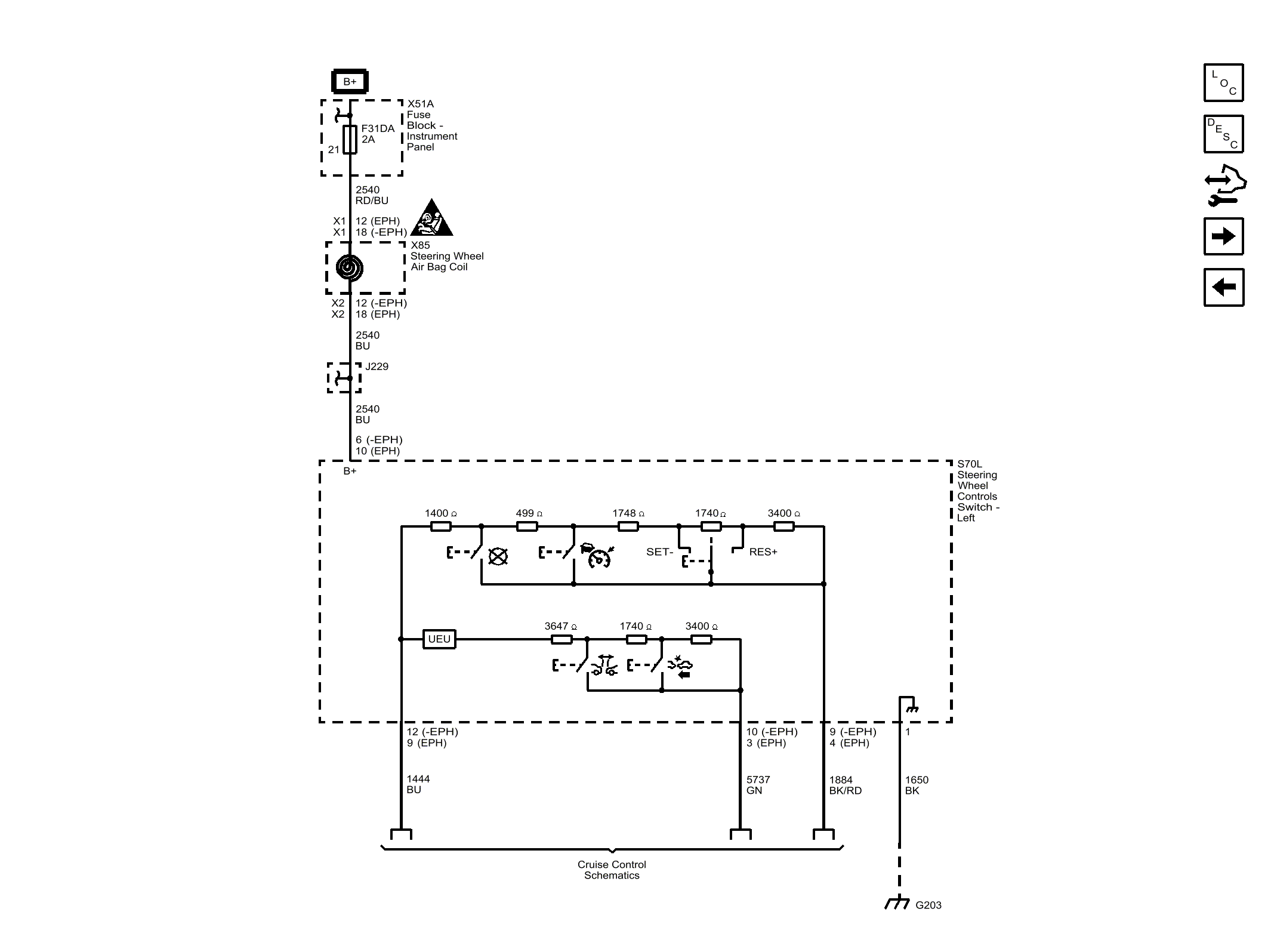

Fig 1: Cruise Control Steering Wheel Controls
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
