Keyless Entry - Passive and Keyless Start

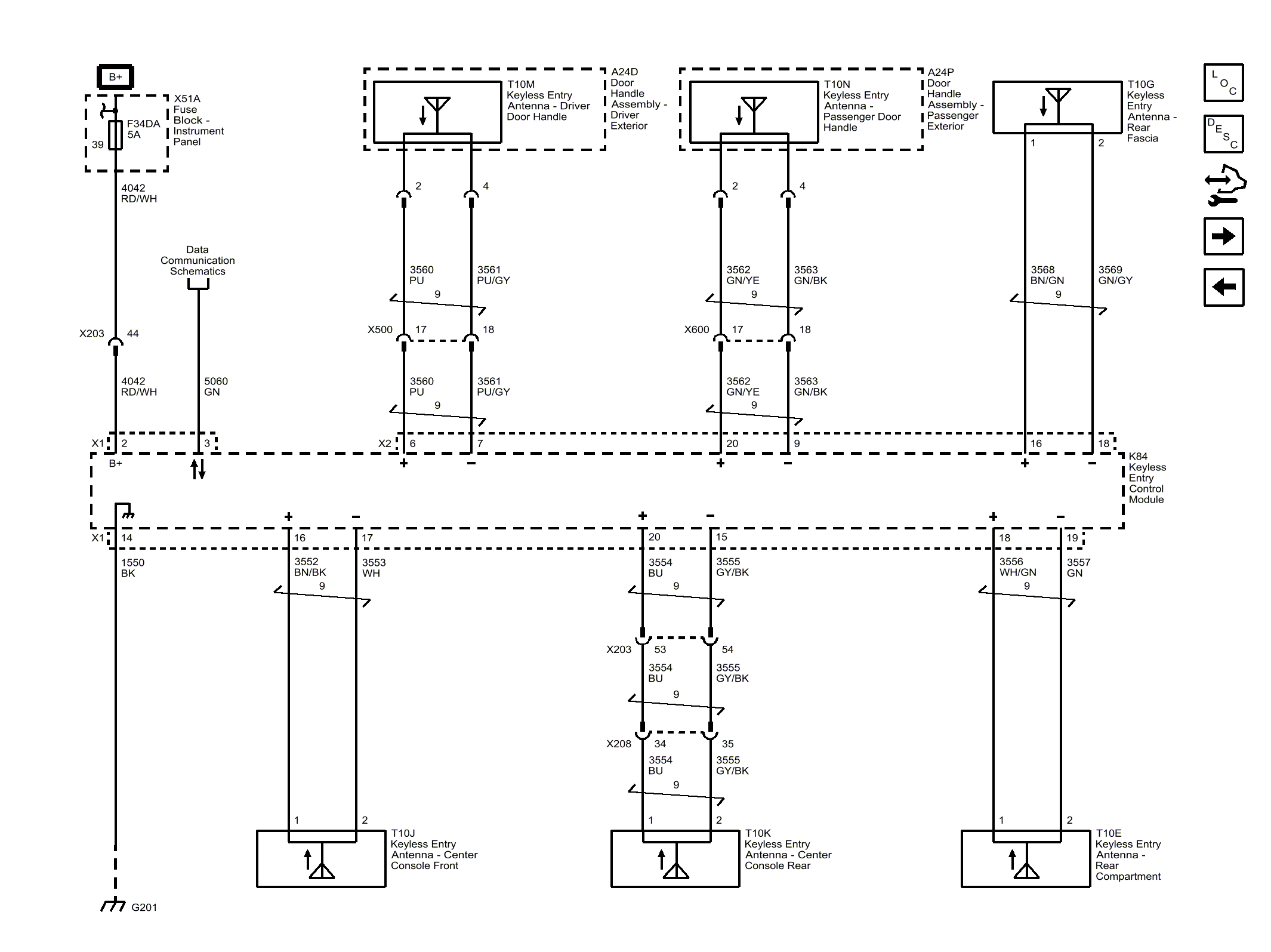

Fig 1: Keyless Entry - Passive and Keyless Start
GM4598384Courtesy of GENERAL MOTORS COMPANY
