Front Side Door Window Inner Sealing Strip Replacement

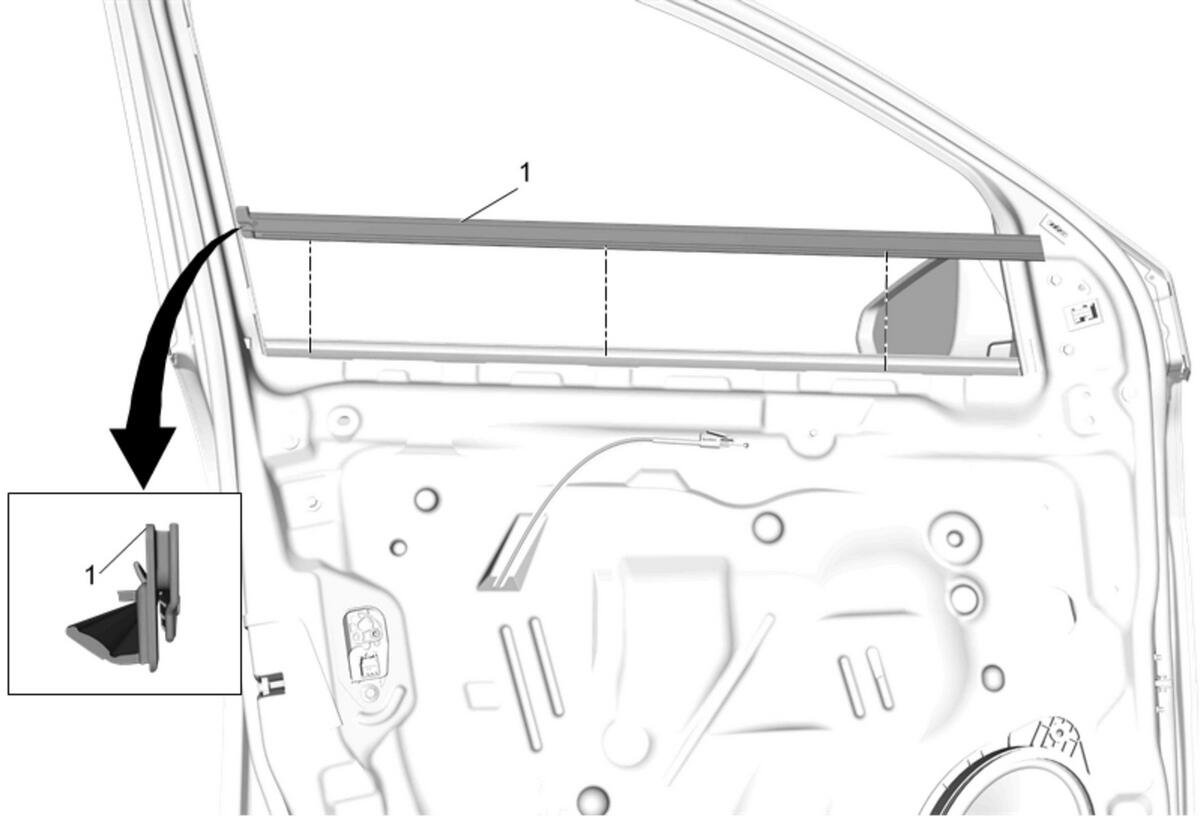

Fig 1: Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Side Door Window Garnish Molding. Refer to Front Side Door Window Garnish Molding Replacement (Equinox)Front Side Door Window Garnish Molding Replacement (Terrain)
1	Front Side Door Window Inner Sealing Strip Procedure Lift the front side door window inner strip off the pinch-weld flange. Press firmly to insert the front side door window inner strip back on the door flange. NOTE: Inspect the window for proper operation before installing the door trim.

Callout

Component Name

Front Side Door Window Inner Sealing Strip

Procedure

Lift the front side door window inner strip off the pinch-weld flange.
Press firmly to insert the front side door window inner strip back on the door flange.

NOTE:

Inspect the window for proper operation before installing the door trim.
