Removal Procedure

    Fig 1: Front Side Door Window Frame Rear Applique And Screws
    GM4576074Courtesy of GENERAL MOTORS COMPANY
  1. Remove Front Side Door Window Frame Rear Applique (3). Refer to Front Side Door Window Frame Rear Applique Replacement
    2. Fig 2: Front Side Door Window
    GM4574235Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front Side Door Window (1). Refer to Front Side Door Window Replacement
    3. Fig 3: Outside Rearview Mirror
    GM4579241Courtesy of GENERAL MOTORS COMPANY
  3. Remove Outside Rearview Mirror (1). Refer to Outside Rearview Mirror Replacement

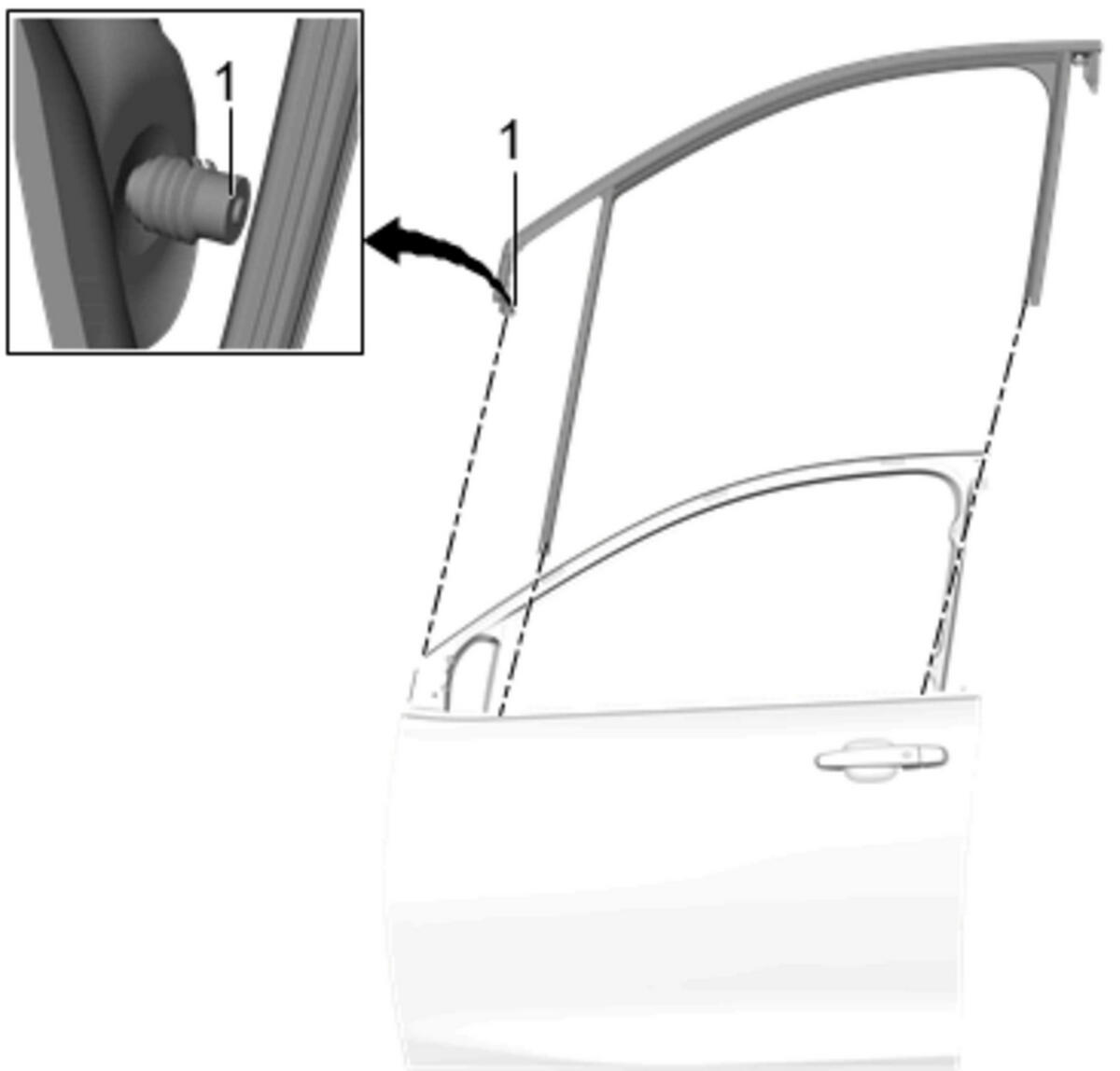

    4. Fig 4: Front Side Door Window Weatherstrip
    GM4579310Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Side Door Window Weatherstrip (1)
