Rear Side Door Window Frame Front Applique Replacement

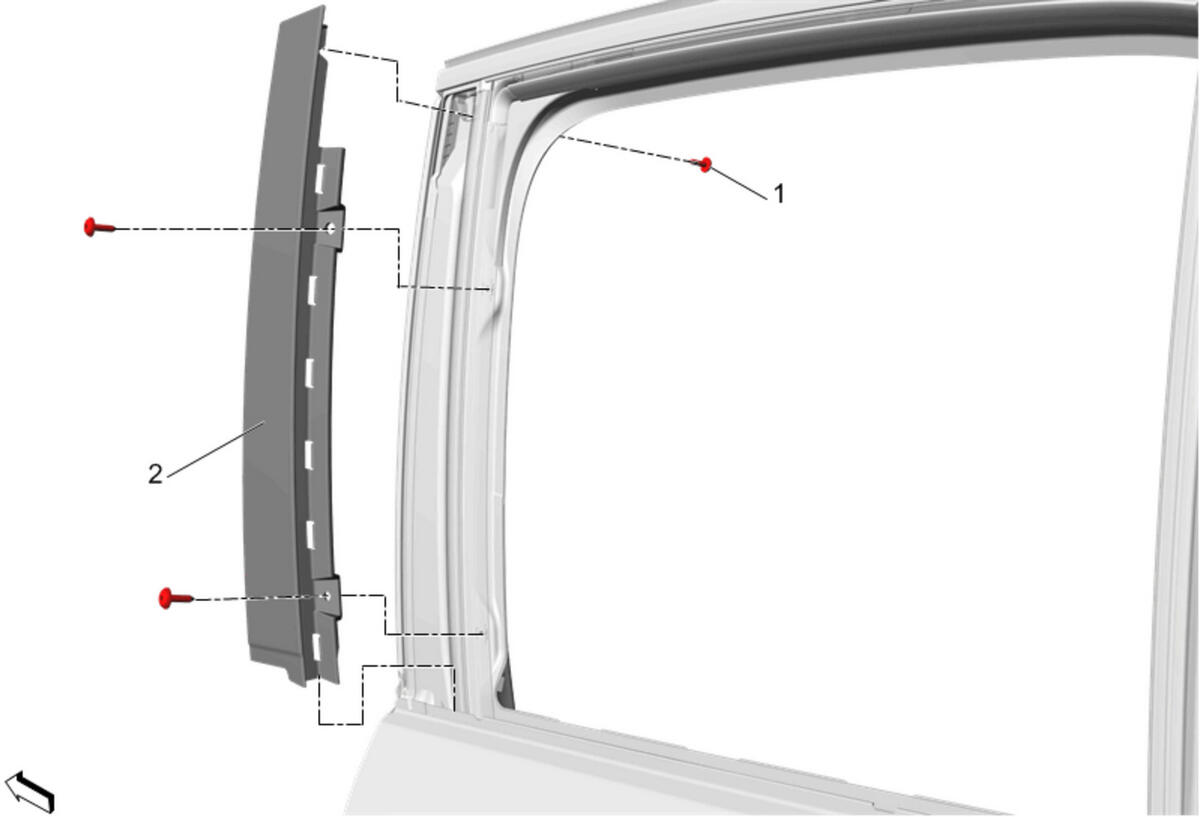

Fig 1: Rear Side Door Window Frame Front Applique And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Rear Side Door Window Belt Reveal Molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement (Equinox) Rear Side Door Window Belt Reveal Molding Replacement (Terrain) Remove Rear Side Door Window Inner Sealing Strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement (Equinox) Rear Side Door Window Inner Sealing Strip Replacement (Terrain) It is not necessary to completely remove the weatherstrip. Reposition the upper front edge of the rear side door weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement (Equinox) Rear Side Door Window Weatherstrip Replacement (Terrain)
1	Rear Side Door Window Frame Applique Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Rear Side Door Window Frame Front Applique Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface. Peel the protective film from the foam tape and install the rear applique to the vehicle.

Callout

Component Name

Preliminary Procedures

Rear Side Door Window Frame Applique Screw (Qty: 3)

CAUTION:

Tighten
1.5 N.m (13 lb in)

Rear Side Door Window Frame Front Applique

Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
Peel the protective film from the foam tape and install the rear applique to the vehicle.
