Rear Side Door Window Regulator Replacement

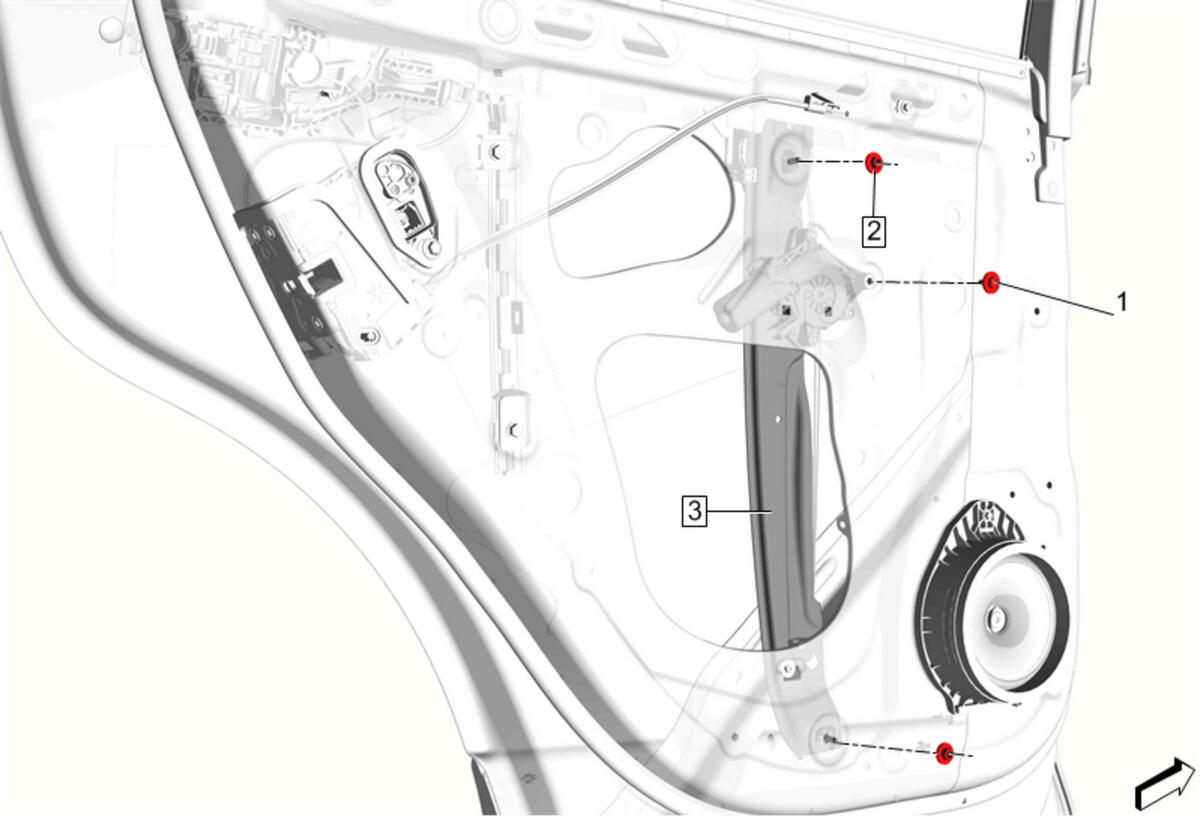

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Remove Rear Side Door Water Deflector. Refer to Rear Side Door Water Deflector Replacement (Equinox)Rear Side Door Water Deflector Replacement (Terrain) Using a suitable flat-bladed tool, release the window from the regulator sash retainer.
1	Rear Side Door Window Regulator Guide Bolt CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Rear Side Door Window Regulator Nut (Qty: 2) Tighten 11 N.m (97 lb in)
3	Rear Side Door Window Regulator Procedure Transfer components as necessary. Refer to Window Motor Programming - Express Function NOTE: Inspect the door window for proper operation before installing the door trim.
