Wireless Charging System Module Replacement (Equinox)

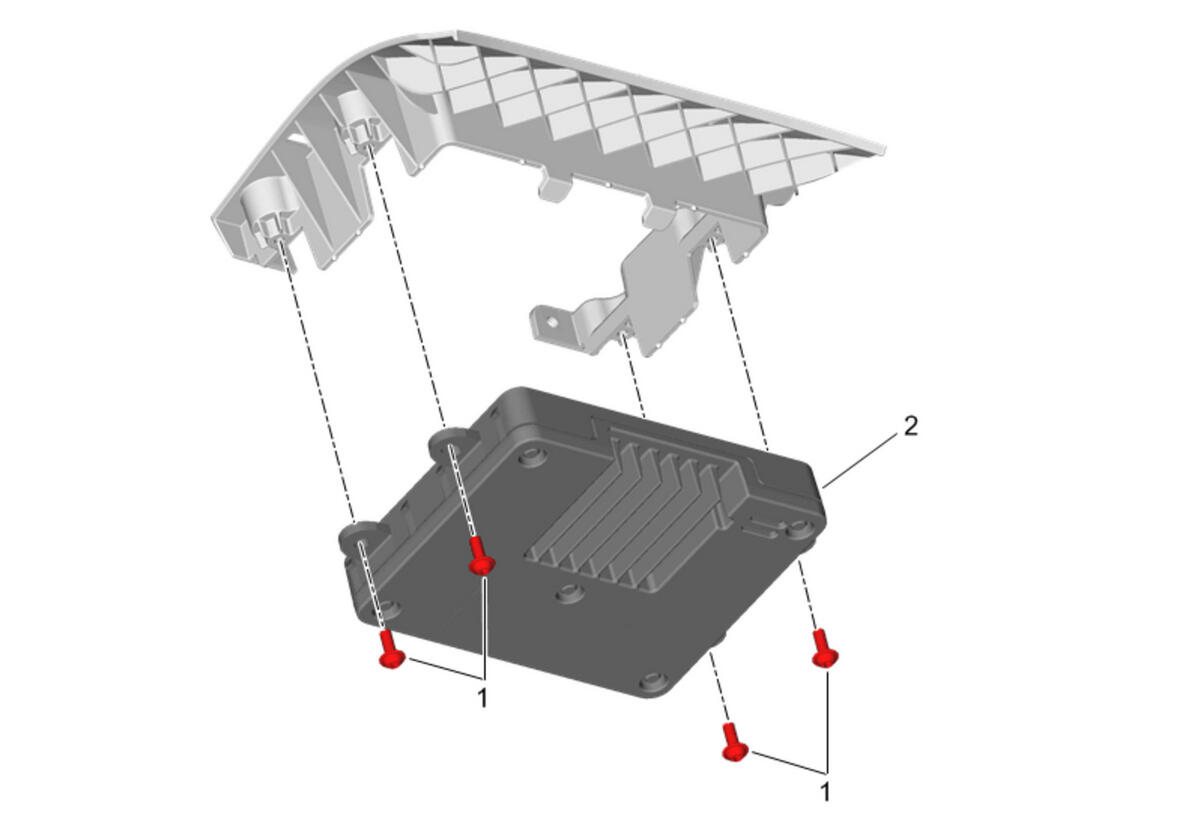

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Wireless Charging System Module Bracket Replacement (Equinox)
1	Wireless Charging System Module Bracket Bolt [4x] CAUTION: Fastener Caution 1 N.m (9 lb in)
2	Wireless Charging System Module
