Accelerator Pedal Assembly Replacement

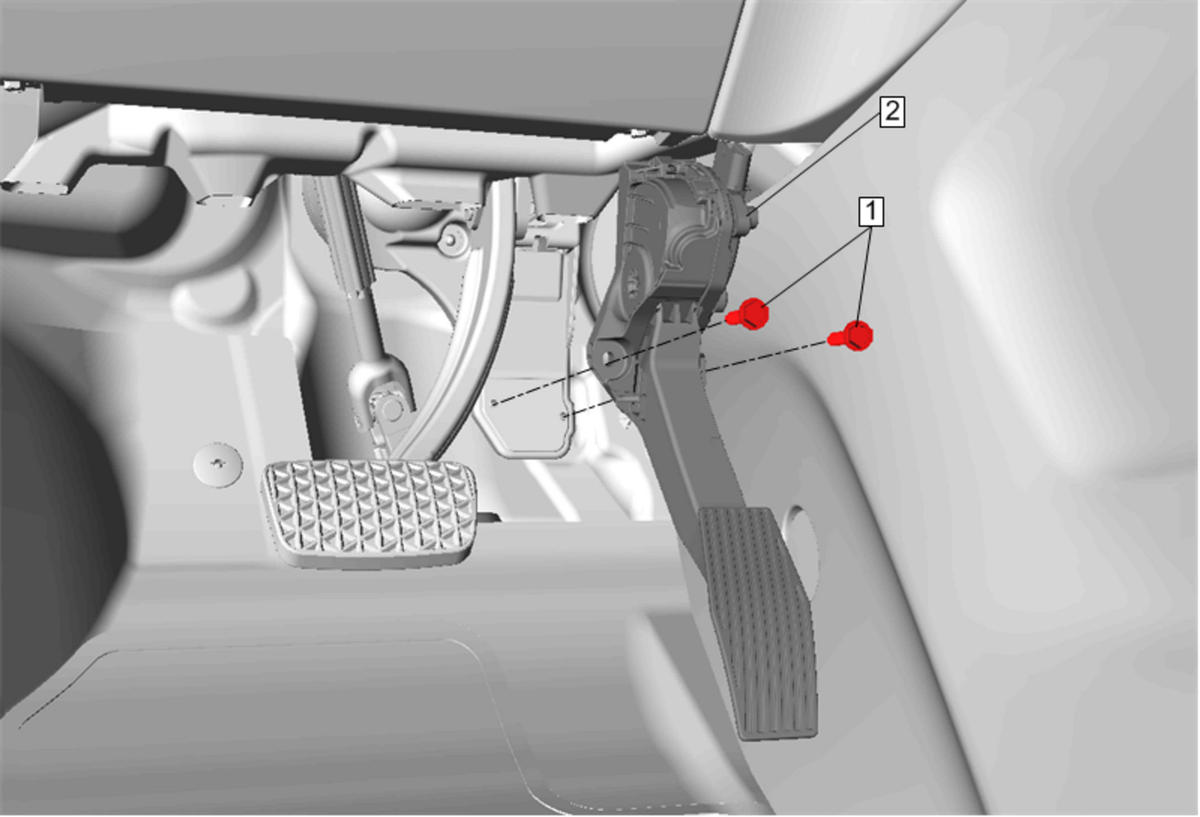

Fig 1: Accelerator Pedal Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Bolt[2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Accelerator Pedal Position Sensor Procedure  Disconnect the electrical connector.
