Air Cleaner Outlet Duct Replacement

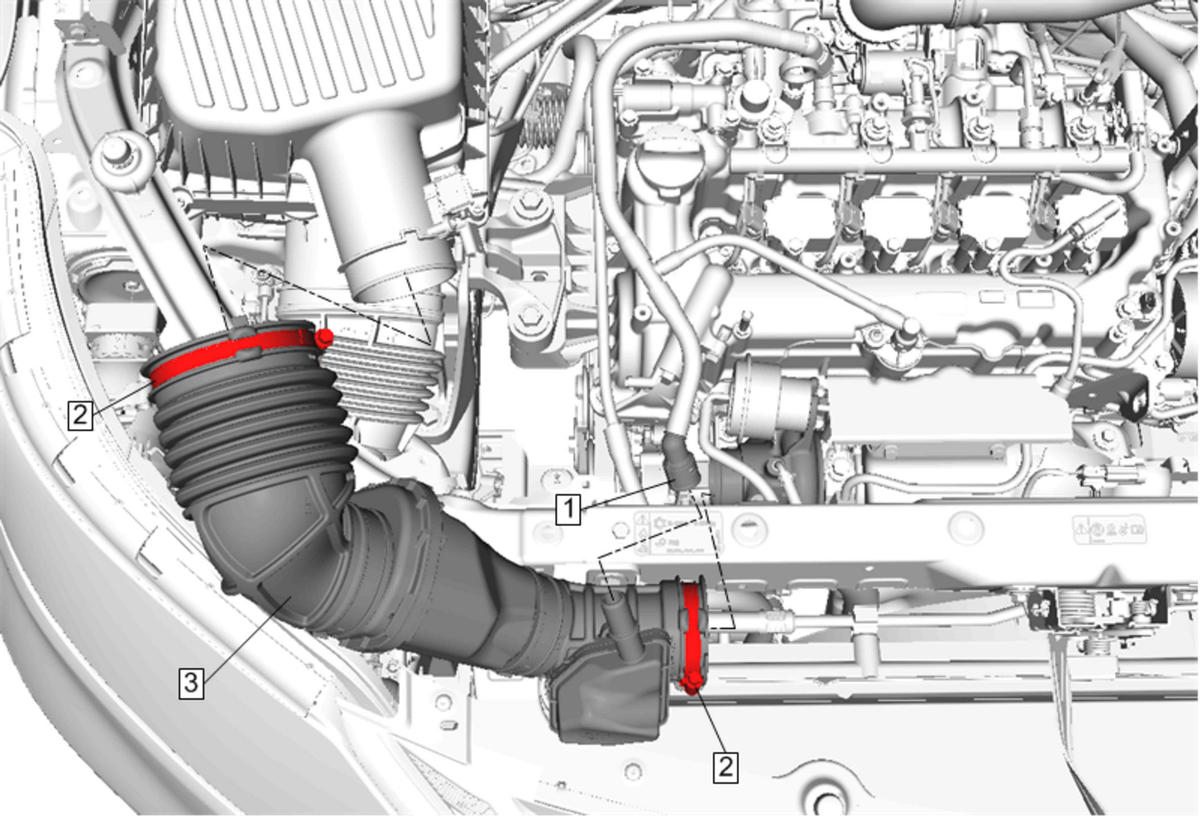

Fig 1: Air Cleaner Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Positive Crankcase Ventilation Tube Procedure  Disconnect Positive Crankcase Ventilation Tube@Air Cleaner Outlet Duct - Positive Crankcase Ventilation Tube Replacement (Fresh Air)Positive Crankcase Ventilation Tube Replacement (Foul Air)
2	Air Cleaner Outlet Duct Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten  3.5 N.m (31 lb in)
3	Air Cleaner Outlet Duct
