Installation Procedure

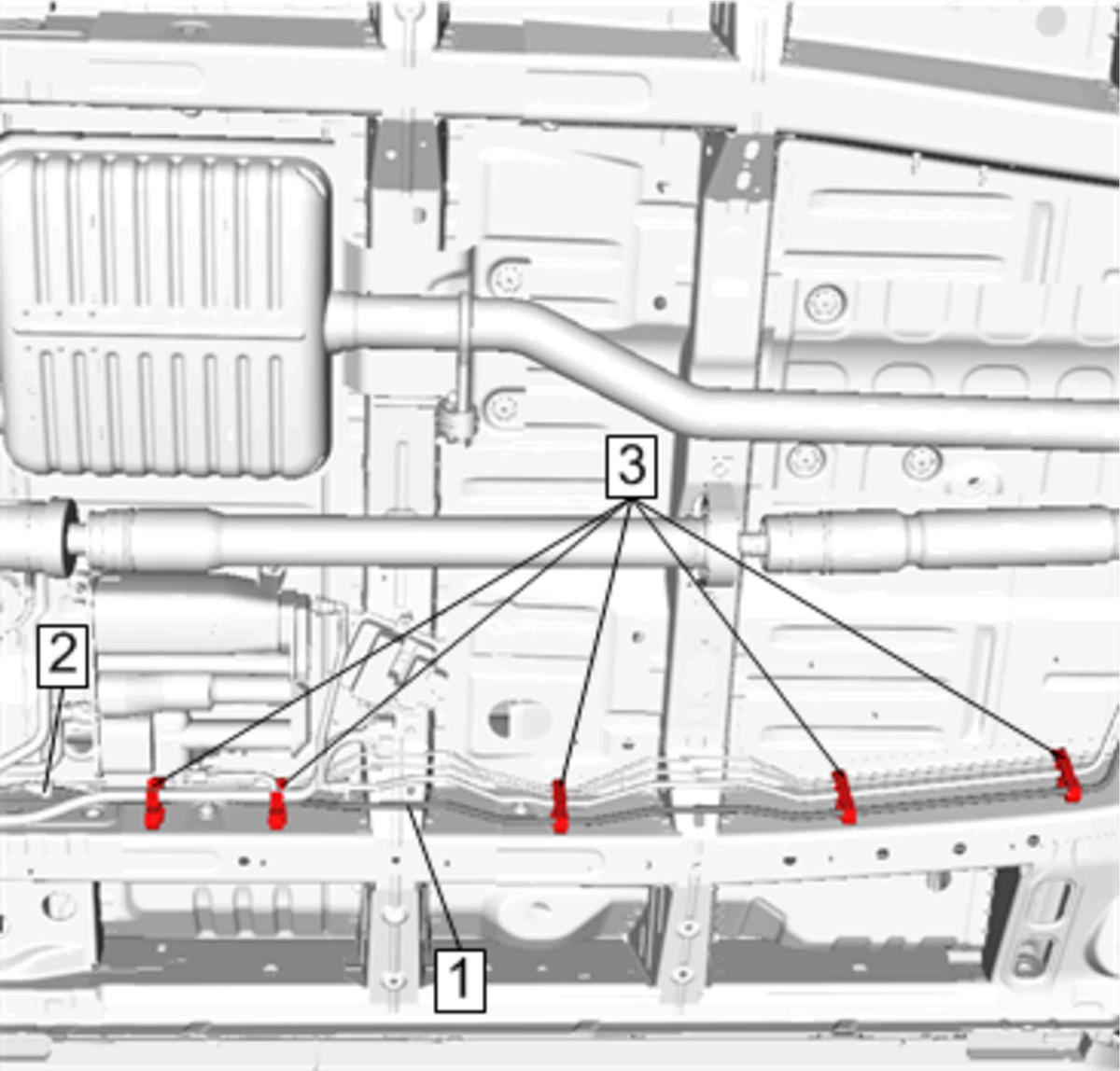

    Fig 1: Fuel Feed Pipe And Fuel Pump Fuel Feed Hose
    GM4599001Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Feed Pipe(1)@Retainer(3) - [5x]
  2. Connect Fuel Feed Pipe(1)@Fuel Pump Fuel Feed Hose(2) - Plastic Collar Quick Connect Fitting Service
  3. Install Underbody Rear Air Deflector - Underbody Rear Air Deflector Replacement (All Wheel Drive)

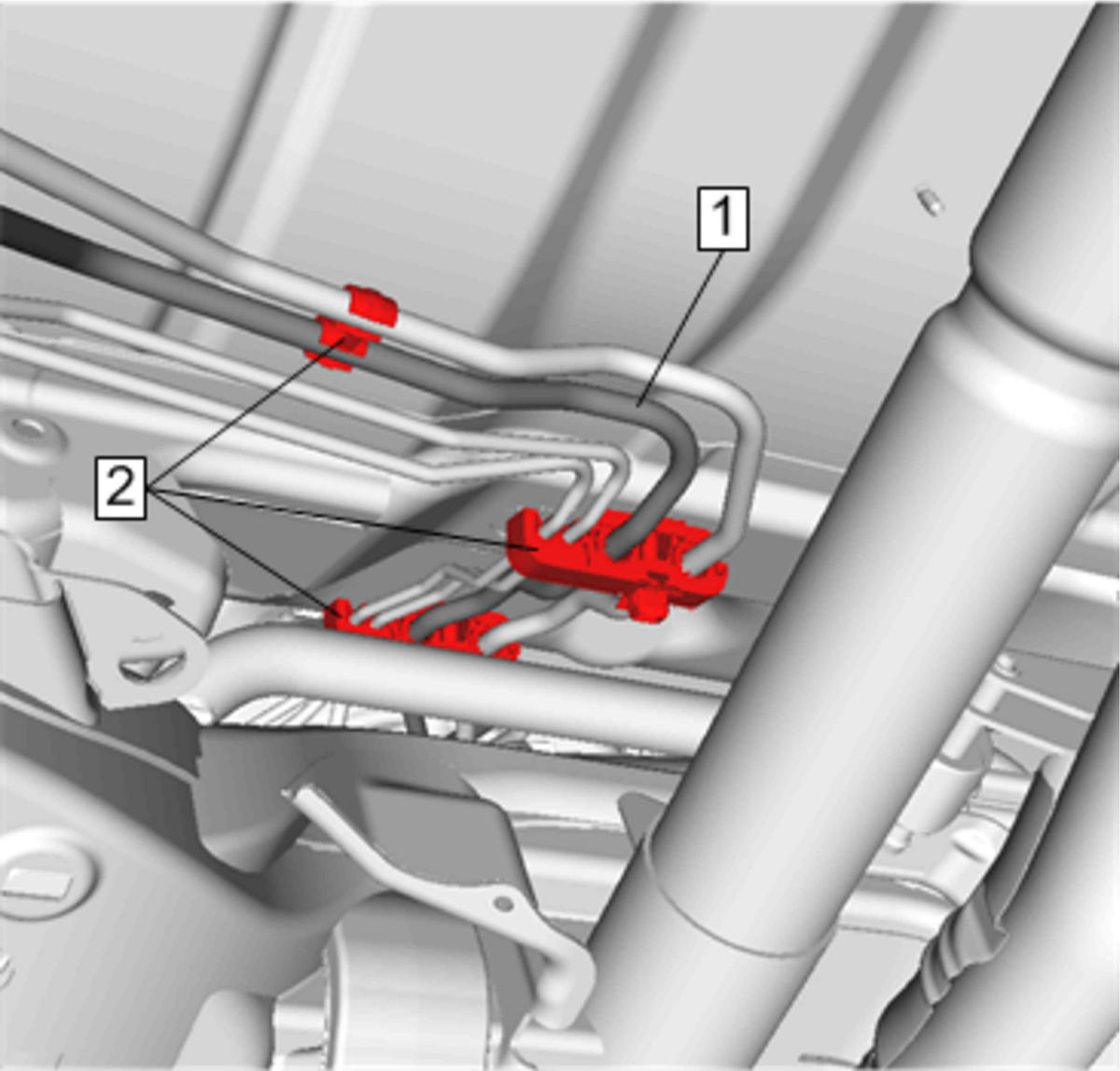

    4. Fig 2: Fuel Feed Pipe And Retainer
    GM4598996Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Feed Pipe(1)@Retainer(2) - [3x]

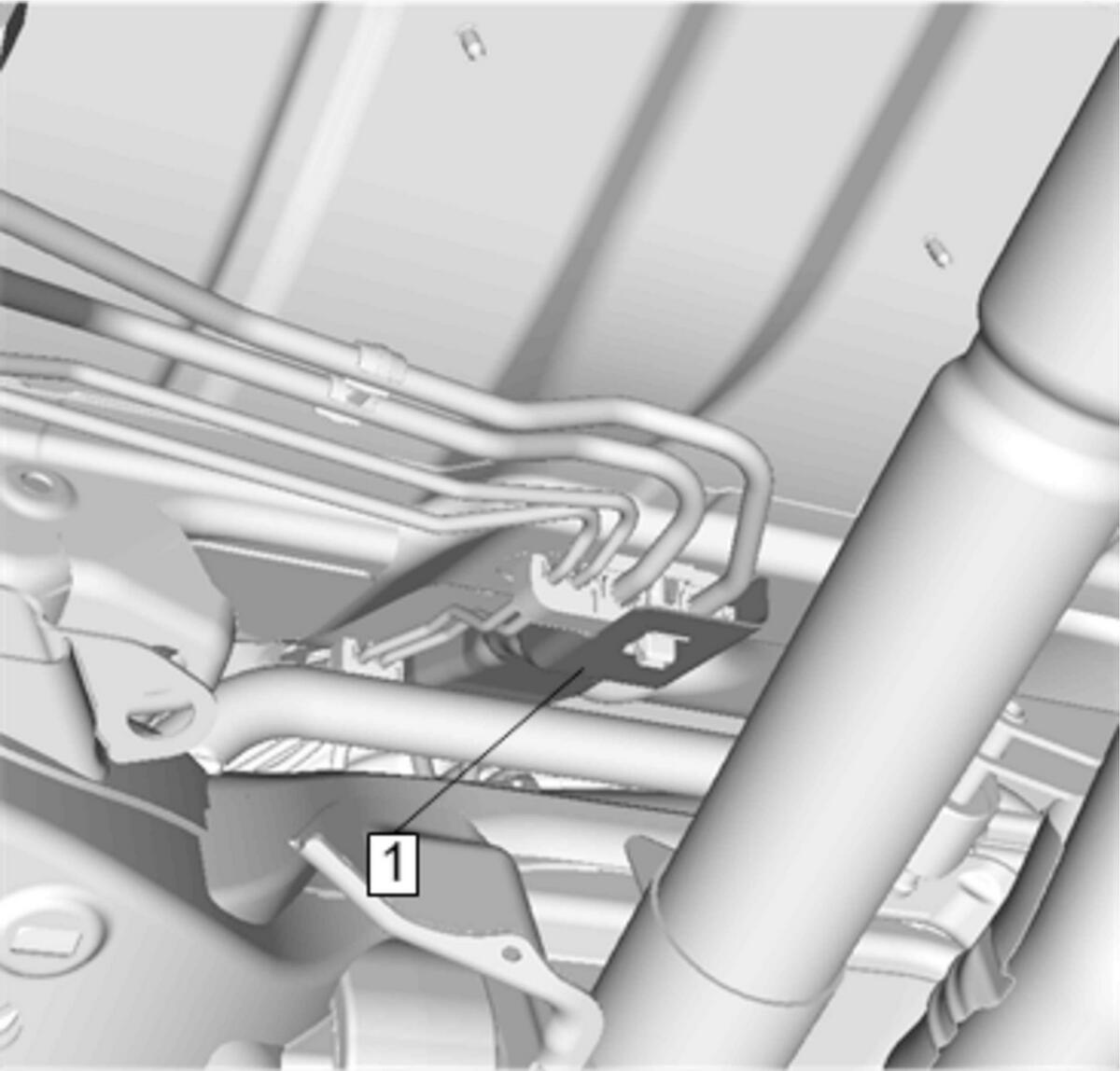

    5. Fig 3: Shield
    GM4598992Courtesy of GENERAL MOTORS COMPANY
  5. Install Shield (1)
  6. Lower the vehicle.

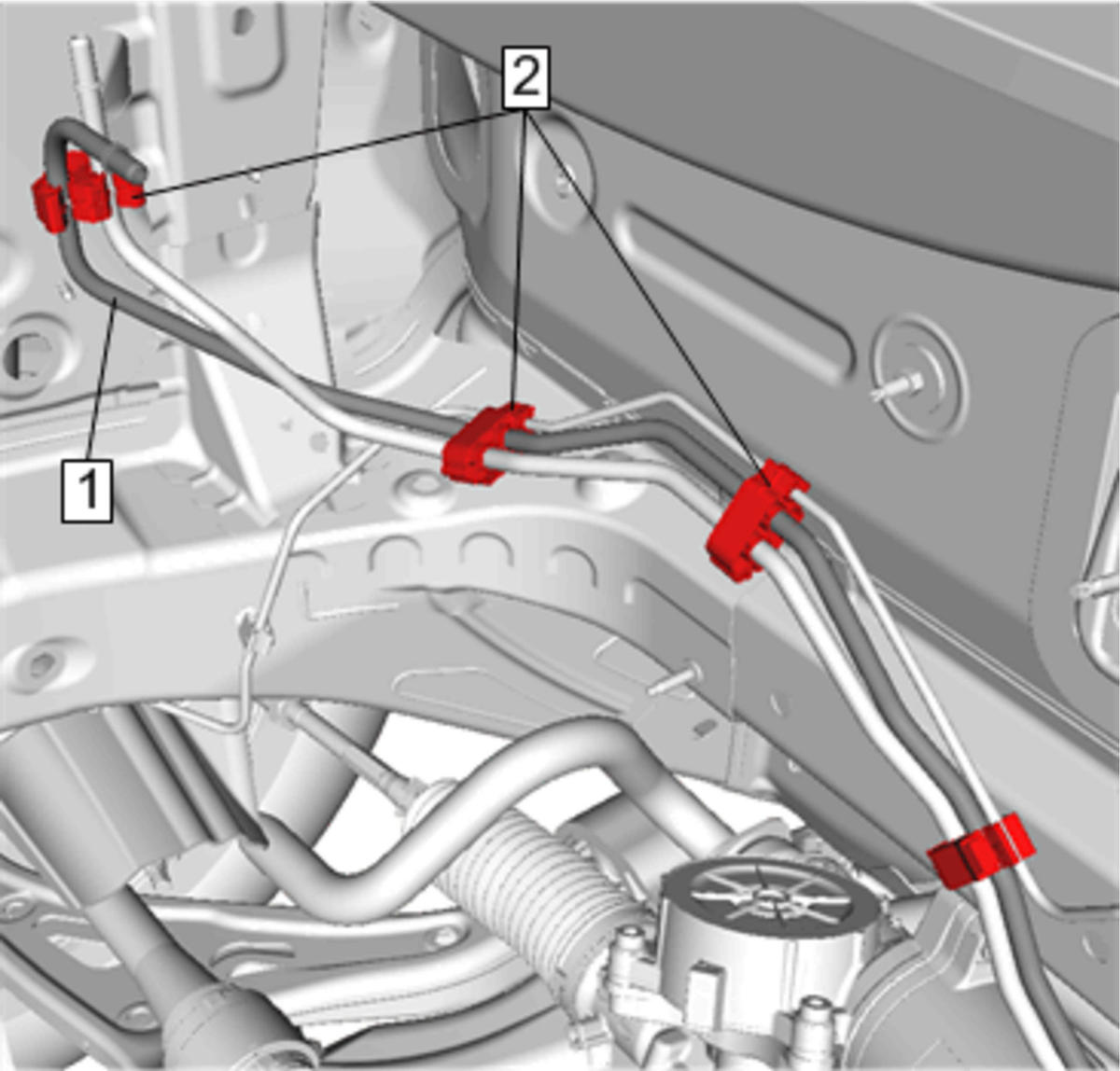

    7. Fig 4: Fuel Feed Pipe And Retainer
    GM4598958Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Feed Pipe(1)@Retainer(2) - [4x]
  8. Connect Fuel Feed Front Pipe -Fuel Feed Front Pipe Replacement
  9. Pressurize fuel system and check for fuel leaks.
