Fuel Tank Pressure Sensor Replacement (FWD)

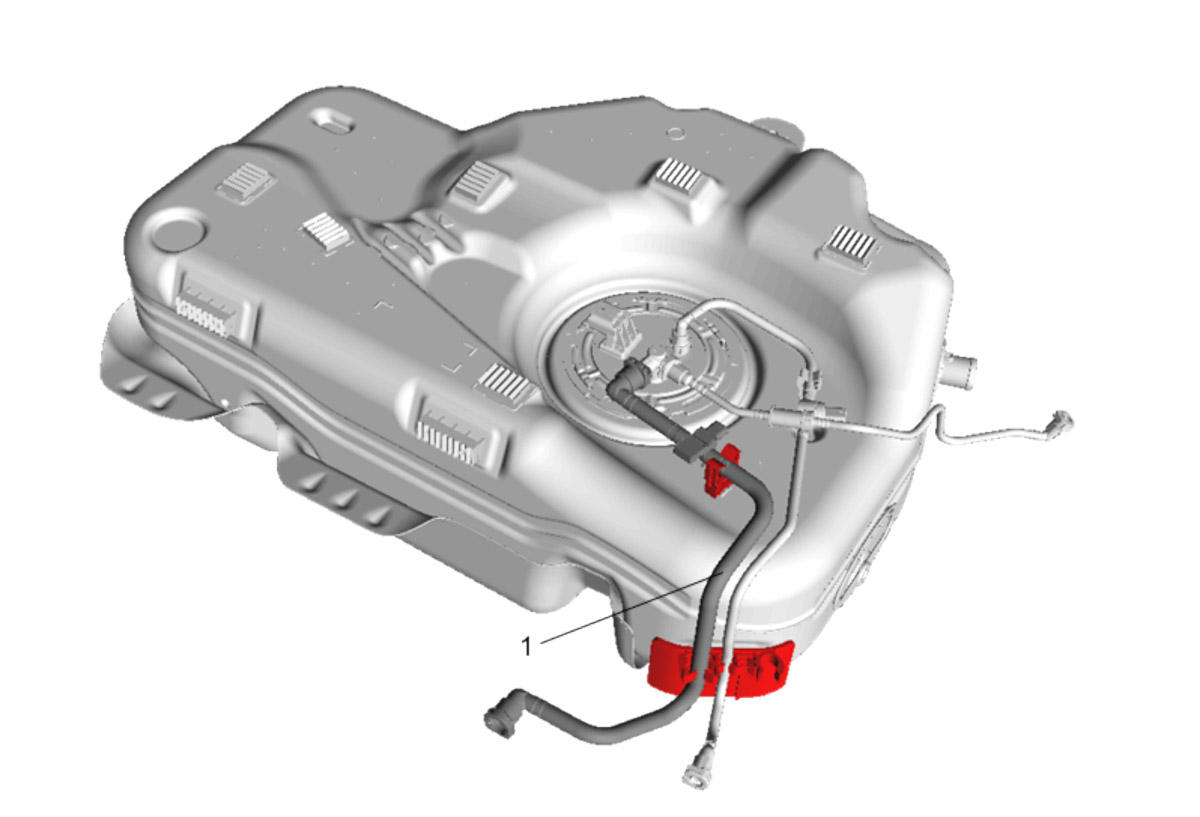

Fig 1: Fuel Tank Pressure Sensor (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Fuel Tank Replacement (FWD)
1	Fuel Tank Pressure Sensor Procedure Disconnect the electrical connector. Disconnect the evaporative emission canister vent hose and remove from retainers. Plastic Collar Quick Connect Fitting Service NOTE: Fuel tank pressure sensor is serviced as part of evap hose assembly.

Callout

Component Name

WARNING:

WARNING:

Fuel Tank Pressure Sensor

Procedure

Disconnect the electrical connector.
Disconnect the evaporative emission canister vent hose and remove from retainers. Plastic Collar Quick Connect Fitting Service

NOTE:

Fuel tank pressure sensor is serviced as part of evap hose assembly.
